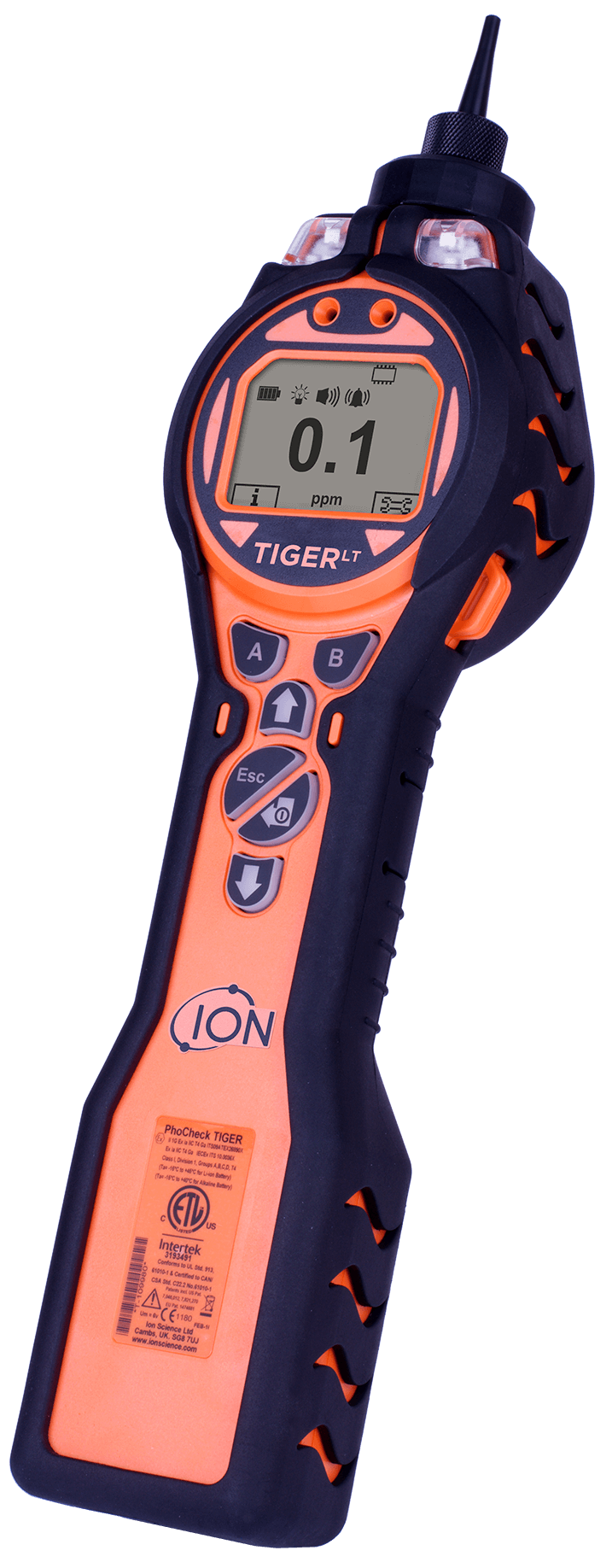

Description To ensure that the right VOCs are detected with the least amount of time spent out in the field, our Tiger LT Portable gas detector utilizes cutting-edge technology. Even when wearing thick gloves, the Tiger LT portable VOC gas detector is easy to use. It’s built to survive the toughest conditions thanks to its sturdy construction and removable rubber boot. The wide, bright backlit display makes it possible to see clearly in any light. Using a built-in flashlight, the device can be used in low-light environments. When the light is dim, the illuminated keypad comes on. The Tiger VOC gas detector and the Tiger Select for total aromatic chemicals, including benzene, are two more instruments in the Tiger portable VOC gas detector line. Features: ATEX Zone 0 IECEx 10.6 eV Krypton PID lamp Ion Science patented fence electrode Anti Contamination System Ergonomic design Lithium-Ion Battery Push To Log USB connection to PC Large Clear Keypad Bright LED and Vibration Alarms IP65 Specifications: Technical SpecificationValue/Information Minimum Resolution*0.1 ppm Maximum Reading**5,000 ppm Response TimeT90 < 2 seconds Accuracy*± 5% display reading ± one digit Linearity*± 5% display reading ± one digit Intrinsically Safe ApprovalsII 1G Ex ia IIC T4 Ga Tamb = – 15 °C ≤Ta ≤ 45 °C (with lithium ion battery pack) Tamb = – 15 °C ≤Ta ≤ 40 °C (with alkaline battery pack) ITS09ATEX26890X IECEx ITS 10.0036X 3193491 conforms to UL Std. 913, 61010-1 & Certified to CAN/CSA Std. C22.2 No. 61010-1. Class 1 Division 1. Approval for Groups A, B, C & D, T4 Battery LifeLi-ion: life up to 24 hours continual use Li-ion: life up to 24 hours continual use10.6 eV Krypton PID lamp Data LoggingPush-to-log, 128 zones, 80,000 data points CalibrationStandard calibration 100 ppm isobutylene Custom calibration capability AlarmFlashing LED and 95 dBA at 300mm (12”) audible sounder Selectable vibrating alarm Flow Rate≥ 220 ml/min in ambient conditions TemperatureOperating: -20 to 60 °C, -4 to 140 °F (non-Intrinsically Safe) Humidity: 0-99% RH (non condensing) ProtectionDesigned to IP65 (heavy rain) 1180 EMC tested to EN61326-1:2006, EN50270:2006 & CFR 47:2008 Class A Weight & Dimensions367 mm height (14.45”) 89 mm Width (3.54”) 60mm Depth (2.36”) Instrument weight 0.72 kg (1.56lb) All specifications are against isobutylene calibration at 20 °C, 90% RH and up to 3000 ppm unless otherwise stated. *Gas dependent. Certifications: ATEX Certificate IECEx Certificate Resources: Brochure Brochure Catalog Manual MSDS Sheet Isobutylene Gas MSDS Sheet Alumina Powder Customer Case Studies More Options For You: Ion Science Tiger Fire Investigation Kit Ion Science Tiger Handheld VOC Gas Detector
