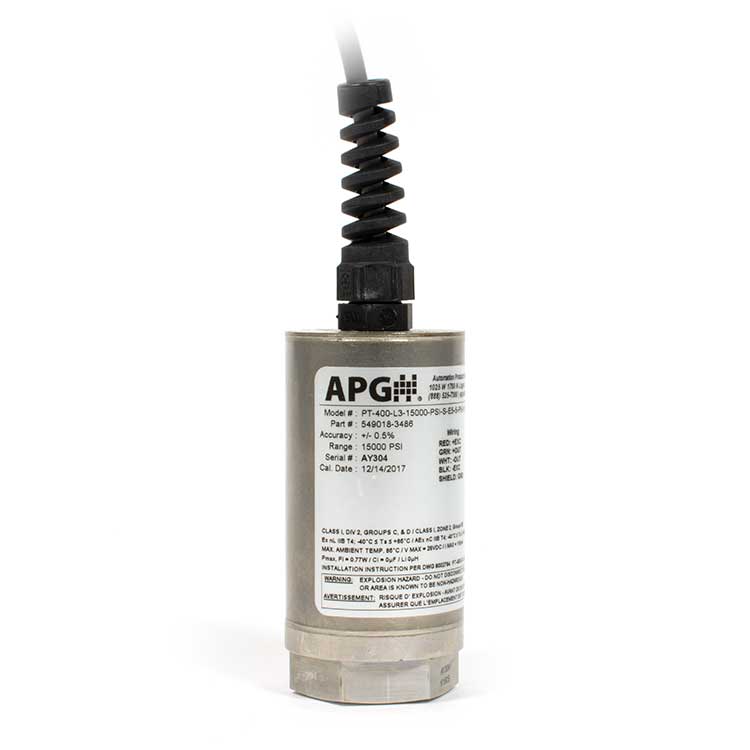

Description The PT-400 APG PT-400 Heavy Duty Pressure Transducer provides excellent accuracy and dependability across a large pressure range. The PT-400’s compact size, integrated electronics, wide working temperature range, ATEX and IECEx approval, and rugged construction make it the ideal instrument for static and dynamic pressure measurements with an amplified output signal. Features: ATEX Zone 0 Class I Division 1 Class I Division 2 IECEx Available ranges from VAC to 10,000 psi ≤0.25% of span (BFSL) accuracy with linearity and hysteresis Overpressure of 2x full scale Burst pressure of 3x FS or limit of process connection 4 to 20mA, 0 to 5VDC, 0 to 10VDC, or RS485 output Temperature-compensated from 0 to 130˚F Protected against reverse polarity Zero and Span adjustments Single seal for highest safety protection factor Versions: PT-400-L1-5-PSIG-E19-5-P0-N0-M1-S9: 0-5 PSI PT-400-L1-15-PSIG-E19-5-P0-N0-M1-S0: 0-15 PSI PT-400-L1-30-PSIG-E19-5-P0-N0-M1-S0: 0-30 PSI PT-400-L1-100-PSIG-E19-5-P0-N0-M1-S0: 0-100 PSI PT-400-L1-200-PSIG-E19-5-P0-N0-M1-S0: 0-200 PSI PT-400-L1-300-PSIG-E19-5-P0-N0-M1-S0: 0-300 PSI PT-400-L1-500-PSIG-E19-5-P0-N0-M1-S0: 0-500 PSI PT-400-L1-1000-PSIS-E19-5-P0-N0-M1-S0: 0-1000 PSI PT-400-L1-5000-PSIS-E19-5-P0-N0-M1-S0: 0-5000 PSI PT-400-L1-10000-PSIS-E19-5-P0-N0-M1-S0: 0-10000 PSI Built For Reliability In Tough Applications Ideal For Extreme Vibration In the world of heavy industry, there are a lot of big machines that can produce powerful vibrations. Big pumps, drilling rigs, large engines, you name it! The PT- 400 is built for durability in these tough applications. To ensure maximum reliability, we zero in on the details – like using the best steel and the strongest laser welds. We carefully tie all wires down using a variety of methods. All soldering is done by IPC J-STD-001 certified technicians. We even fill the entire housing with industrial potting to dampen vibrations. Can Take The Shock Vibrations aren’t the only benefit of this vehicle’s strong construction. The PT-400 handles shock well, too. That’s important in environments where things like water hammers or plain and simple rough handling are commonplace. Global Hazardous Area Certifications The PT-400 Heavy Duty Pressure Transducer is certified compliant with Class 1, Zone 0 requirements in North America, ATEX in Europe, and IECEx for just about anywhere else. So it’s ideal for markets like the Oil & Gas or Water and Wastewater industries that deal with flammable gases. Typical Applications: Fracking Acidizing Cementing Wellhead pressure Pump monitoring Wastewater treatment Gas compressors Engine compression Gas pressure chambers Tank level Chemical processing Specifications: Performance Accuracy (linearity, hysteresis, & repeatabliity):±0.25% of full scale (BFSL) (1% for ≤ 1 psi) Standard Pressure Ranges:0 - 30,000 psi Stability - One Year Zero Drift:17-4 / 316L: <±0.5% FS Overpressure:2x full scale Burst Pressure:up to 3x full scale or limit of process connection Frequency Response:Less than 5ms Connectivity Output:4-20 mA (2 wire, loop-powered) 0-5, 0.5-4.5, 1-5, 0-10 VDC (non-isolated 3 wire) Modbus/RTU (RS-485) with temp. output Environmental Standard Compensated Temp.: ≤ 10 psi:0º - 60ºC / 32º - 140ºF 10 < x ≤ 1000 psi:-10º - 70ºC / 14º - 158ºF > 1000 psi:-17º - 54ºC / 0º - 130ºF Storage Temp:-40º - 82ºC / -40º - 180ºF Operating Temp:-40º - 85ºC / -40º - 185ºF Physical Weight:10 oz. (283 g) typical Wetted Materials:316L Stainless Steel (≤ 1,000 psi) 17-4 Stainless Steel (> 1,000 psi) Incoloy (> 10,000 psi) Incoloy conforms to NACE MR-01-75 and ISO 15156-3 Electrical Supply Voltage:4-20 mA, 0-5 / 0.5-4.5 / 1-5 VDC: 9-28 VDC 0-10 VDC: 12.5-28 VDC Modbus/RTU (RS-485): 9-28 VDC Electrical Connection:Pigtail with cable or connector Electrical Protection:Protected against reverse polarity, surge per IEC 61000-4-5 Certification CSA/cCSAus Contract #237484Ambient: -40º to 85ºC Max. Working Pressure: 10,000 psi Single Seal 0-5 VDC, 0-10 VDC, 4-20mA IS: Class I, Div. 2, Groups C & D; Ex nL IIB T4 Class I, Zone 2; AEx nL IIB T4 IS: Class I, Div. 1, Groups C & D; Ex ia IIB T4 Class I, Zone 0; AEx ia IIB T4 ATEXMax. Working Pressure: 10,000 psi 4-20 mA Ex II 1G Ex ia IIB T4 Ga IECExMax. Working Pressure: 10,000 psi 4-20 mA Ex ia IIB T4 Ga Certifications: ATEX Declaration CSA Certificate IECEx Certificate Resources: Datasheet Install Guide User Guide More Options For You: APG MNU IS Modbus Ultrasonic Level Sensor
