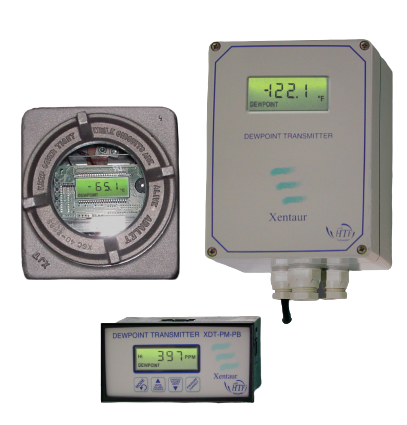

Description The Xentaur digital dew point transmitter is a compact, simple, and dependable device that continuously monitors air dryer performance, compressed air quality, and dry gas moisture down to -100°C (-148°C) ambient dewpoint levels. The dew point transmitter is controlled by a menu-driven user interface that includes a customized LCD display with a backlight and four pushbuttons. The pushbuttons may be used to show a variety of various engineering units, including dew point in degrees Celsius, degrees Fahrenheit, ppmv, g H2O/M3, and pounds H2O/million scf. Features: Class I Division 1 Groups A, B, C, & D; Class II Groups E, F, & G HTF™ Sensor Technology SpanCheck™ in the Field Multiple Housing Configurations Very Low Drift Long Sensor Life APPLICATIONS Monitoring & Control of Air Dryers Plastic Dryers Glove Boxes Welding Gases Laser Gases Petrochemical Feedstock Gases Natural Gas Processing, Transportation & Distribution Clean Room Environments Heat Treating Furnaces Specification: Transmitter Sensor type:High capacitance Al2 O3 Input Resolution:0.1°C dewpoint Indicators:LCD with backlight, 3.5 digits and custom legends for units and mode, audio alert Engineering units:Dewpoint in °F and °C, ppmv, g H2 O/m3 , lbs H2 O/mm scf Controls:4 push buttons, all settings stored in EEPROM Output options:4-20mA, 0-24mA or voltage outputs, linear to selected engineering units, programmable span and range, 0.1°C dewpoint resolution. RS-232 , baud rate 9600, resolution 0.1°C dewpoint Isolation:Sensor is isolated from the power supply, analog output and RS-232 Alarm relays option:Two programmable alarm relays with programmable variable hysteresis, rated at 10A @240V. Failure indication programmable to trigger alarm relays. Power requirements: 100 - 240 VAC, 50 or 60 Hz, autoranging or by order 12VDC or 15-30VDC 0.5A Connections:Pluggable screw terminal block Enclosure:Polycarbonate, Nema 4/4x Dimensions W-12cm x H-16cm x D-9cm (W-4.7” x H-6.3” x D-3.5”); DIN 43700 - 8cm (3”) deep Temperature range of electronics:-10° to 50°C (14° to 122°F) Optional Features:a) Medical Breathing Air Monitoring and Alarm Option, complies with the recommendations of NFPA 99, 1996 edition b) On-board battery backed real-time clock option, facilitating Scheduled Timer Activated Single Point Self Calibration/Verification procedure for sample systems equipped with an electrically actuated switchover valve. Warranty:1 year for full workmanship and defective parts. Resources: XDT Series – Brochure
