Intrinsically Safe Handheld Barcode Scanner Bartec BCS3600ex-IS

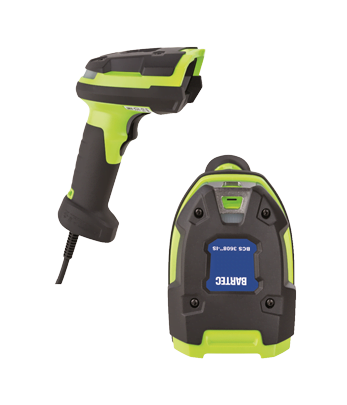

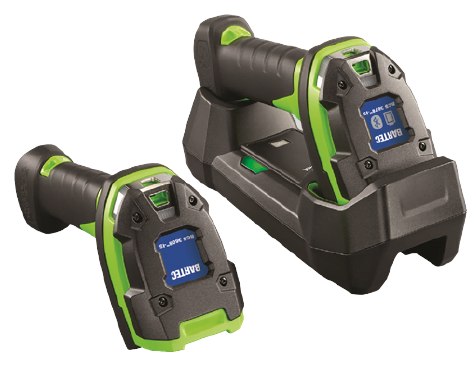

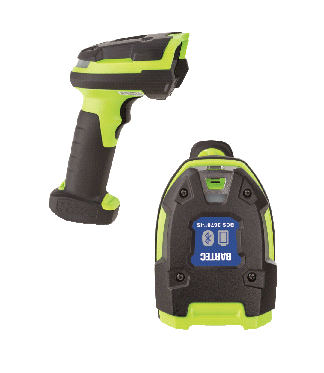

Description Intrinsically Safe Handheld Barcode Scanner Bartec BCS3600ex-IS Introducing the Bartec BCS3600ex-IS series, a cutting-edge intrinsically safe handheld barcode scanner designed for hazardous areas, delivering unparalleled performance in scanning 1D/2D barcodes, photos, and documents. Based on ZEBRA’s DS3608-HP/DS3678-HP Ultra-Rugged Scanners, this series offers both corded (BCS3608ex) and cordless (BCS3678ex) Bluetooth versions, engineered for harsh environments worldwide. These scanners go beyond traditional barcode scanning, capturing diverse business information, from OCR to handling documents and photos, streamlining everyday processes. Seamlessly integrating industrial applications into hazardous areas, the BCS3600ex series sets a new standard for reliability, speed, and accuracy in scanning functionality. The ATEX and IECEx Zone 1/21 approved BCS3600ex-IS ensures compliance with the highest safety standards, while the Bluetooth-enabled BCS3678ex-IS is approved for Class I, II, III Division 1, expanding its usability across various hazardous environments. This series represents the epitome of dependable, fast, and accurate scanning, establishing unprecedented standards in the market. Features: ATEX ZONE 1/21 Outstanding scan performance with 1D/2D barcodes in every environment Ultra-rugged – the toughest design in its class A Bluetooth model in a class of its own for superior cordless freedom Strong replaceable battery Up to seven devices at one cradle (BT version) Outstanding Performance: Achieve high-speed scanning of various barcodes, including damaged ones. Capture photos for archiving, seamlessly transferring them to the host PC. Ultra-Rugged Design: Developed from ZEBRA’s DS3608 and DS3678, these scanners are designed for explosive atmospheres, offering corded and cordless options. Renowned as the most robust scanners on the market. Unrivaled Handling Simplicity: Easily configurable with user-friendly tools. Remote configuration, data formatting, and more contribute to a simplified user experience. Outstanding Scan Performance: The advanced imager reads 1D and 2D barcodes faster with a 30% larger working area. Ensures successful first-attempt scans, even for damaged or under shrink-wrap barcodes. More Than Just Barcodes: OCR, Photos, and Documents: ZEBRA’s intelligent document capture enhances photo readability. Supports various OCR typefaces for fast data transfer via the base station. Simple Handling with ZEBRA Tools: Use original ZEBRA tools for remote configuration, firmware upgrades, and data formatting for backend systems. Capture and Processing of Up to 20 Barcodes Simultaneously (MDF): MDF capability streamlines the transmission of uniquely formatted data to backend systems. Faster Pick-List Processing: Easily select and read individual barcodes from any picklist, enhancing task efficiency. Bluetooth Model for Superior Cordless Freedom: Bluetooth 4.0 (Low Energy) ensures a fast, efficient connection. The rugged cradle features an IP65 class of protection, with charging contacts that withstand 250,000 insertions. The ‘battery charge gauge’ and Bluetooth status LED provide easy monitoring.   Intrinsically Safe Handheld Barcode Scanner Bartec BCS3600ex-IS corded version Ideal for stationary applications in potentially explosive atmospheres, the scanner excels in collecting data from 1D barcodes, 2D barcodes, postcodes, and OCR. The rugged version incorporates highly developed ergonomic and functional features essential for industrial applications, while the corded version necessitates a universal supply module to ensure ex-compliant voltage supply and data communication (Photo transfer to the host PC is only possible via the base station). SPECIFICATION: User environment Operating temperature(-)20 °C to 50 °C (-4 °F to 122 °F) Storage temperature(-)40 °C to 70 °C (-40 °F to 158 °F) Relative humidity5 % ~ 95 % (condensing) Protection class (IEC 60529)IP 65 Insensitivity to ambient light0 to 108.000 lux (in direct sunlight) Drop SpecificationSurvives multiple drops from 3 m (118.1 inch) onto concrete Tumble Specification7.500 tumbles from a height of 1 m (39.4 inch) Technical data Size (H x W x D)185 mm x 76 mm x 132 mm (7.3 inch x 3.0 inch x 5.2 inch) Weight (without cable)approx. 382 g (approx. 0.84 lb) ColorIndustrial green MaterialPolycarbonate (PC) NotificationDirect decoding display, LEDs, signal tone, vibration Operating current (full operation)254 mA (typical) Resting current (stand-by85 mA (typical) Input voltageapprx. 8.2 V Max. input power2.06 W Max. input current254 mA Power supplyusing universal supply module from BARTEC Supported interfacesHand-held scanner to the universal supply module RS232 (TTL-Pegel) Illumination2 x LED, warm white Barcode capture– SE4750-HP: 1D/2D High-performance scanner omnidirectional – Available data capture options/tools: see table – Supported symbologies/barcodes: see table Programming cable USB (from PC to hand-held scanner)available as an option; for the use of ZEBRA Software Tools such as 123Scan Utility to configure hand-held scanners in the safe area on a PC Programming manualPermits programming by scanning barcodes. Available at: automation.bartec.de/indexE.htm or zebra.com 123Scan UtilityProgramming of scanner parameters via USB, firmware upgrades, provision of scanned barcode data and printing of reports. Available at: zebra.com – Programming via the universal supply module is not supported. – Programming cable (Type 17-A1Z0-0020) is required in non-hazardous areas. Explosion protection Marking ATEXEx II 1G Ex ia ma op is IIC T4 Ga Ex II 1D Ex ia ma op is IIIC T135°C Da IP 64 CertificationEPS 18 ATEX 1 199 X Marking IECExEx ia ma op is IIC T4 Ga Ex ia ma op is IIIC T135°C Da IP 64 CertificationIECEx EPS 18.0100X Technical data Data Capture DNAA technology platform of highly intelligent firmware, software and utilities . It perfectly supports the offered hardware solution to personalize the customer solution. For more information on these Zebra-only features, please visit zebra.com/datacapturedna Warranty1 year Service contractsCOMFORT and ALL-IN Scope of deliveryHand-held scanner BCS3608ex-IS – Quick Start Guide Also required(not included in the delivery) – Universal supply module – Connecting cable or HMI limiting cable for data transmission Accessories: BCS3600ex-IS Accessories Intrinsically Safe Handheld Barcode Scanner Bartec BCS3600ex-IS Bluetooth version Perfect for mobile applications in potentially explosive atmospheres, the scanner excels in collecting data from 1D barcodes, 2D barcodes, postcodes, and OCR (Photo transfer to the host PC is only possible via the base station). The rugged version incorporates all highly developed ergonomic and functional features essential for industrial applications. Additionally, the Bluetooth version provides multiple options for data transfer via Bluetooth in a “Single Point-to-Point” configuration.   SPECIFICATION: Explosion protection Marking ATEXEx II 1G Ex ia ma op is IIC T4 Ga Ex II 1D Ex ia ma op is IIIC T135°C Da IP 64 CertificationEPS 17 ATEX 1 177 X Marking IECExEx ia ma op is IIC T4 Ga Ex ia ma op is IIIC T135°C Da IP 64 CertificationIECEx EPS 17.0090X User environment Operating temperaturee -20 °C to 50 °C (-4 °F to 122 °F) Charging temperature0 °C to 45 °C (32°F to 113°F) Storage temperature (without battery-40 °C bis 70 °C (-40 °F to158 °F) Relative humidity5 % ~ 95 % (condensing) Protection class (IEC 60529)IP 65 Insensitivity to ambient light0 to 108.000 lux (in direct sunlight) Drop SpecificationSurvives multiple drops from 3 m (118.1 inch) onto concrete Tumble Specification7.500 tumbles from a height of 1 m (39.4 inch) Technical data Size (H x W x D)185 mm x 76 mm x 142 mm (7.3 inch x 3.0 inch x 5.6 inch) Weight (with battery)approx. 491 g (approx. 1.08 lb) ColorIndustrial green MaterialPolycarbonate (PC) NotificationDirect decoding display, LEDs, signal tone, vibration BatteryLithium-ion 3.6 V/2800 mAh (10.08 Wh) Charge only with the following accessories: Base station (Type 17-A1Z0-0014) or 4-slot battery charging station (Type 17-A1Z0-0013) BluetoothBluetooth Class 1, Version 4.0 (LE), serial interface , USB-HID and USB-SPP via base station and USB-SPP via universal supply module Bluetooth Radio range (direct visual connection outdoors - laboratory values) via universal supply module Bluetooth, base station or Bluetooth-enabled device Class 1: up to 100 m (300ft.), Class 2: up to 10 m (30 ft.) Data rate: 3 Mbit/s (2.1 Mbit/s) for classic Bluetooth, 1 Mbit/s (0.27 Mbit/s) for Low Energy Illumination2 x LED, warm white Barcode capture– SE4750-HP: 1D/2D High-performance scanner omnidirectional – Available data capture options/tools: see table – Supported symbologies/barcodes: see table Programming cable USB (from PC to hand-held scanner)available as an option; for the use of ZEBRA Software Tools such as 123Scan Utility to configure hand-held scanners in the safe area on a PC Programming manualPermits programming by scanning barcodes. Available at: a 123Scan UtilityProgramming of scanner parameters via USB, firmware upgrades, provision of scanned barcode data and printing of reports. Available at: zebra.com – Programming via the universal supply module is not supported. – Programming cable (Type 17-A1Z0-0020) is required in non-hazardous areas. Technical data Data Capture DNAA technology platform of highly intelligent firmware, software and utilities . It perfectly supports the offered hardware solution to personalize the customer solution. For more information on these Zebra-only features, please visit zebra.com/datacapturedna Warranty1 year Service contractsCOMFORT and ALL-IN Scope of delivery– Hand-held scanner BCS3678ex-IS – Battery – Special tool for lock nut – Quick Start Guide Also required(not included in the delivery) – Battery charging station or base station for charging – Universal supply module or base station connecting cable for data transmission AccessoriesBCS3600ex-IS Accessories  Resources: Intrinsically Safe Handheld Barcode Scanner Bartec BCS3600ex-IS Datasheet
