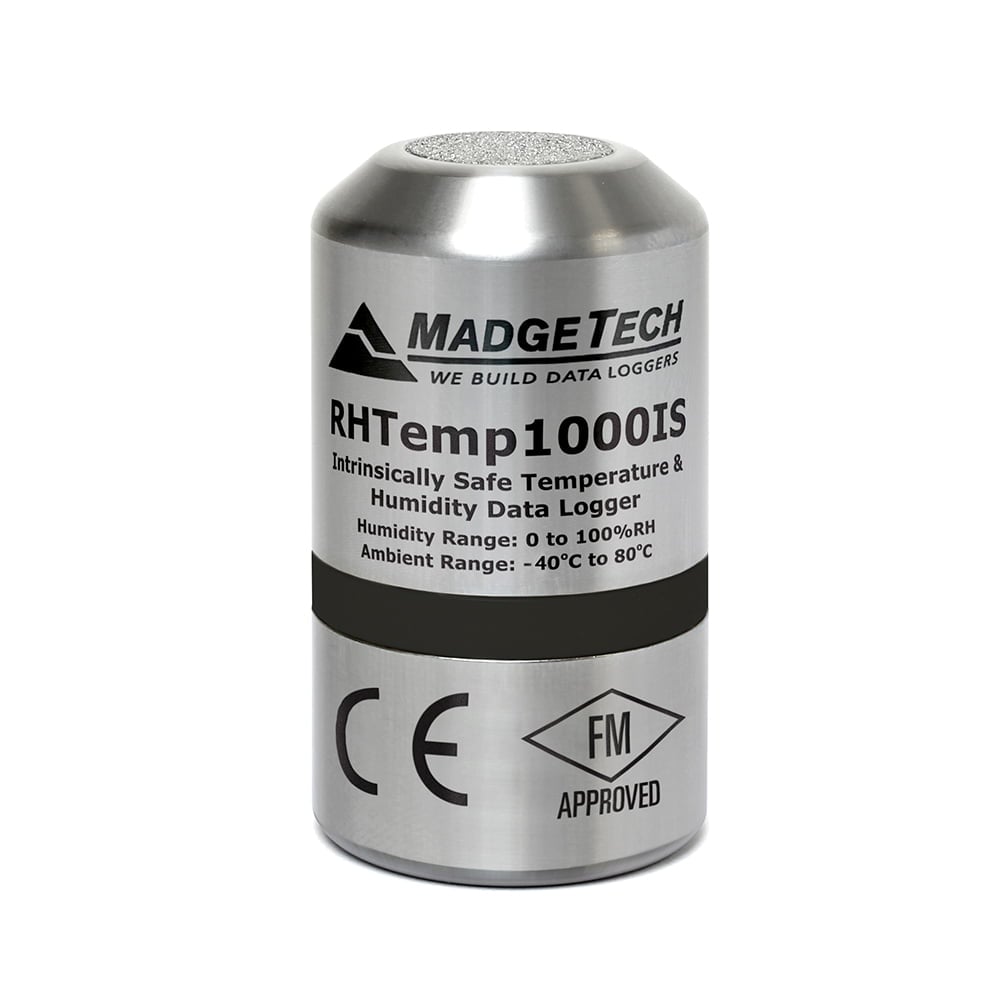

MadgeTech RHTEMP1000IS Humidity and Temperature Data Logger

Description An intrinsically safe, compact humidity and temperature recorder, the RHTemp1000IS, has been approved by SGS. With an accuracy of 0.5 °C, this instrument can measure and record temperatures between 40 °C and 80 °C (-40 °F and 176 °F). The RHTemp1000IS has a storage capacity of 32,768 time-stamped readings and may be set to begin up to 24 months in advance with advanced programming. Starting, stopping, and downloading are all made simple with the RHTemp1000IS thanks to its compatibility with MadgeTech 4 Software. Analytical data can be viewed in graphical, tabular, and summary forms as well as in engineering units that can be customized. For Class 1 Division 1, Groups A, B, C, and D, the RHTemp1000IS has been certified as intrinsically safe by SGS, and non-incendive for Class 1 Division 2. Features: Class I Division I Intrinsically Safe Certified CE Compliant Software Battery Life Indicator 316 Stainless Steel Enclosure Small, Sleek Design Fast Response Time Engraved Label Faster Downloads (1 min. full memory) Docking Station Communication Easily Identify Low Battery Voltage Resistance Temperature Detector Sensor Capacitive Polymer Humidity Sensor Lithium Battery: 3.6 V Versions Rugged, Temperature and Humidity Recorder Intrinsically Safe, aluminum enclosure Rugged, Temperature and Humidity Recorder Intrinsically Safe, aluminum enclosure and key ring end cap The MadgeTech software is a powerful, analytic tool, available to download for free from www.madgetech.com. Data can be viewed in graphical or tabular formats and summary and statistics views are available for further analysis. Software Features: Multiple graph overlay Statistics Digital calibration Zoom in/ zoom out Lethality equations (F0, PU) Mean Kinetic Temperature Full-time zone support Data annotation Min./Max./Average lines Data table view Automatic report generation Summary view Multilingual Software Key: Graph View Tabular Data View Statistics Digital Calibration Copy to Excel® Applications EtO Sterilization Environmental Studies Hostile Environment Monitoring Medical & Pharmaceutical Specifications Temperature Temperature Sensor:Resistance Temperature Detector (RTD) Temperature Range:-40 °C to 80 °C (-40 °F to 176 °F) Temperature Resolution:0.01 °C Temperature Responset63 - 8 minutes to 63% of change Time in Air:t90 - 68 minutes to 90% of change Calibrated Accuracy:±0.5 °C (0 °C to 55 °C) Humidity Humidity Sensor:Capacitive Polymer Humidity Range:0 %RH to 100 %RH (non-condensing) Humidity Resolution:0.1 %RH Humidity Responset63 - 30 seconds to 63% of change Time in Air:t90 - 2 minutes to 90% of change Calibrated Accuracy:±3.0 %RH maximum General Start Modes:Software programmable immediate start or delay start up to 24 months in advance Real Time Recording:May be used with PC to monitor and record data in real time Memory:16,350 readings per channel Password Protection:Yes Reading Rate:1 reading every second up to 1 reading every 24 hours Calibration:Digital calibration through software Calibration Date:Automatically recorded within device Memory Wrap:Yes Data Format:Date and time stamped °C, °F, K, °R ; %RH, mg/mL, Dew Point Battery Life:2 years typical at 25 °C (15 minute reading rate) Battery Type:3.6V lithium battery included, user replaceable Time Accuracy:±1 minute/month at 25 °C Required Interface Package:IFC400 or IFC406 Computer Interface:USB (interface cable required); 125,000 baud Operating System Compatibility:Windows XP SP3/Vista/Windows 7/Windows 8 MadgeTech Software Compatibility:Standard Software version 4.1.0.2 or later Secure Software version 4.1.3.0 or later Operating Environment:-40 °C to 80 °C (-40 °F to 176 °F), 0 %RH to 100 %RH (non-condensing) Dimensions:1.7 in x 0.97 in x 0.97 in (42 mm x 24.6 mm x 24.6 mm) Weight:2.3 oz (65 g) Material:316 Stainless Steel/PEEK Approvals:CE; Intrinsically Safe for Class I, Div 1, groups ABCD; Non-incendive for Class I, Division 2, groups ABCD Hazardous (Classified) Locations BATTERY WARNING: FIRE, EXPLOSION AND SEVERE BURN HAZARD. DO NOT RECHARGE, DISASSEMBLE, HEAT ABOVE 100 °C (212 °F), INCINERATE, CRUSH, OR EXPOSE CONTENTS TO WATER Certifications: Certificate of Compliance Resources: Datasheet Product User Guide
