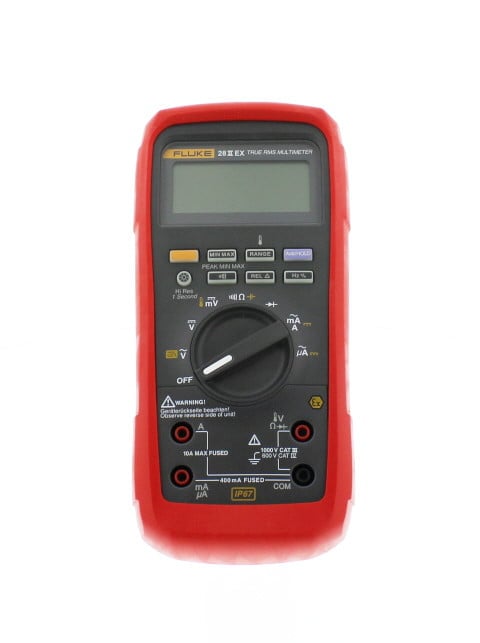

Description We’d like to introduce you to Intrinsically Safe Multimeter Ecom Fluke 28 II EX with ATEX Zone 1 rating. Among the other rugged and intrinsically safe multimeters in the world, this one is considered the best. With the most important Ex-certifications, the Ecom Fluke 28 II EX has been tested for drops of up to 3 meters. In other words, It can resistant to harsh conditions and can withstand rough treatment.The large display digits and two-level backlight help you see the results clearly. Our list of worldwide certifications means you’ll never have to compromise on safety, consistency, or efficiency at your worksite. No more deploying and integrating different equipment in different places around the world, whether it’s for ATEX, IECEx or NEC. In terms of intrinsically safe measuring instruments, the device is perfect for portability. Features: ATEX Zone 1 IECEx NEC Min/Max/Avg and Peak capture Low pass filter for accurate measurements on variable speed motor drives Input alert 4½” digit display (20,000 counts) with backlight CAT III 1000V / CAT IV 600V Dustproof, waterproof (IP67) Measures up to 1000V / 10A (outside of the Ex-hazardous area) Long battery life: 400 hours typical (without backlight) Intrinsically Safe Multimeter Ecom Fluke 28 II EX Specifications: AMBIENT TEMPERATUREDifferent temperature ranges result from the used type-tested batteries OPERATING TIMEapprox. 400 h POWER SUPPLY3x AAA, type-proofed DIMENSIONS approx. 210 mm x 100 mm x 64 mm (~ 8.3" x 3.9" x 2.5") with holster WEIGHTapprox. 690 g (~ 24.3 oz) PROTECTION RATINGIP67 DC VOLTAGERange:0.1 mV to 1000 V Accuracy:± 0.05 % 1 AC VOLTAGERange:0.1 mV to 1000 V Accuracy:± 0.7 % 4 DC CURRENTRange:0.1 μA to 10 A Accuracy:± 0.2 % 4 AC CURRENTRange:0.1 μA to 10 A Accuracy:± 1.0 % 2 RESISTANCERange:0.1 Ω to 50 MΩ Accuracy:± (0.2 % 1) CONDUCTANCERange:60.00 nS Accuracy:± (1.0 % 10) DIODE TESTRange:2.0 V Accuracy:± (2.0 % 1) DUTY CYCLERange:0.0 % to 99.9 % Accuracy:Within ± (0.2 % per kHz 0.1 %) for rise times <1 µs DISPLAY COUNTS6,000 counts / 19,999 counts in high-resolution CAPACITANCERange:10 nF to 9999 μF Accuracy:± (1.0 % 2) FREQUENCYRange:0.5 Hz to 199.99 kHz Accuracy:± (0.005 % 1) TEMPERATURERange:-200 °C to 1090 °C Accuracy:(-328 °F to 1994 °F) ± (1.0 % 10) °C [± (1.0 % 10) °F] Error: % of reading number of digits Remarks: Measurement inside the Ex-hazardous area:Ui ≤ 65V,Ii ≤ 5A Measurement outside the Ex-hazardous area:Ui ≤ 1000V, Ii ≤ 10A Certifications: English – Ecom Fluke 28 II EX ATEX Certificate German – Ecom Fluke 28 II EX ATEX Certificate Ecom Fluke 28 II EX PCEC Certificate IEx (Brazil) – Ecom Fluke 28 II EX Certificate IECEx – Ecom Fluke 28 II EX Certificate NEC/CEC – Ecom Fluke 28 II EX Certificate Simtars (Australia) – Ecom Fluke 28 II EX Certificate Resources: Data Sheet – Ecom Fluke 28 II EX Video – Ecom Fluke 28 II EX
