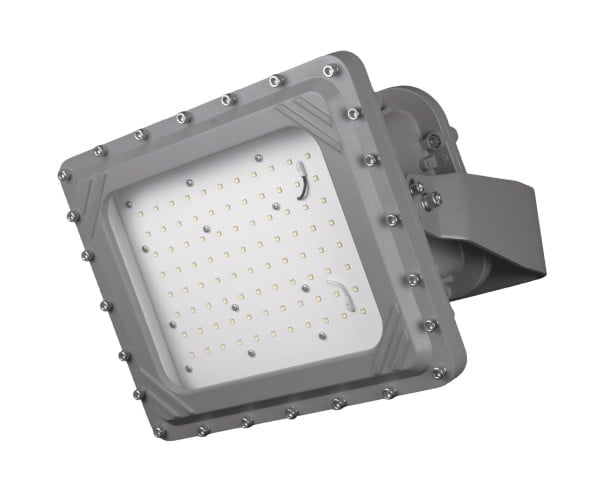

NICOR – XPQ1A150U50GRP Titan LED Flood Light 150 Watt

Description Titan’s risky location LED floodlights/high bays are designed for use in environments that are subject to dampness, filth, corrosion, vibration, and harsh ambient temperatures. The NEC outlines what constitutes a normal presence of combustible dust, fibers, and flyings and what constitutes an excessive presence of flammable gas or vapor. Features: Class I Division 1, Group C, D UL Class I Division 2, Group A, B, C, D UL Class II Division 2, Group F, G UL 844 Hazardous Location UL 1598 Wet Location UL 1598A Marine UL 8750 LED Safety IP 66 Rated CSA 22.2 No. 137-M1981 IECEx Ex d IIB T6 Gb/ Ex tb IIIC T85°C Db RoHS Compliant Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions Construction Heavy-duty die-cast copper-free aluminum housing Stainless steel hardware 3/4” NPT threaded conduit wire access ports Weight – 2’: 11.0 lbs; 4’: 15.2 lbs. RoHS Compliant Captive bolts on power supply cover Optical System Anodized aluminum reflector assembly with polycarbonate lens Diffused polycarbonate lens optional** CCT: 5000K, 4000K, or 3000K** CRI: 70 Electrical Input voltage of 100-240/277VAC The input frequency of 50/60Hz Power Factor of ≥.95 THD <20% 10kA surge protector Reported L70 hours >50,000 Environmental Ambient Operating Temperature -40°F (-40°C) ~ 122°F (50°C) C1D2 T3C at 122°F (50°C) C2D1 T4A at 122°F (50°C) Ambient Operating Humidity of 10%~90% RH Finish RAL 7037 (Dusty Gray) polyester powder coat Installation Prewired with 2’ flying leads Allows wiring without opening the power supply cover Integrated 3/4” NPT threaded hub for pendant mount Universal trunnion bracket available, with legacy bolt pattern (drill rigs) Pipe mount kit available For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel Warranty 5-year limited system warranty standard The warranty does not cover product failure due to an overvoltage event (power surge) Specifications Primary Component MaterialDie-Cast Aluminum (Copper Free) Product ColorDusty Gray FinishPolyester Powder Coat Product Length (in)12.9 Voltage100-240/277VAC Wattage139.6 Lumen Output17261 Lumens Per Watt123.6 Color Temperature (CCT)5000K CRI70 Beam Angle120° ( /- 10%) Spacing Criteria1.29 120V Current (A)1.163 277V Current (A)0.504 Power Factor?.90 Total Harmonic Distortion (%)<20% Operating Temperature-40°F to 140°F (-40°C to 60°C) Product Lifespan (Hours)>50,000 Warranty (Years)1. 5 Certifications: Equipment Certification Requirements  Other Resources: Titan Specification Sheet Installation Instruction Brochure More Options For you: NICOR – XPQ1B150U50GRP Titan LED Flood Light 150 Watt Explosion Proof AE Light 20W LED 100-240VAC
