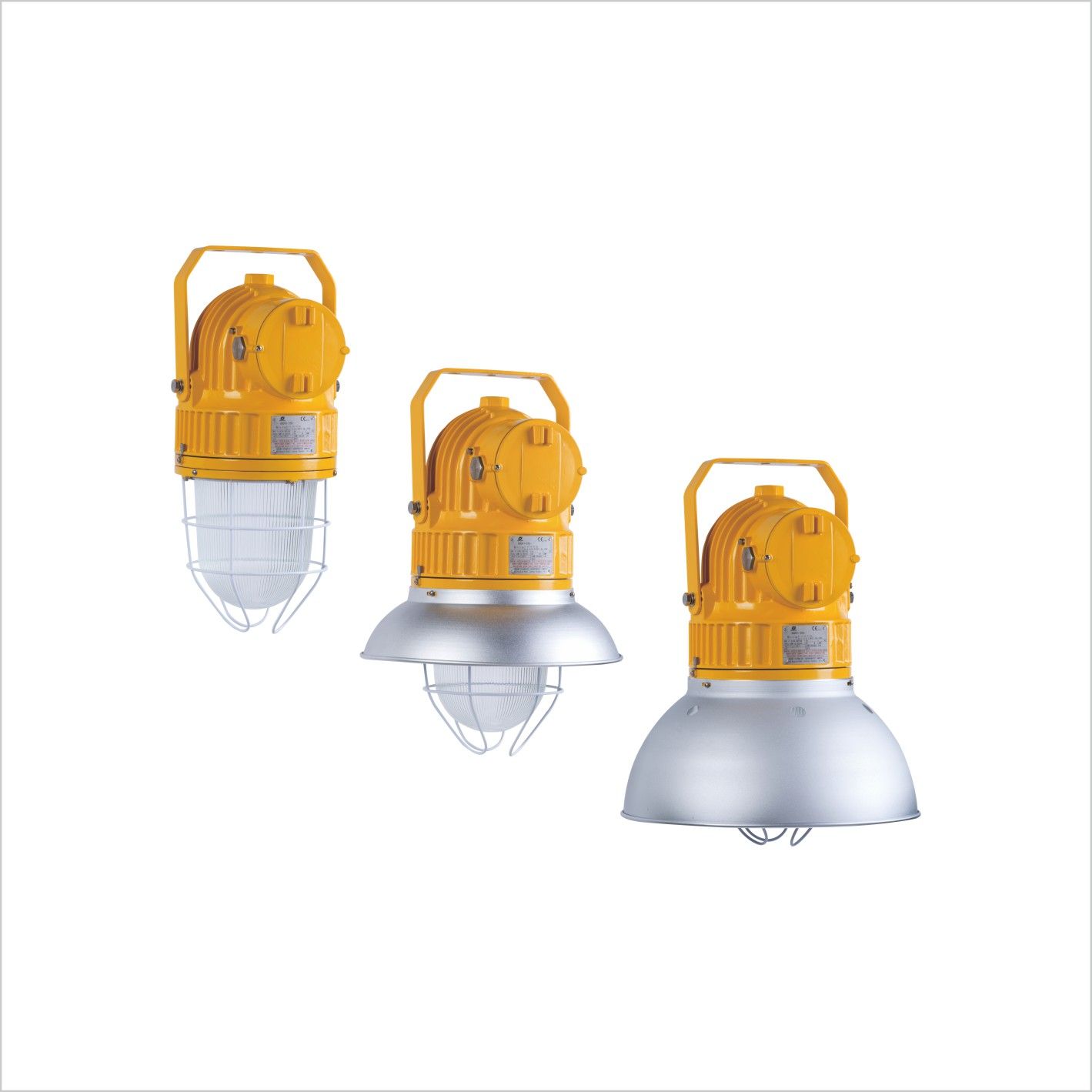

Description Intrinsically Safe Explosion-proof Light Fittings BDD91 Applicable lamp(max.400W): Metal halide lamp (HIE) High-pressure sodium lamp(HSE) High-pressure mercury lamp(HME) Three enclosure types: 150,250,400. Integral control gear, easy installation, and maintenance Specifications: Global (IECEx)IECEx CQM 12.0016X Gas and dustEx d IIC T□1）Gb Ex t IIIC T□1）Db IP66 Europe (ATEX)DNV 11 ATEX 05977X Gas and dust II 2 G Ex d IIC T□1）Gb II 2 D Ex tb IIIC T□1）Db IP66 CertificatesIECEx; ATEX；CU-TR Conformity to standardsEN; IEC Degree of protectionIP66/IP67 Ambient temperature-60℃~ 55℃ Data: MaterialCopper-free Aluminium Alloy,powder coated surface,yellow (RAL1021), Toughened glass,stands 4J impact Weight11.2~16.7kg Dimensionsdifferent power has different dimension Lamp specificationHIE HSE HME Lamp power (W)70~400W Rated voltage220~240V AC 50/60Hz Rated luminous flux3800~56500lm Terminal3 x 1.5~4mm㎡ (L N PE) Cable entries2021-01-02 00:00:00 Cable gland(optionalDQM-II(Ex d）or DQM-III(Ex d） is recommended. Intrinsically Safe Explosion-proof Light Fittings BDD91 Certifications: Intrinsically Safe Explosion-proof Light Fittings BDD91 IECEX Certification Intrinsically Safe Explosion-proof Light Fittings BDD91 Other Resources: Intrinsically Safe Explosion-proof Light Fittings BDD91 Brochure
