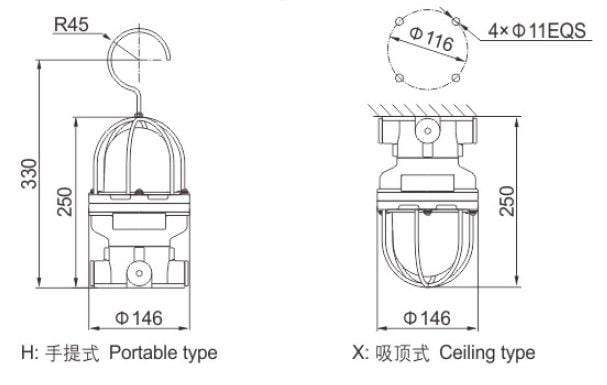

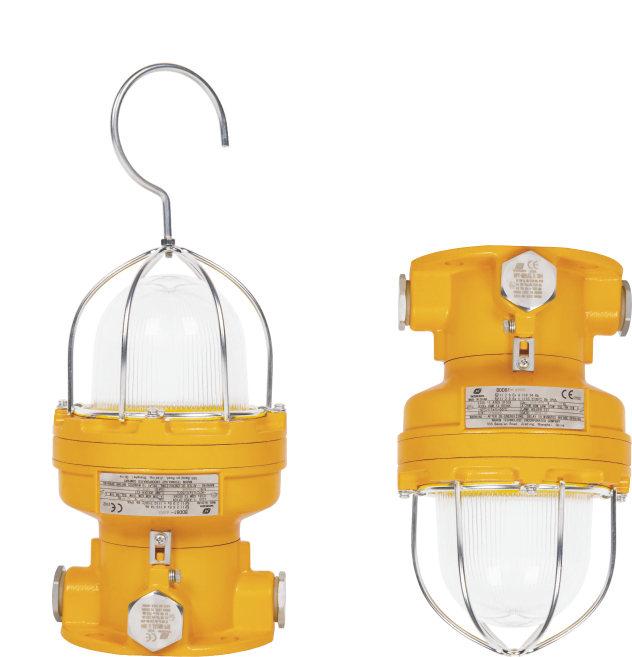

Description Intrinsically Safe Explosion-proof Lightings BDD81 Intrinsically Safe Explosion-proof Lightings BDD81 can reliably work in a severe environment exposed to moisture, vibration, or corrosion; Explosive hazardous atmosphere Zone 1, Zone 2, Zone 21, Zone 22. Housing: High-quality maritime aluminum alloy, powder-coated surface Electric: Electromagnetic ballast Diffuser: Toughened glass Protection net: Stainless steel Hook: Stainless steel Technical Parameters Conformity to standardsIEC60079, EN60079, CCS standard Ambient temperature-40℃~ 55℃ Lamp holderE27 Degree of protectionIP66, IP67 Corrosion-proofWF2 Cable entry4×M25×1.5 Terminal3×1.5~4mm²(L N PE) Weight2.7kg (Portable type) 2.5kg (Ceiling type) Selection table Type Rated voltage (V) Rated power Luminous flux Ex-Mark BDD81-A25 220V / 230V AC 50 / 60 Hz 25W 201 Ⅱ2 G Ex dⅡC T4 Gb Ⅱ2 D Ex t Ⅲ C T130℃ Db IP66 BDD81-A40 40W 318 BDD81-A60 60W 500 BDD81-A100 100W 1025 BDD81-ESL 9 9W 400 BDD81-ESL 11 11W 570 BDD81-LED 3 3W 255 BDD81-LED 5 5W 425 BDD81-LED 8 8W 680 ◆ This product is a portable type (H) and ceiling type (X) is on request. ◆ The light fitting is supplied with Ex type stopping plug and the Ex cable gland is on request. Intrinsically Safe Explosion-proof Lightings BDD81 Certification: IECeX Certification: Ex d IICT4 Gb Ex t IIIC T130℃ Db /IP66 CU TR Certification: 1Ex d ⅡC T4 Gb Extb ⅢC T130℃ Db Degree of protection – IP66 Ambient Temperature – ‘-40 ℃～ 55 ℃ ATEX Certification: Ⅱ2 G Ex d ⅡC T4 Gb Ⅱ 2D Ext ⅢC T130℃ Db/IP66 Enclosure material – Copper-free Aluminium Intrinsically Safe Explosion-proof Lightings BDD81 Other Resources: Intrinsically Safe Explosion-proof Lightings BDD81 brochure:
