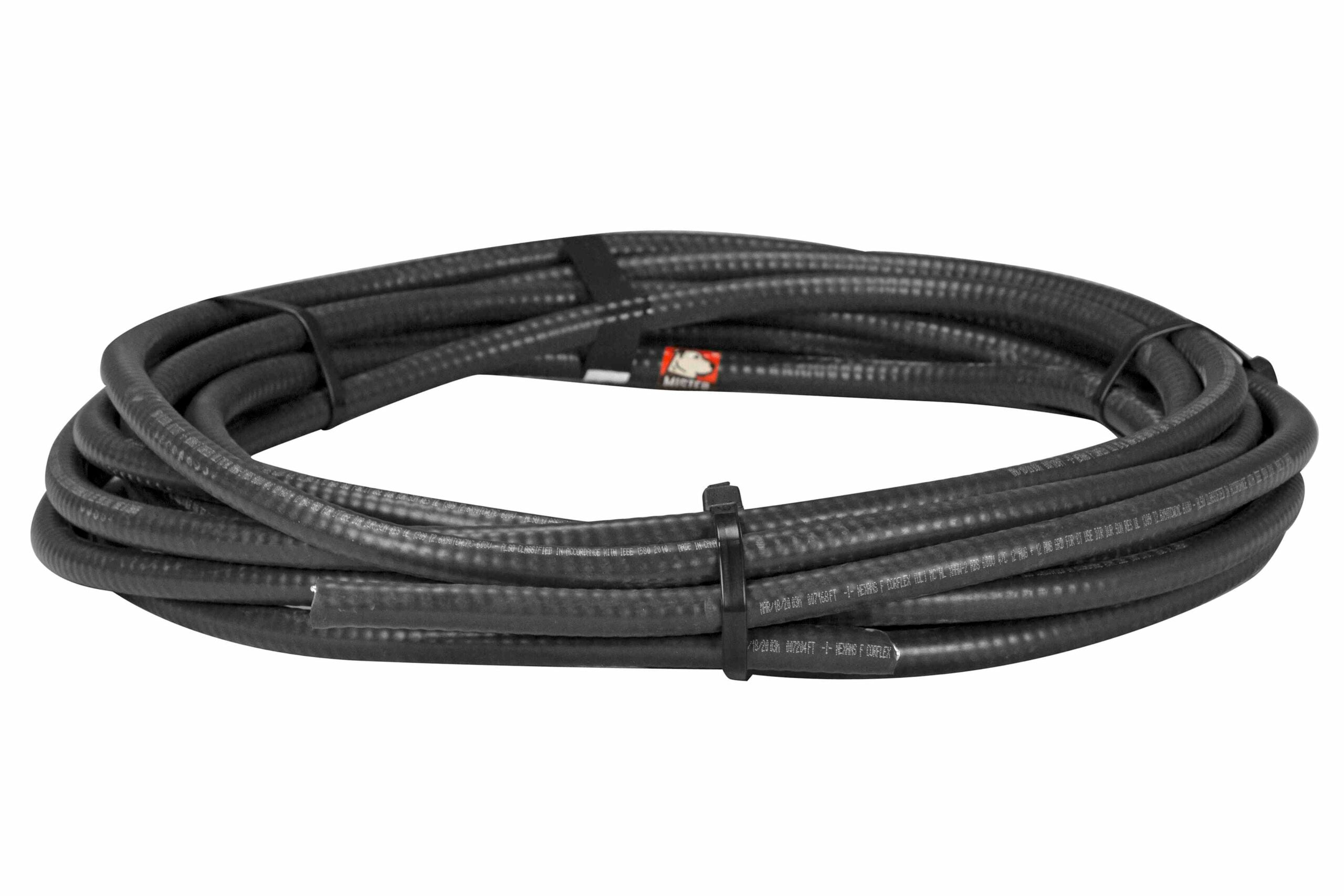

Description 12/3 MC-HL Cable – Continuously Welded Armor Cable – C1D1 / C2D1 – 600 V This cable is a 12 AWG (3-conductor) metal-clad MC-HL cable with continuously welded, corrugated aluminum armor, designed specifically for hazardous-area use (Class I Div 1/2 and Class II Div 1/2) and sold by the foot for flexible run lengths. It enables safe power distribution in oil & gas, chemical, mining and industrial environments where robust protection and certification are required. The assembly features stranded soft-drawn annealed copper conductors with PVC insulation (15 mils 4 mils nylon), a left-hand lay bundle with non-wicking fillers, an aluminum/polyester shield with 7-strand tinned-copper drain wire, inner PVC jacket (with rip-cord), and outer black PVC jacket over a continuously welded armor that exceeds NEC grounding requirements. Nominal OD is 0.580″ over armor (0.690″ overall), weight approximately 0.24 lb/ft. It is UL listed for MC and MC-HL type, approved for cable tray, sunlight and oil resistant, and direct burial capable. It meets UL 83, UL 1581, UL 1569, UL 2225 and NEC Articles 250-118, 501, 502, 503, 504, 505, 725. Key Features: ✅ UL Listed MC-HL cable rated 600 V ✅ Continuously welded, corrugated aluminum armor for superior grounding and physical protection ✅ Conductors: stranded soft-drawn annealed copper with color-coded PVC nylon insulation ✅ Inner PVC jacket with rip-cord, outer black PVC jacket ✅ Nominal OD over armor: 0.580″; overall 0.690″, weight approx. 0.24 lb/ft ✅ Sunlight resistant, oil resistant, approved for direct burial ✅ Listed for cable tray use, hazardous-location ratings (NEC 501/502/503/504/505/725) 12/3 MC-HL Cable – Continuously Welded Armor Cable – C1D1 / C2D1 – 600 V Technical Specifications: FeatureDetails Product Type12/3 MC-HL Continuously Welded Armor Cable Voltage Rating600V Conductors3 × 12 AWG stranded, soft-drawn annealed copper InsulationPVC (15 mils) Nylon (4 mils), color-coded ArmorContinuously welded, corrugated aluminum armor ShieldingAluminum/polyester tape with 7-strand tinned copper drain wire FillerNon-wicking fillers Inner JacketPVC with rip-cord Outer JacketBlack PVC Nominal OD (over armor)0.580″ Nominal Overall Diameter0.690″ Weight~0.24 lb/ft Temperature Rating90°C wet/dry Listings / StandardsUL 83, UL 1569, UL 2225, UL 1581 NEC ComplianceArticles 250-118, 501, 502, 503, 504, 505, 725 Hazardous Location ApprovalClass I Div 1 & 2; Class II Div 1 & 2 Environment RatingsSunlight resistant, Oil resistant, Direct burial FeatureDetails Product Type12/3 MC-HL Continuously Welded Armor Cable Voltage Rating600V Conductors3 × 12 AWG stranded, soft-drawn annealed copper InsulationPVC (15 mils) Nylon (4 mils), color-coded ArmorContinuously welded, corrugated aluminum armor ShieldingAluminum/polyester tape with 7-strand tinned copper drain wire FillerNon-wicking fillers Inner JacketPVC with rip-cord Outer JacketBlack PVC Nominal OD (over armor)0.580″ Nominal Overall Diameter0.690″ Weight~0.24 lb/ft Temperature Rating90°C wet/dry Listings / StandardsUL 83, UL 1569, UL 2225, UL 1581 NEC ComplianceArticles 250-118, 501, 502, 503, 504, 505, 725 Hazardous Location ApprovalClass I Div 1 & 2; Class II Div 1 & 2 Environment RatingsSunlight resistant, Oil resistant, Direct burial Certifications & Compliance: �� UL 83 – Standard for Thermoplastic Insulated Wires and Cables (applicable conductors) �� UL 1569 – Metal-Clad Cable �� UL 2225 – Metal-Clad Cable for Use in Hazardous (Classified) Locations �� Meets NEC Articles 250-118, 501, 502, 503, 504, 505 and 725 – grounding and hazardous location requirements �� Sunlight resistant / Oil resistant / Direct burial rated – for harsh industrial applications ��Download Datasheet Applications of 12/3 MC-HL Cable – Continuously Welded Armor Cable – C1D1 / C2D1 – 600 V: �� Oil & Gas (on-shore, offshore, control panels) �� Chemical Plants (hazardous/flammable atmospheres) �� Mining & Tunnelling (explosion risk zones) �� Laboratories and instrument rooms in classified environments �� Industrial Manufacturing: conveyors, heavy-duty feeders in classified zones What’s in the Box? �� 1x Cut-to-length 12/3 MC-HL cable (as specified) �� Documentation Kit (spec sheet, installation instructions) Ordering & Shipping Details �� Lead Time: Cable sold by the foot, standard lead time subject to length and availability — check with sales. �� Shipping Terms: Worldwide shipping available / expedited shipping options subject to length and destination. �� Payment Options: Credit Card, PayPal, Contact us for Net 30 Terms for qualified buyers. FAQs: Q1: Is this cable suitable for Class I Division 1 locations? A: Yes — the cable meets hazardous-location requirements under NE C 501/502 and is listed as Type MC-HL for hazardous locations. Q2: Can I install this in a cable tray? A: Yes — it is listed for cable tray use. Q3: Can this cable be buried underground? A: Yes — it is approved for direct burial. Q4: What is the outer diameter and weight? A: Nominal OD over armor is 0.580″, overall diameter 0.690″, and weight approximately 0.24 lb per foot.
