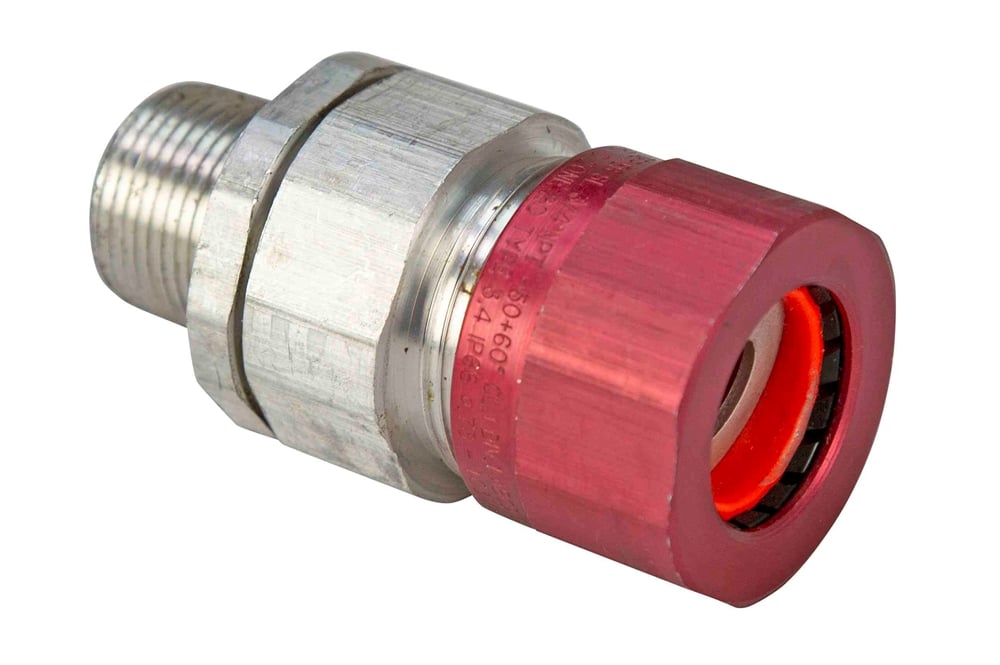

Description Explosion Proof Cable Connector – C1D1, C2D1 – 3/4″ MC-HL Cable Gland Designed for demanding hazardous-area applications, this explosion-proof cable connector from Larson Electronics (model CGB-MCHL-0.75) provides secure termination of ¾″ NPT armored cable (MC-HL) in Class I Division 1 & 2, Class I Zones 1 & 2, Class II Division 1 & 2 and Class III environments. :contentReference[oaicite:1]{index=1} Constructed of copper-free aluminum with a stainless steel 360° grounding spring, this unit accepts armor inner OD from 0.65″ to 0.95″ and armor outer OD from 0.73″ to 1.03″, features IP66 rating, through diameter 0.71″, and operating temperature from -50 °C to 60 °C. Types 3 and 4 wet location rated. :contentReference[oaicite:2]{index=2} Key Features: ✅ Class I Division 1/2 & Class II Division 1/2 rated ✅ ¾″ NPT entry thread with 0.84″ length ✅ Armor inner OD min/max 0.65″/0.95″ & outer OD min/max 0.73″/1.03″ ✅ Through diameter 0.71″ ✅ IP66 / Type 3, 4 wet location rating ✅ Operating temp range -50 °C to 60 °C ✅ Copper-free aluminum body with stainless steel grounding spring ✅ Supports up to 21 cores Explosion Proof Cable Connector – C1D1, C2D1 – 3/4″ MC-HL Cable Gland Technical Specifications: FeatureDetails Product TypeExplosion Proof Cable Connector / Cable Gland ModelCGB-MCHL-0.75 Entry Thread3/4" NPT (thread length 0.84") Maximum Length2.6" overall Cable TypeMC-HL armored cable Armor Inner Diameter (Min/Max)0.65" / 0.95" Armor Outer Diameter (Min/Max)0.73" / 1.03" Through Diameter0.71" Maximum Cores SupportedUp to 21 cores MaterialsCopper-free aluminum body; stainless steel 360° grounding spring; nylon/silicone backnut; nitrile O-rings Hazardous Location RatingsClass I Div 1 & 2 (Groups A, B, C, D) Class I Zones 1 & 2 (Group IIC) Class II Div 1 & 2 (Groups E, F, G) Class III Environmental RatingIP66, Type 3 & 4 (wet locations) Operating Temperature-50°C to 60°C CertificationsUL Listed for U.S. & Canada ColorMetallic (aluminum finish) Compatible Cable TypeMC-HL armored cable only Certifications & Compliance: �� UL Listed for United States & Canada – explosion-proof cable connector. �� Rated for Class I Div 1/2 Groups A,B,C,D; Class I Zones 1/2 Group IIC; Class II Div 1/2 Groups E,F,G; Class III �� IP66 / Types 3, 4 rating – suitable for wet locations �� Operating temperature -50 °C to 60 °C. �� Materials: Copper-free aluminum body, stainless steel grounding spring, silicone/nylon backnut, nitrile O-rings. �� Download Datasheet Applications of Explosion Proof Cable Connector – C1D1, C2D1 – 3/4″ MC-HL Cable Gland: �� Oil & Gas production facilities (on-shore/off-shore) �� Chemical and petrochemical plants �� Mining operations and processing plants �� Grain handling and dust‐risk industrial zones �� Marine and wet location installations requiring explosion‐proof cable entry What’s in the Box? �� 1x Explosion Proof Cable Connector – ¾″ NPT, MC-HL Cable Gland �� Documentation Kit (spec sheet, installation instructions) Ordering & Shipping Details �� Lead Time: 3-4 days �� Shipping Terms: Worldwide / Expedited Options – available. �� Payment Options: Credit Card, PayPal, Net 30 Terms (for qualified accounts) – consult sales. FAQs: Q1: Can this gland be used with MC-HL armored cable? A: Yes – designed for MC-HL armor inner OD 0.65″–0.95″ and outer OD 0.73″–1.03″. :contentReference[oaicite:9]{index=9} Q2: What is the entry thread size? A: ¾″ NPT with 0.84″ thread length. :contentReference[oaicite:10]{index=10} Q3: What temperature range does it cover? A: -50 °C to 60 °C. :contentReference[oaicite:11]{index=11} Q4: Is this suitable for wet locations? A: Yes – rated IP66 / Types 3, 4 for wet locations. :contentReference[oaicite:12]{index=12}
