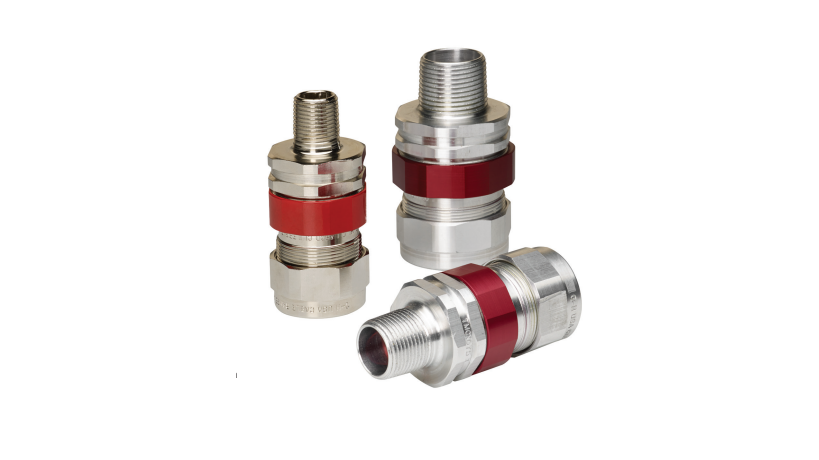

3/4 Crouse Hinds Terminator II TMCX

Description Terminator II TMCX Armored Cable Glands The Terminator II TMCX is a premier barrier cable gland engineered specifically for terminating armored, non-armored, and TECK armored cables in hazardous locations. Designed for maximum safety and reliability, these glands are essential for maintaining the integrity of electrical systems in Class 1, Division 1 environments where explosive gases or vapors may be present. In the field, the TMCX stands out for its ease of installation, utilizing an integral union design that reduces the need for repeated assembly and disassembly. The inclusion of the fast-curing Chico LiquidSeal compound significantly reduces downtime by providing quick gel and cure times, while the red anodized nut ensures a permanent, hard-wearing finish that resists the elements. Key Features: ✅ Class 1, Division 1, Groups A, B, C, D certification for hazardous areas ✅ Fast-curing Chico LiquidSeal or TSC epoxy barrier compound options ✅ NEMA 4X and 6P ratings for superior water and dust protection ✅ Integral union design to minimize tightening and loosening during installation ✅ Captive garter spring (copper-flashed stainless steel) for high-strength connectivity ✅ Anti-rotation feature for easy single-tool assembly ✅ Neoprene seals for a wide operating temperature range of -40°C to 60°C ✅ Available in NPT or Metric ISO thread sizes to interface with global machinery ✅ Robust material options including Aluminum, 316 Stainless Steel, and Nickel-Plated Brass �� Package Options: �� Aluminum (Standard): Lightweight and durable for general hazardous area use �� Nickel-Plated Brass: Enhanced corrosion resistance for harsh industrial settings �� 316 Stainless Steel: Maximum integrity for the most aggressive environments �� LSC Liquid Compound: Fast-curing Chico LiquidSeal for rapid deployment Terminator II TMCX Technical Specifications: FeatureDetails Hazardous Area RatingsClass I, Div 1 (Groups A, B, C, D); Class II (Groups E, F, G); Class III Ingress ProtectionNEMA 4X, NEMA 6P MaterialsAluminum (Standard); 316 Stainless Steel; Nickel-Plated Brass Compatible CablesMC, MC-HL, TECK, TC-ER-HL, ITC-HL, PLTC, and Tray Cable Seal CompoundChico LiquidSeal (LSC) or TSC Epoxy Solid Compound Temperature Range-40°C to 60°C (Neoprene seal) Hub Sizes1/2" to 4" NPT; M20 to M110 Metric Design FeaturesIntegral Union, Anti-Rotation Splined Shaft, Red Anodized Nut CertificationsUL/cULus Listed (File No. E122485) Certifications & Compliance: �� Class 1, Division 1 – Groups A, B, C, and D for explosive gas atmospheres �� Class II & III – Groups E, F, G for combustible dusts and fibers �� NEMA 4X & 6P – Protection against hose-directed water, corrosion, and prolonged submersion �� UL/cULus Listed – File No. E122485 for safety compliance ��Download Datasheet Applications of Terminator II TMCX: �� Oil & Gas �� Chemical Plants �� Mining �� Labs �� Manufacturing What’s in the Box? �� 1x Terminator II TMCX Cable Gland �� 1x Sealing Compound (TSC Solid or LSC Liquid as ordered) �� 1x Integral Dam for liquid pour �� 1x Installation Guide Ordering & Shipping Details �� Lead Time: Typically 3–5 business days �� Shipping Terms: Worldwide / Expedited Options �� Payment Options: Credit Card, PayPal, Net 30 Terms Related Products: �� Chico LiquidSeal Compound �� TMCX Cold Shrink Kit �� TSC Epoxy Compound FAQs: What cable types are compatible with the TMCX? It is designed for Metal-clad (MC), TECK, Non-armored, and Tray cables What is the benefit of the Red Anodized Nut? It provides a permanent and consistent coating that is highly hard-wearing in field conditions. Does it support metric machinery? Yes, the range is available with ISO metric threads for interfacing with European equipment. Is a special tool required for assembly? The splined shaft anti-rotation feature allows for easy single-tool assembly
