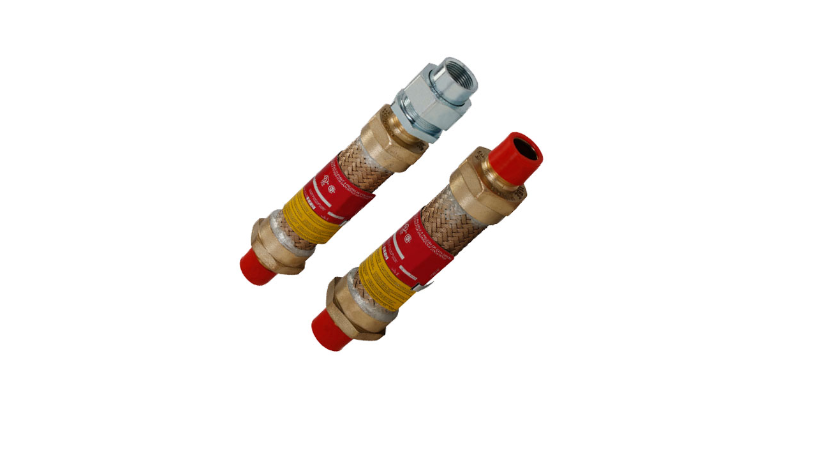

Description ECGJH and ECLK Series Flexible Couplings The ECGJH and ECLK Series are heavy-duty flexible couplings designed for use in hazardous locations where a flexible member is required in a conduit system. These couplings are essential for accomplishing difficult bends, allowing for equipment movement or vibration, and navigating tight spaces where rigid conduit is difficult to install. Engineered for maximum durability in the field, these couplings feature a rugged design capable of withstanding internal explosive pressure (Class 1) and mechanical abuse. Smaller sizes (1/2″ to 2″) utilize a flexible brass inner core with a bronze braid covering and an insulating wire duct liner to prevent grounds, while larger sizes (2-1/2″ to 4″) feature high-strength stainless steel construction. Key Features: ✅ NEC: Class 1, Div 1, Groups A, B, C, D (Size dependent); Class 2, Div 1; Class 3 ✅ ATEX/IECEx: Ex d IIC/IIB, IP66 (S516 models only) ✅ Rugged forged brass (1/2″ to 2″) or stainless steel (2-1/2″ to 4″) end fittings ✅ Liquidtight construction for use in wet locations ✅ Bronze braid covering with flexible brass inner core for 1/2″ to 2″ sizes ✅ Type 304 stainless steel braid for 2-1/2″ to 4″ sizes ✅ Internal wire duct liner (up to 2″) protects against grounds and short circuit burn-through ✅ No bonding jumpers required; metallic braid provides a continuous electrical path ✅ Available in lengths up to 144 inches �� Package Options: �� ECGJH: Features two threaded male end fittings for standard male-to-male connections �� ECLK: Features one female union and one male threaded end fitting for specialized termination �� S516 Option: ATEX/IECEx certified version available for ECGJH models �� S758 Option: Flexible PVC protective coating for severely corrosive environments ECGJH and ECLK Series Technical Specifications: FeatureDetails Hub Sizes1/2" to 4" Material (1/2" to 2")Forged brass end fittings, bronze braid, brass inner core Material (2-1/2" to 4")Stainless steel construction and Type 304 stainless braid Hazardous RatingsClass 1, Div 1, Groups A, B, C, D; Class 2, Div 1; Class 3 Global RatingsATEX/IECEx (Ex d IIC/IIB) available with S516 suffix Ingress ProtectionLiquidtight for wet locations; IP66 for S516 models Standard Lengths4" to 36" (Standard); Custom lengths up to 144" Internal LinerWoven cotton braid impregnated with asphalt (1/2" to 2") ComplianceUL1203 Standard Certifications & Compliance: �� NEC/CEC – Class I, Div 1, Groups A, B, C, D; Class II, Div 1; Class III �� UL1203 Explosion-Proof and Dust-Ignition-Proof Electrical Equipment �� ATEX/IECEx – Ex d IIC/IIB (S516 suffix only) �� IP66 – Dust-tight and protected against powerful water jets (S516 models) �� Download Datasheet Applications of ECGJH and ECLK Series: �� Oil & Gas (Hazardous conduit systems) �� Chemical Plants (Corrosive environments with S758 coating) �� Mining (Class II, Div 1 dust environments) �� Manufacturing (High-vibration equipment connection) �� Locations requiring difficult conduit bends or limited space What’s in the Box? �� 1x ECGJH or ECLK Flexible Coupling �� Integrated End Fittings (Male/Male or Male/Female Union) �� Built-in Insulating Wire Duct (Sizes up to 2″) �� Documentation Kit Ordering & Shipping Details �� Lead Time: 3 – 5 business days �� Shipping Terms: Worldwide / Expedited Options �� Payment Options: Credit Card, PayPal, Net 30 Terms Related Products: �� Rigid Conduit Hubs and Fittings �� Explosionproof Enclosures �� Sealing Fittings FAQs: Do I need a bonding jumper with these couplings? No, bonding jumpers are not required because the metallic braid provides a continuous electrical path. What is the difference between ECGJH and ECLK? ECGJH has two male threaded end fittings, while ECLK has one female union and one male threaded end fitting. Can these be used in corrosive areas? Yes, for severely corrosive locations, you can order the S758 option, which adds a flexible PVC protective coating What is the maximum length available? Special coupling lengths are available up to 144 inches
