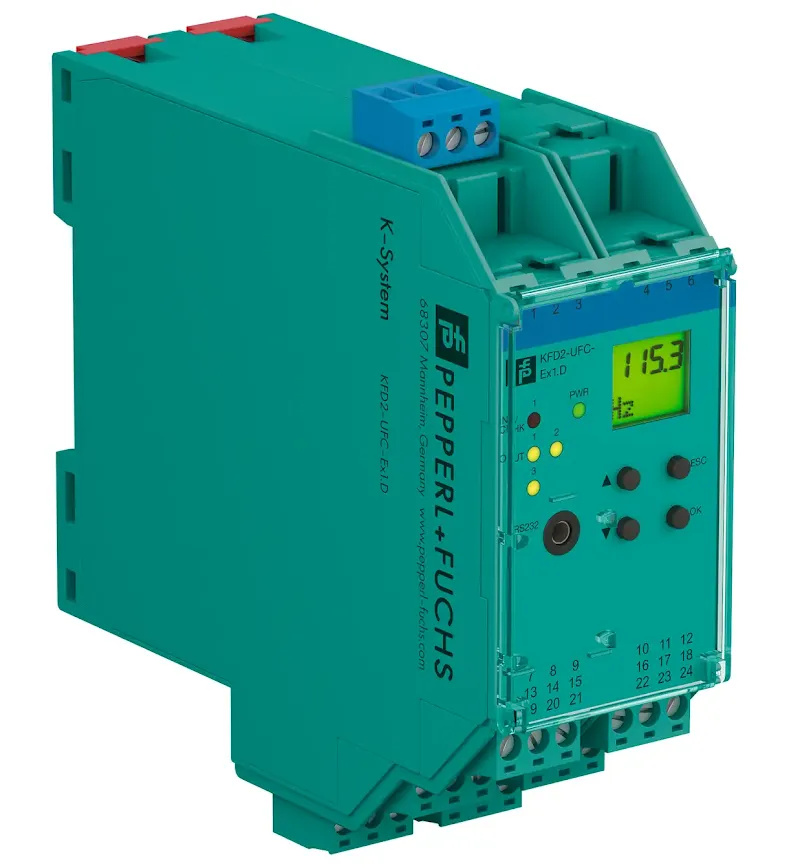

Description Pepperl Fuchs KFD2-UFC-Ex1.D Frequency Converter with Trip Values The Pepperl Fuchs KFD2-UFC-Ex1.D is a sophisticated 1-channel isolated barrier designed for intrinsic safety applications in demanding hazardous environments. This universal frequency converter is critical for process automation, as it transforms digital input signals into a proportionally adjustable 0/4 mA to 20 mA analog output signal, while simultaneously serving as a switch amplifier and trip alarm. It ensures safe signal transmission between field devices located in Zone 0/Div. 1 and control systems in the safe area. Engineered for high-precision field performance, the KFD2-UFC-Ex1.D handles a broad input frequency range from 1 mHz to 5 kHz. It offers versatile configuration options through a dedicated keypad, LC display, or PACTware software, allowing for easy adjustment of trip values (min/max alarms), pulse dividers, and error signal outputs. The device features a start-up override function and comprehensive line fault detection (LFD) to maintain operational uptime and safety integrity. Key Features: ✅ ATEX, IECEx, and UL/FM certified for use in hazardous areas ✅ Easy configuration via front-facing keypad or PACTware software ✅ SIL 2 Safety Integrity Level according to IEC/EN 61508/61511 ✅ Wide input frequency range: 1 mHz to 5 kHz ✅ Analog output: 0/4 mA to 20 mA (free adjustable) ✅ Multiple switch outputs: 2 relay outputs and 1 potential-free transistor output ✅ Integrated Line Fault Detection (LFD) for breakage and short-circuits ✅ Start-up override: 1 to 1000 seconds, adjustable in 1-second steps ✅ Collective error message output via Power Rail �� Package Options: �� Standard Unit: KFD2-UFC-Ex1.D Frequency Converter �� Power Rail Integration: Compatible with UPR-03 series for streamlined 24V DC supply �� Accessory Bundle: Available with NAMUR Resistor Network (F-NR3-Ex1) or measuring resistors Pepperl Fuchs KFD2-UFC-Ex1.D Technical Specifications: FeatureDetails Product ModelKFD2-UFC-Ex1.D Signal TypeDigital Input / Analog Output Number of Channels1-channel isolated barrier Supply Voltage20 ... 30 V DC (Power Rail or Terminals 23 , 24-) Input TypeNAMUR sensors or dry contacts (Intrinsically Safe) 1 Input Frequency0.001 Hz to 5000 Hz Analog Output0/4 mA ... 20 mA (Load max. 650 Ω) Switch Outputs2 Relay outputs 1 Transistor output (Passive) 1 Safety Integrity LevelSIL 2 1 ProgrammingKeypad, LC display, or PACTware software 2 Line Fault DetectionBreakage and Short-circuit monitoring Ambient Temperature-20 ... 60 °C (-4 ... 140 °F) 3 Dimensions40 x 119 x 115 mm (W x H x D) 3 CertificationsATEX, IECEx, UL, FM, CE 3 Certifications & Compliance: �� ATEX/IECEx – [Ex ia Ga] IIC, [Ex ia Da] IIIC for use in Zones 0, 1, and 2 �� FM to Class l,ll,lll, Division 1 Groups A, B, C, D, E, F, and G �� SIL 2 – Functional safety compliant to IEC/EN 61508 �� IP20 – Ingress protection rating against solid objects ��Download Datasheet Applications of Pepperl Fuchs KFD2-UFC-Ex1.D: �� Oil & Gas �� Chemical Plants �� Mining �� Labs �� Manufacturing What’s in the Box? �� 1x KFD2-UFC-Ex1.D Isolated Barrier �� 1x Set of Removable Terminals (Blue and Green) �� 1x Integrated LC Display and Keypad �� 1x Documentation Kit / Quick Start Guide Ordering & Shipping Details �� Lead Time: Contact for availability (Typically ships in 3-5 business days) �� Shipping Terms: Worldwide / Expedited Options �� Payment Options: Credit Card, PayPal, Net 30 Terms Related Products: �� KFD2-EB2 Power Feed Module �� UPR-03 Universal Power Rail �� F-NR3-Ex1 NAMUR Resistor Network FAQs: What is the maximum input frequency for this device? The KFD2-UFC-Ex1.D supports a wide input frequency range from 0.001 Hz (1 mHz) up to 5000 Hz (5 kHz). Can I configure this device without a computer? Yes, the device can be easily configured using the front-mounted keypad and LC display, though PACTware software is also supported. Does this unit support line fault detection? Yes, it includes Line Fault Detection (LFD) for detecting lead breakages (≤ 0.15 mA) and short-circuits (> 6.5 mA). What is the SIL rating of this frequency converter? This device is rated up to SIL 2 according to IEC/EN 61508 and IEC/EN 61511.
