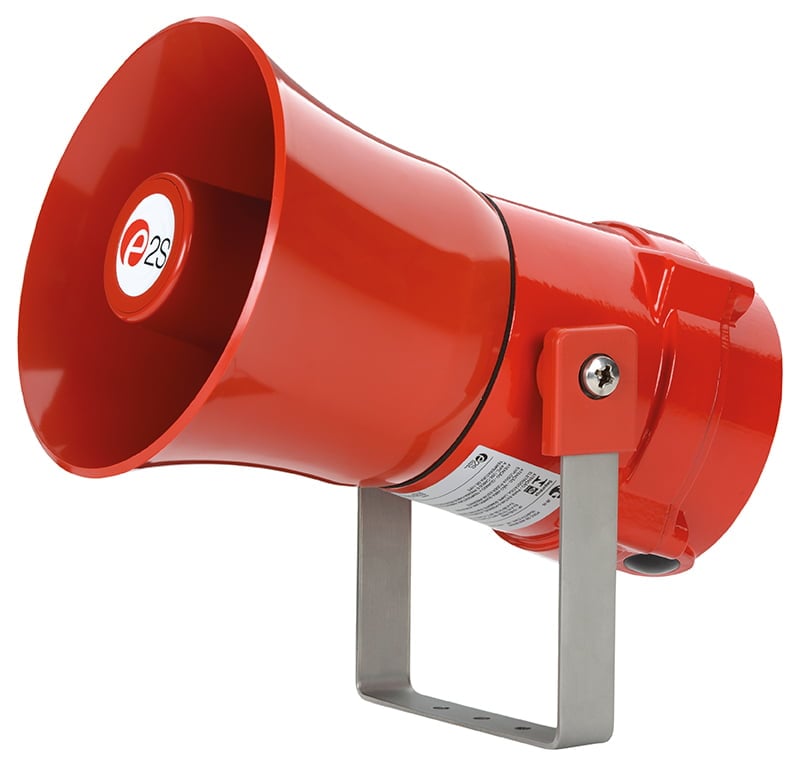

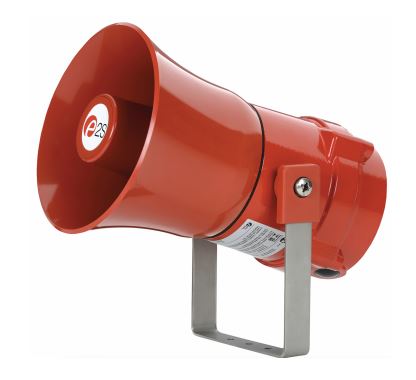

Intrinsically Safe Explosion Proof Alarm Horn Sounder Tomar BExS110DF Series

Description Intrinsically Safe Explosion Proof Alarm Horn Sounder Tomar BExS110DF Series Features: Marine grade, corrosion proof, LM6 aluminum enclosure. Ingress protection IP66/67 Stainless steel fixings Dual M20 cable entries – adapters available. Stopping plug included. Reverse polarity diode fitted. Automatic synchronization on multi-sounder system. Very large termination area. Ratchet adjustable stainless steel ‘U’ bracket. Introducing Intrinsically Safe Explosion Proof Alarm Horn Sounder Tomar BExS110DF Series Sound level outputs of up to 117dB (A) at 1 meter with a choice of 32 alarm tones and 3 remotely selectable stages. The BEx range features enclosures manufactured from corrosion proof, marine grade copper-free LM6 aluminum with chromate, and powder coat finish. Available in MED approved and SIL2 compliant versions. For fire applications, the BExS110D 24V dc siren is CPD EN89/106/EECcompliant (EN54-3 tested). Specification ItemDescription Maximum output 117dB (A) @ 1 meter [108dB (A) @ 10ft/3m] Nominal output 110dB (A) @ 1m /- 3dB - Tone 2 [101dB (A) @ 10ft/3m] No. of tones 32 (UKOOA / PFEER compliant) No. of stages 3 Volume control Max. 110dB (A); Min. 72dB (A) - Tone 2 Effective range 100m @ 1 KHz Voltages DC 12vdc; 24vdc; 48vdc Voltages AC 115vac; 230vac Stage switching Negative or positive Ingress protection IP66/67 Enclosure material Marine-grade copper free LM6 Aluminum Enclosure finish Chromate & powder coated finish - anti-corrosion Color RAL3000 Red BExS110 horn High impact UL94 V0 & 5VA FR ABS (Red) Cable entries Dual M20 ISO (one stopping plug incl.) Terminals 0.5 - 2.5mm² (20-14 AWG) Enclosure volume Line monitoring Blocking diode included EOL Min. 500 Ohm 2w, or 3k3 Ohm 0.5w resistor or diode (DC versions) can be fitted Grounding stud M5 Temperature range -50° to 70°C (-58°F to 158°F) Relative humidity 90% at 20°C [68°F] WeightDC: 3.00kg AC: 3.20kg Models ModelVoltageCurrent BExS110DF-012x12 VDC /- 255mA BExS110DF-024X24 VDC /- 25&5mA BExS110DF-048X48 VDC /-250mA BExS110DF-115X115 VAC /-10% 50/60Hz110mA BExS110DF-230X230 VAC /- 10% 50/60Hz56mA Approvals • IECEx KEM 10.0003X • IEC 60079-0 : 2011 • IEC 60079-1 : 2007-4 • IEC 60079-31 : 2013 • ATEX KEMA 99ATEX6312X • EN 60079-0 : 2012 A11 • EN 60079-1 : 2007 • EN 60079-31 : 2014 • TR-CU Ex EAC certificate: RU C-GB.AA71.B.00109 • VdS certificate: G206011 • CPD certificate: 0786-CPD-20225 • Safety-integrity level: SIL1 (Standard) • Safety-integrity level: SIL2 (Optional) • Inmetro certificate: 10-IEx-0009 • Marine Equipment Directive (MED) Certificate: MEDB00001BU Coding • II 2G Ex d IIB T4 Ta -50°C to 70°C • II 2G Ex d IIC T4 Ta -50°C to 55°C • II 2D Ex tb IIIC T100°C Db Ta -50°C to 55°C • II 2D Ex tb IIIC T115°C 45 alarm tones – any tone can be assigned to any stage User-configurable continuous frequency tone *SPL data /-3dB (A). Measured at optimum voltage. Specifications Datasheet More Options For You: Explosion Proof Alarm Tomar 1002WEP Intrinsically Safe Alarm Horn Sounder Tomar E2xS1F Intrinsically Safe Omni-Directional Alarm Horn & Xenon Beacon Tomar BEXCS110 Series Explosion Proof Xenon Beacon (10 Joules) Tomar BEXBG10 Series Explosion Proof Fire Alarm Pull Stations Tomar RMS-EX-WP
