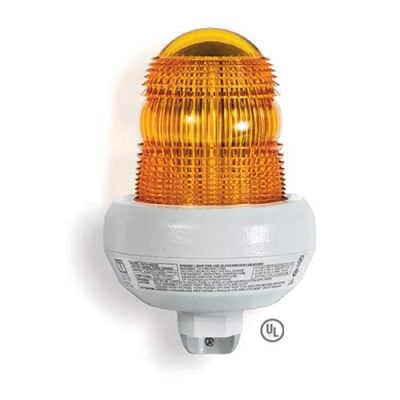

Description Explosion Proof Strobe Tomar 4375S, 12-74 VDC Features: Class I, Div. 2 Groups A, B, C, and D Class II, Div. 2 Groups F and G 10,000 hour strobe lamp .5″ tall x 5.4″ dia. x 3.2 lbs two year warranty on power supply one year warranty on lamp Available in 6 lens colors UL Listed CSA Approved NEMA 4X UL 1598 impact resistant lens Introducing Explosion Proof Strobe Tomar 4375S, 12-74 VDC Tomar Electronics model 4375S hazardous location strobe now features a shatter resistant LexanTM lens. The efficient lens optics, coupled with the high-power 8 joule xenon strobe tube produce 200 Effective Candela (ECP) and 800,000 Peak Candlepower. The model 4375S is UL Listed and CSA Certified for Class I, Division 2, Groups A, B, C and D; Class II, Division 2, Groups F, and G; and Class III. Typical applications include manufacturing plants, chemical and petrochemical processing facilities, sewage treatment plants, off-shore and dockside installations, agricultural, food processing, industrial, mining and marine facilities. The 4375S is available in 12-74 VDC or 120-240 VAC. It is NEMA 4X rated and constructed to IP 66. It is water-tight, dust-tight, and corrosive resistant. It can be operated in any orientation, and features a 3⁄4” ISP pendant mount. Architect and Engineer Specifications: Hazardous Location visual signaling beacon shall be Tomar model number series 4375 or approved equal. The beacon shall be UL Listed Class I, Division II, Groups A,B,C, and D; for use in specified hazardous locations as classified by the National Electric Code. The light source shall be a plug-in field replaceable single-flash xenon strobe lamp. The warning signal must have built-in RFI filters to protect against radio interference and spike voltages. Voltage ranges shall be 12-74VDC and 120-240VAC. The warning light shall be rated NEMA 4X and have a polycarbonate lens. *ECP (Effective Candlepower) is the intensity that would appear to an observer if the light were burning steadily. **Peak Candlepower is the maximum light intensity generated by a flashing light during its light pulse. Specifications: ItemDescription Lamp Type2001 Xenon strobe lamp Lens Type4375–L–Color ( please specify lens color ) Flash Rate80 flashes per minute ± 10% Light Output200 ECP Voltage and Amperage12-74 VDC draws 1.2 Amps at 12 VDC; 590mA at 24 VDC; 370mA 48 VDC; 190mA at 80 VDC 120-240 VAC draws 200mA at 120 VAC; 600mA at 240 VAC Temperature CodeT2 Temperature Rating-55° C to 66° C Power SupplyOutput 15 Watts ( single flash ) 8 joules per flash. 800,000 Peak Candlepower** Size and Weight8.5″ tall x 5.4″ dia. x 3.2 lbs ( 215mm x 137mm x 1.45kg ) Inrush Current1.75 Amps at 24 VDC Explosion Proof Strobe Tomar 4375S, 12-74 VDC Models: ModelDescriptionVoltage 4375S–120-xHazardous location AC strobe120 – 240VAC 4375–1274-xHazardous location DC strobe12 – 74VDC 4375-GuardStainless Steel guard for 4375 series lights Explosion Proof Strobe Tomar 4375S, 12-74 VDC Certifications: 4375S Explosion Proof Strobe CSA Certificate 4375S Explosion Proof Strobe UL Certificate 4375S Explosion Proof Strobe Certificate of Compliance 4375S 12-74 Explosion Proof Strobe Other Resources: 4375S Explosion Proof Strobe Data Sheet 4375S Explosion Proof Strobe Product Information More Options For You: Explosion Proof Warning Supervised DC Strobe Light 4374S-12-74 Explosion Proof Strobe Tomar 4375S, 120-240 VAC
