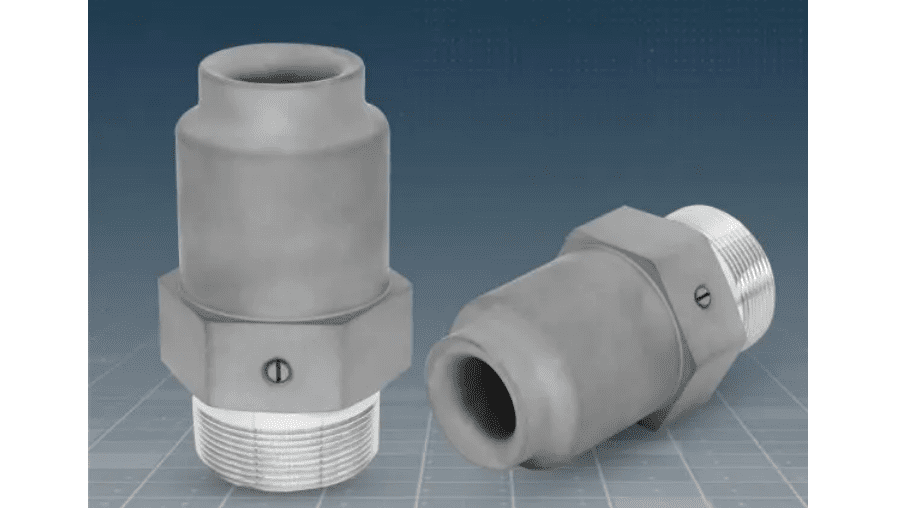

Large Flow Air Atomizing Nozzle

Project Description Large Flow Air Atomizing NozzleDE Series Large flow air atomizing nozzle adopts multi-atomizing, with its powerful function, is widely used for dust removing and desulfurizing in firepower plant, dust removing and environment protection in chemical plant and cement plant. The nozzle can be a double liquid spray nozzle, with steam or air as its second liquid. Third class – atomizing to achieve optimum atomizing capability. Working with high dependability even under the worst condition. Reducing the dosage of compressed air with its high efficiency. Easy Installation. Large Flow Air Atomizing Nozzle Large flow air atomizing nozzle is usually as a part of spray lance, be applied in desulfurizing and denitration in firepower plant and chemical plant. Spraying performance Spray area: Hollow cone-shaped and flat fan-shaped. Spray angle: 20 degree to 90 degree (other angles are available according to the requirement) flow rate: 2.0 to 80L/M. DE Large flow air atomizing nozzle sizes and data: Tube Dia. Spray Angle Spray Nozzle No. Spray Angle Spary Pattern Max. Droplet Size mm Spiry tip No. Dimension mm Weight （kg） A B C D 1″ 14 DE101 20° Narrow round angle Wide Round Angle Flat Round Angle 3.3 14 148 50.8 50.8 64 0.64 DE308 90° 2.69 DE310 60° 2.69 DE402 90° 4.22 DE404 60° 4.22 20 DE103 20° 6.6 20 148 50.8 50.8 50.8 0.64 DE307 90° 3.48 DE309 60° 3.48 DE401 90° 5.21 DE403 60° 5.21 1-1/2″ 28 DE2100 20° 9.27 28 229 50.8 55.6 113 1.5 DE2310 90° 4.65 DE2303 60° 4.65 Standard Materials: 316 stainless with cobalt metal wearable jacket. DE can be installed in all ways, as the picture shows,These applications of the device is just for individual customers. If you need more information, please contact the engineering department of CYCO. We can offer a engineering manual of the DE series. Installation Instruction of DE Large flow air atomizing nozzle: Since when the pressure of the fluid has a tiny change, the flow rate would have a big variation, CYCO kindly advice that you should control the flow rate with metering pump or other metering equipment which would be better. Performance Data of DE Large flow air atomizing nozzle: (Narrow angle, Wide angle and Flat fan, 1″ to 1-1/2″ BSPT or NPT) BSP NPT Capacity 1.0 bar air pressure 3.0 bar air pressure 7.0 bar air pressure Liquid l/min Liquid bar Air nm3/h Liquid l/min Liquid bar Air nm3/h Liquid l/min Liquid bar Air nm3/h 1″ 14 2 0. 9 25. 0 2 2. 8 60. 2 2 6. 4 149 3 0. 9 20. 2 3 2. 8 56. 8 3 6. 5 146 4 1. 0 17. 3 4 2. 9 50. 8 4 6. 5 134 5 3. 0 43. 8 5 6. 6 117 6 3. 0 41. 2 6 6. 7 112 7 3. 0 38. 5 7 6. 8 107 8 3. 1 35. 4 8 6. 9 100 9 7. 0 93. 2 10 7. 1 86. 0 11 7. 2 83. 6 12 7. 3 80. 3 20 4 0. 2 34. 9 4 2. 4 91. 7 4 5. 6 180 8 0. 8 24. 3 8 2. 6 68. 1 8 6. 0 163 11 2. 9 56. 3 11 6. 0 151 15 3. 0 45. 8 15 6. 4 126 19 3. 1 39. 0 19 6. 7 116 23 3. 3 36. 7 23 6. 8 96. 7 26 3. 5 31. 8 26 6. 9 90. 2 30 7. 1 87. 4 34 7. 3 73. 2 38 7. 5 64. 2 11/2″ 28 40 3. 1 76. 3 40 7. 0 229 45 3. 2 69. 0 45 7. 3 208 50 3. 3 61. 8 50 7. 3 189 55 3. 4 55. 5 55 7. 4 175 60 3. 5 49. 1 60 7. 5 162 65 3. 6 43. 1 65 7. 6 152 70 3. 8 37. 5 70 7. 9 145 75 4. 0 32. 1 75 8. 2 141 80 4. 2 27. 1 80 8. 2 139 Standard material: 316 stainless steel, co alloy 6 weared sheath. Other material please find the stock list as reference. Please clearly indicate: the pipe diameter, way of connection, nozzle type, spray angle and material. Download SpecificationAny question about this product, please email [email protected], you will get back with 24 hours Reach out for an opportunity inquiry to our expert Your Email* Your Description ×
