Nozzle Head Flat Pressure Air Atomizing

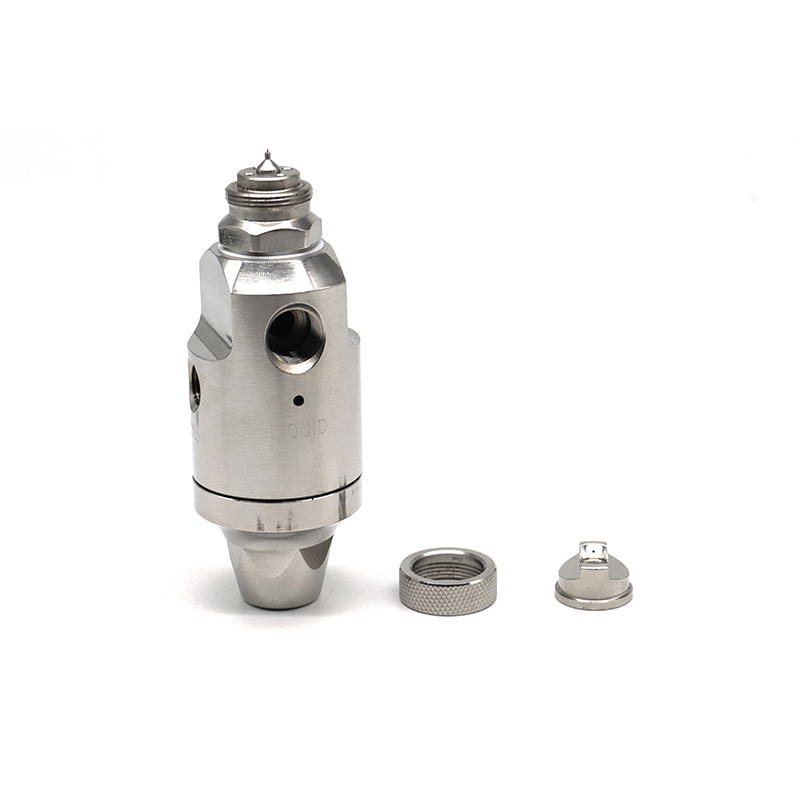

Project Description Flat Pressure Air Atomizing Nozzle HeadFlat Pressure Air Atomizing nozzle Head is a nozzle head that can be installed on various kinds of air atomizing nozzles. It could produce a fan-shaped spraying pattern by using this nozzle head (also called air cap) shape. General Description: With the external mixing, the air pressure can be changed to control atomizing without changing the liquid flow rate. As the picture shown, size ‘A’ is the flow width of fan-shaped spraying, ‘D’ is the total distance from the nozzle body to the maximum dispersing area. Design Features of Siphon Gravity-Fed Air Atomizing Nozzle Head: Exterior composite air cap The exterior composite air cap, used in these spray equipments, produce fan-shaped spraying. Remark: No. 11 58 guard ring and No.3612 gasket should be ordered separately from spray device,but they are also parts of the standard spray nozzle. Performance Data of Flat Pressure Air Atomizing Nozzle Head: model consists of air cap and fluid cap liquid flow (L/min) and flow (L/min) Size Water pressure (bar) 0.2bar 4bar Air (bar) liquid (bar) A (cm) B (cm)  C (cm) D (cm) Air pressure (bar) Water (L/h) Air (L/min) Air pressure (bar) Water (L/h) Air (L/min) SUE 15B Liquid Cap 1650 and Air Cap 67228-45° 0.2 25.2 2.8 2.8 73.6 11 0.2 0.2 9 15 23 0.9 0.35 26.3 3.5 85 1.05 0.2 9 15 23 1.2 0.7 31.2 4.2 102 1.4 0.35 10 15 23 1.2 1.05 39.6 4.9 119 1.4 1.4 11.5 18 25 1.5 1.4 45.3 5.3 127.5 1.75 0.7 11.5 15 24 1.5 1.75 53.8 5.6 139 2.8 1.4 13 18 28 1.8 2.1 59.4 6.3 159 4.9 2.8 15 18 24 2.4 SUE 18B Liquid Cap 1650 and Air Cap 67228-45° 2.8 11 0.4 0.3 20 28 33 1.2 0.35 22 0.7 34 0.6 0.7 23 30 40 1.8 0.4 25 1.1 45 0.6 1.5 28 35 46 1.8 1.1 1.5 28 33 43 2.4 0.5 27.5 1.8 62 1.4 1.5 25 30 41 2.7 0.6 28 2.5 79 1.1 2 28 35 48 2.6 1.4 3 30 38 51 2.7 SUE 15A Liquid Cap 2050 and Air Cap 67228-45° 0.35 26.3 4.5 3.15 82 16.6 0.35 0.2 7.5 14 22 1 0.7 31.2 3.5 85 1.4 0.2 9 15 22 1.7 1.05 39.6 4.2 102 1.75 0.35 10 16.5 23 1.8 1.4 45.3 4.9 119 1.75 1.4 13 19 29 2.1 1.75 53.8 5.25 127 2.1 0.7 13 18 25 1.8 2.1 59.4 6.3 159 3.5 1.4 13 22 0 2.4 2.8 73.6 6.7 164 5.3 2.8 15 19 25 3 SUE 18A Liquid Cap 2050 and Air Cap 62240-60° 4.5 33 0.7 0.2 13 16.5 25 1.2 0.35 22 1.1 45 1.75 0.2 13 16.5 25 1.8 0.6 28 1.4 54 2.1 0.35 13 18 24 1.8 2.5 1.4 14 20 32 1.8 0.7 34 2.1 71 2.8 0.7 14 19 30 2.3 1.1 45 2.5 79 4.2 1.4 14 20 36 3 5.3 2.8 16.5 20 30 4 SUE 15 Liquid Cap 2850 and Air Cap 67228-45° 0.7 31.2 8.5 3.5 85 33 0.7 0.2 13 16.5 25 1.2 1.05 39.6 4.2 102 1.75 0.2 13 16.5 25 1.8 1.4 45.3 4.9 119 2.1 0.35 13 18 24 1.8 1.75 53.8 5.3 127 2.5 1.4 14 20 32 1.8 2.1 59.4 5.6 139 2.8 0.7 14 19 30 2.3 2.8 73.6 6.3 159 4.2 1.4 14 20 36 3 3.5 85 7 176 5.3 2.8 16.5 20 30 4 SUE 18 Liquid Cap 2850 and Air Cap 62240-60° 8.5 33 0.6 0.3 35 48 61 1.8 0.4 25 1.4 54 0.6 0.7 35 48 63 1.5 0.5 27.5 1.8 62 0.7 1.5 38 48 63 1.8 1.1 1.5 41 51 66 2.1 0.6 28 2.1 71 1.4 1.5 43 53 66 2.4 0.7 34 2.5 79 1.8 2 41 51 69 2.7 2.1 3 41 51 69 2.9 SPECIFICATION SHEETYou can email [email protected] for more information, and you will get a reply within 24 hours. Reach out for an opportunity inquiry to our expert Your Email* Your Description ×
