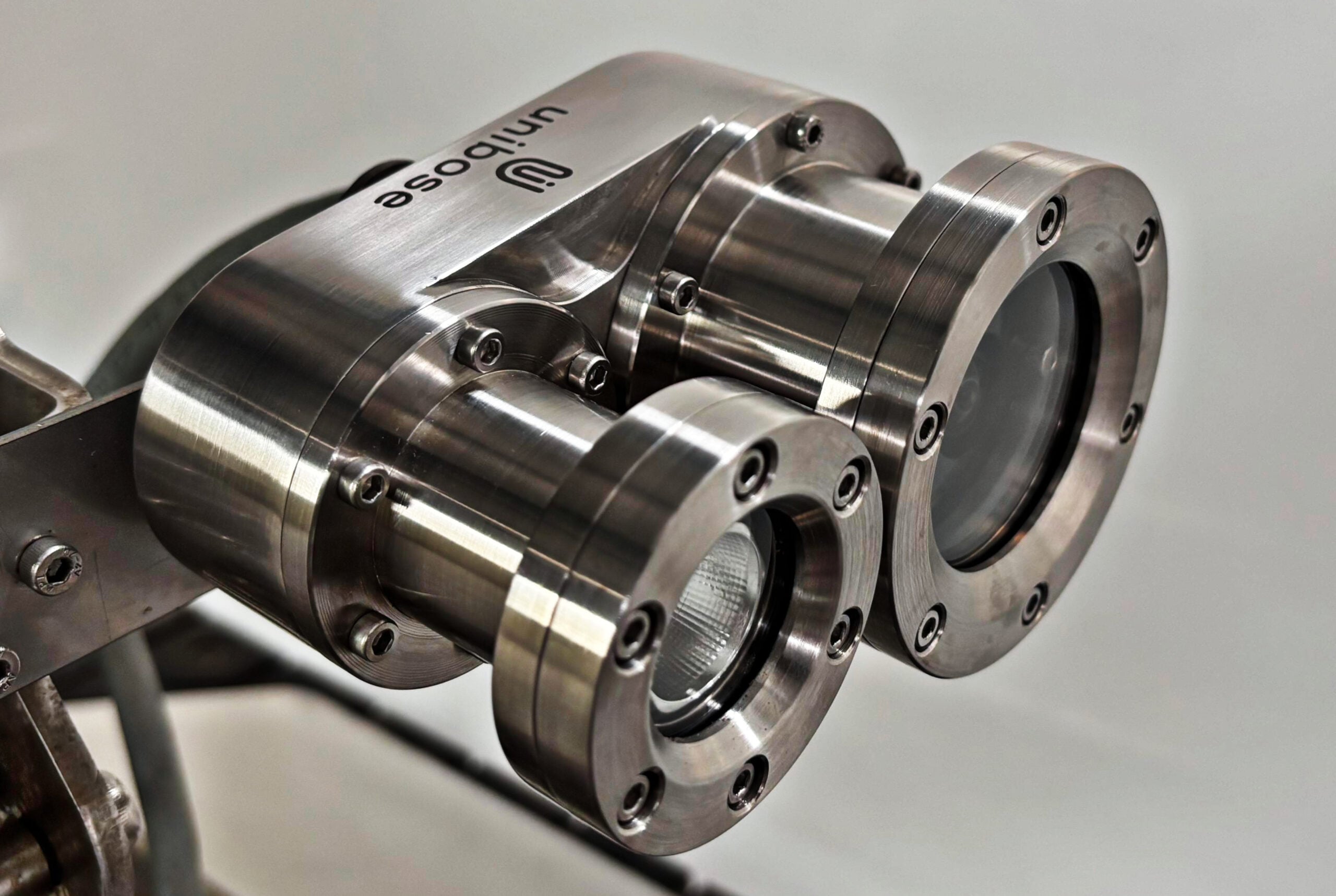

Description Intrinsically Safe ATEX Zone 0 UCAM Camera The Intrinsically Safe ATEX Zone 0 UCAM Camera, engineered for real-time video monitoring in hazardous environments with continuous presence of flammable gases or vapors. Designed for critical inspections in oil & gas, chemical, nuclear, and pharmaceutical industries, it ensures operator safety during tank, pipeline, and confined space monitoring. Built with a robust SS316 stainless steel enclosure and a toughened glass window, the ATEX-UCAM features VGA resolution (640×480), integrated LED lighting (62 lumens) in a separate optical channel to eliminate reflection from oil or sludge, and operates reliably from -20°C to 60°C. Compatible with control units and cable reels up to 100 meters. Key Features: ✅ ATEX Zone 0 Certified: II 1G Ex ia IIC T4 Ga ✅ VGA PAL video signal (640×480) with rolling shutter at 50fps ✅ LED lighting (62 lumens) in a separate optical compartment ✅ IP68 ingress protection – dustproof & submersible ✅ Operating temperature: -20°C to 60°C ✅ Suitable for Hydrogen-rich environments ✅ Supports cable reels of 50m, 75m, or 100m ✅ Optional stainless steel slipring enclosure and cable winder ✅ Up to 4 cameras per control or display unit �� Package Options: �� ATEX Zone 0 Camera with intrinsic power supply unit NOTE: Final pricing may vary based on cable length, mounting accessories, and configuration. Request for quote. ATEX-UCAM Technical Specifications: FeatureDetails CertificationATEX Zone 0 – II 1G Ex ia IIC T4 Ga ResolutionVGA 640x480 PAL ShutterRolling shutter 50fps LED Light62 lumens (cool white) Operating Temperature-20°C to 60°C MaterialSS316 Stainless Steel Ingress ProtectionIP68 Connector6 Pin Connector Max Cable Length100 meters OptionalSlipring & Cable Winder Certifications & Compliance: �� ATEX – II 1G Ex ia IIC T4 Ga (Zone 0) �� Certificate No. – TUV CY 24 ATEX 0207053 X �� Ingress Protection – IP68 (dustproof & submersible) �� Temperature Range – -20°C to 60°C �� Suitable for Hydrogen Rich Environment ��Download Datasheet Applications of ATEX-UCAM: �� Oil & Gas �� Chemical Processing �� Pharmaceutical �� Nuclear Plants �� Waste Management What’s in the Box? �� 1x ATEX-UCAM Inspection Camera �� 1x Intrinsic Power Supply Unit �� 1x Custom Cable (50m/75m/100m) �� 1x Stainless Steel Slipring Enclosure (Optional) �� 1x Stainless Steel Cable Winder (Optional) �� 1x Documentation Kit Ordering & Shipping Details �� Lead Time: 12 weeks �� Shipping Terms: Worldwide Freight Available �� Payment Options: Credit Card, Wire Transfer, Net 30 Terms Related Products: �� ATEX-ULIT Explosion Proof Flood Light – Zone 0 FAQs: Can this camera be used for pipeline inspections? Yes, it is designed for tanks, pipelines, reactors, and confined spaces. Does it include onboard lighting? Yes, it has an integrated 62-lumen LED light in a separate channel to reduce glare. Is the slipring necessary? Optional for applications requiring continuous rotation or higher mobility. What’s the video resolution? VGA 640×480 with PAL signal.
