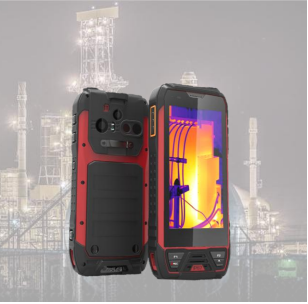

Description Aegex620TC™ Android Thermal Handset The Aegex620TC™ is a purpose-built intrinsically safe mobile solution designed for Zone 2 hazardous environments where thermal monitoring is critical. This rugged handset allows oil and gas, chemical, and manufacturing professionals to perform multi-data capture and detect temperature variances between targets and their surroundings safely in volatile atmospheres. Powered by a MediaTek MT8768 Octa-core processor and running Android 11 (GMS), the Aegex620TC™ delivers smooth performance for enterprise applications. The device features a high-brightness 5″ HD display (500 nits) with a 5-point capacitive touch screen, ensuring clarity and ease of use during outdoor inspections or complex maintenance tasks. Key Features: ✅ Zone 2 Certification, IECEx, ATEX, ANSI UL (Pending) ✅ Android 11 (GMS) ✅ IP67 Ingress Protection & 1.5m Drop Resistance ✅ Connectivity: 4G LTE, Dual Micro SIM, Wi-Fi 802.11 a/b/g/n/ac, Bluetooth 5.0, and NFC ✅ Dual Cameras: 13MP Rear with OIS/AF and 5MP Front; Integrated 80 x 60 Thermal Imaging ✅ GPS/Beidou/GLONASS for precise location tracking ✅ 5100mAh Li-ion battery with 8-10 hours of cruising endurance ✅ PTT (Push To Talk) supported with a maximum distance of approximately 5KM ✅ Physical custom buttons including Power, SOS, UD1/UD2, and dedicated Camera/PTT keys �� Package Options: �� Standard Model: G60Pro Dual 4G R1.0 �� Storage: 64GB Internal, expandable via Micro SD up to 128GB Aegex620TC™ Technical Specifications: FeatureDetails ProcessorMediaTek MT8768 Octa-core (Up to 2.0GHz) 1 Operating SystemAndroid 11 (GMS) 1 Display5" HD TFT (720 x 1280), 500 nits brightness Memory / Storage4GB RAM / 64GB ROM (Expandable to 128GB via SDIO 3.0) 1 Thermal Camera80 x 60 Pixels; Range: -10°C to 140°C 1 Main Camera13MP Rear with OIS and AF; 5MP Front 1 Hazardous CertificationZone 2, IECEx, ATEX, ANSI UL (Pending) RuggednessIP67 Ingress Protection; 1.5m Drop Resistance Battery5100mAh Li-ion; 8-10 hours runtime 1 Connectivity4G LTE, Dual Micro SIM, Wi-Fi ac, BT 5.0, NFC 1 Weight531g Certifications & Compliance: �� ATEX/IECEx – Certified for Zone 2 hazardous locations. Pending �� ANSI UL – Pending certification for North American hazardous standards �� MIL-STD-810G – 1.5m drop resistance for extreme durability �� First to buy Aegex Thermal Handset 2026 �� Download Datasheet Applications of Aegex620TC™: �� Oil & Gas �� Chemical Plants �� Mining �� Labs �� Manufacturing What’s in the Box? �� 1x Aegex620TC™ Handset �� 1x 5100mAh Li-ion Battery �� 1x USB Cable �� 1x Documentation Kit Ordering & Shipping Details �� Lead Time: Contact for availability �� Shipping Terms: Worldwide / Expedited Options �� Payment Options: Credit Card, PayPal, Net 30 Terms Related Products: �� Aegex10 Rugged Tablet �� Intrinsically Safe Charging Cradle for Aegex620TC �� Spare 5100mAh Battery Pack FAQs: What is the range of the thermal camera? The thermal imager features a scene dynamic range of -10°C to 140°C with an 80 x 60 pixel resolution. Is the battery user-replaceable? Yes, the device uses a rechargeable 5100mAh Li-ion battery. Does it support Push-to-Talk? Yes, it includes a dedicated PTT button and supports communication up to a 5KM distance. What is the standard warranty? The Aegex620TC™ comes with a 3-year warranty.
