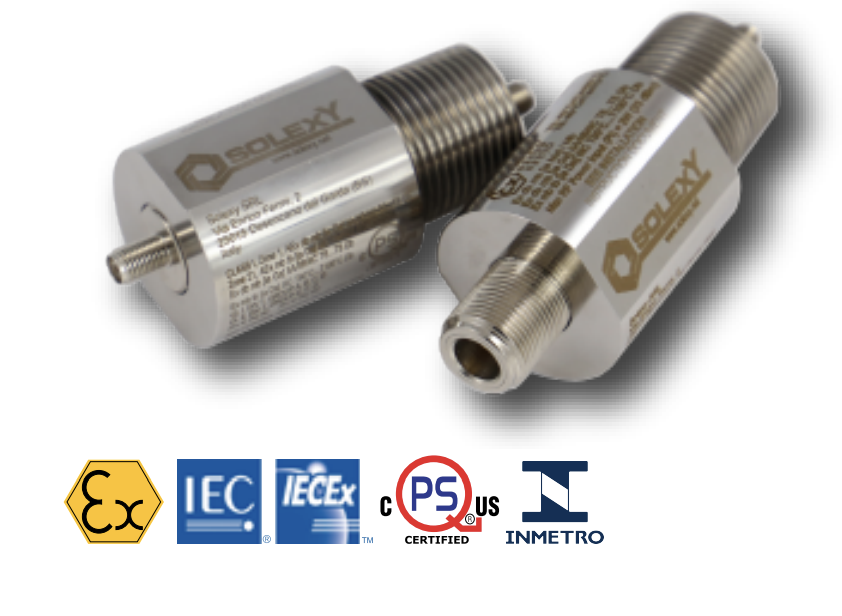

Description SOLEXY ANTENNA COUPLERS UX SERIES Solexy antenna couplers UX series patented explosion-proof antenna coupler enables the installation of non-Ex certified antennas in hazardous areas. This coupler is designed to integrate directly with listed explosion-proof housings or conduit fittings. An integrated blocking circuit actively prevents hazardous energy from reaching the antenna in the event of a radio, modem, or access point failure. Additionally, it facilitates antenna removal in hazardous areas. The coupler’s robust design enables connection to virtually any radio and antenna, providing a highly flexible and cost-effective solution for hazardous area radio system deployment. Furthermore, it can serve as a cable bulkhead. Fitting is approved for hazardous locations and can be easily installed with a simple wrench. SPECIFICATIONS: N Female antenna connection compatible with N Male antennas 3/4” NPT-M thread connection Stainless steel housing RP-SMA Female coaxial connector suitable for RP-SMA Male radio connection Double connector design, eliminating the need for coaxial cable Optimized frequency range from 300MHz to 9GHz INMETRO apparatus certified: Ex db mb [ia Ma] I Mb; Ex db mb [ia Ga] IIA/IIB/IIC T6….T5 Gb; Ex mb tb [ia Da] IIIC T80°C….T100°C Db Maximum RF power input: 7 Watts (38.4 dBm) Ambient temperature range: -40°C to 85°C (T5) / 75°C (T6) SOLEXY ANTENNA COUPLERS UX SERIES FEATURES: Short Circuit Protection: Equipped with integrated blocking circuitry. Environmental Protection: All essential circuitry is recessed into the fitting and encapsulated to withstand harsh environments. No Sealing Fitting Required: Allows for the installation of a wide variety of passive antennas in hazardous areas. Antennas can be removed or installed with power on, making it ideal for cable bulkhead connections. Extended Frequency Range: The UX series covers a broad range of frequencies with a single version, spanning from 300 MHz to 9 GHz, with minimal loss across the spectrum. Certification: The UX Series holds certifications from Atex, IECEX, and INMETRO, and is approved for use in the USA & Canada as an apparatus. It can be installed per the conditions of acceptability, without further assessment. North American approval (USA & Canada) includes classification & division and zones. IECEX certification is issued by an Australian notified body, allowing the UX to be installed in Queensland mines. INMETRO certification extends the barrier’s suitability for applications in Brazil. THE CERTIFICATION IS INCLUDED IN THE DATASHEET BELOW. Datasheet: Components UX series
