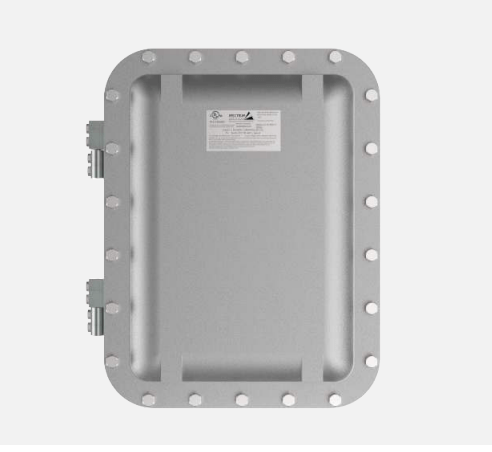

Description Spectrum EX-JB-H-POE-8-BD Explosion-Proof Junction box The Spectrum EX-JB-H-POE-8-BD Explosion-Proof Junction box serves as the housing for a ruggedized switch, ideal for deployment in challenging environments within a surveillance cabinet. Engineered to withstand shock, vibrations, and temperatures ranging from -25°C to 40°C, this solution is well-suited for demanding installations, especially in critical infrastructures. Additionally, it holds a UL Listed Class I II Div 1 Gr. BCDEFG T5 certification, ensuring its reliability and safety in hazardous settings. Features: Device Management Capacity: Capable of managing up to 8 devices simultaneously for efficient operation. NEMA TS-2 Compliance: Meets NEMA TS-2 standards, ensuring robust performance suitable for transportation systems. UL Listed: Holds UL Listing, guaranteeing safety and reliability in diverse applications. Class I/II, Division 1 Compliance: Complies with Class I/II, Division 1 standards, making it suitable for hazardous environments. Groups BCDEFG T5 Certification: Certified for Groups BCDEFG T5, meeting stringent safety standards for diverse industrial settings. Temperature Range: Operates within a temperature range of -25°C to 40°C, providing versatility for various environmental conditions. Max PoE Budget: Offers a maximum Power over Ethernet (PoE) budget of 480 watts. Simultaneous Port Power: Provides 60 watts on all 8 ports simultaneously and up to 90 watts on 4 ports simultaneously for flexible power distribution. Spectrum Explosion-Proof Junction box Specifications: Technical Data Spectrum EX-JB-H-POE-8-BD Switch detailsThe SISPM1040-582-LRT is a managed PoE switch suitable for connecting and powering devices in hardened environments. It has (8) 10/100/1000 PoE ports with (2) 100/1000 dual speed SFP slots. The switch can supply up to 90 Watts per port on (4) ports or 60 Watts per port on (8) ports simultaneously. The switch also includes the embedded Device Management System (DMS) software that provides the advanced tools necessary for total management of all IP addressable devices. The unique DMS provides security integrators with lower overall cost, less downtime and easier management of the entire PoE network StandardsIEEE 802.3 IEEE 802.3u IEEE 802.3z IEEE 802.3ae IEEE 802.3x IEEE 802.3ad IEEE 802.1D IEEE 802.1w IEEE 802.1s IEEE 802.1Q IEEE 802.1p IEEE 802.1ad IEEE 802.1AB IEEE 802.3af IEEE 802.3at IEEE 802.3bt IEEE 802.3ah IEEE 802.1ag IEEE 802.3az IEEE 1588 v2 ITU-T Y.1731 ITU-T G.8031 ITU-T G.8032 IEC62439-2 ProtocolsCSMA/CD TechnologyStore-and-forward switching architecture Connectors(8) 10/100/1000 Mbps RJ-45 ports (2) 100/1000 Mbps SFP slots (1) Console RJ-45 port MAC Address8K MAC address table Backplane20 Gbps DIP SwitchRapid Ring Setting (2-Pin) Reset ButtonReset the switch, restore factory default Digital Output (relay)24VDC/1A Digital InputLevel 0 (low): 0V to 6V Level 1 (high): 10v to 24V Power Consumption13 Watts (without PoE) Power Input120-240VAC Power over ethernetMax PoE Budget 480 watts 60 watts for (8) ports simultaneously Up to 90 watts on (4) ports simultaneously General Dimensions444.5 x 342.9 x 215.9 mm ( 17 1/2 x 13 1/2 x 8 1/2 in. ) Weight28.21 kg ( 62.2 lb ) MaterialAluminum Operating Conditions-25°C to 40°C UL Listed File NumberE481600 Explosion-proof CertificationsClass I/II Division 1 Groups BCDEFG T5 Warranty3-year limited warranty, see spectrumcamera.com/warranty Spectrum Explosion-Proof Junction box Resources: Spectrum-EX-JB-H-POE-R-Datsheet
