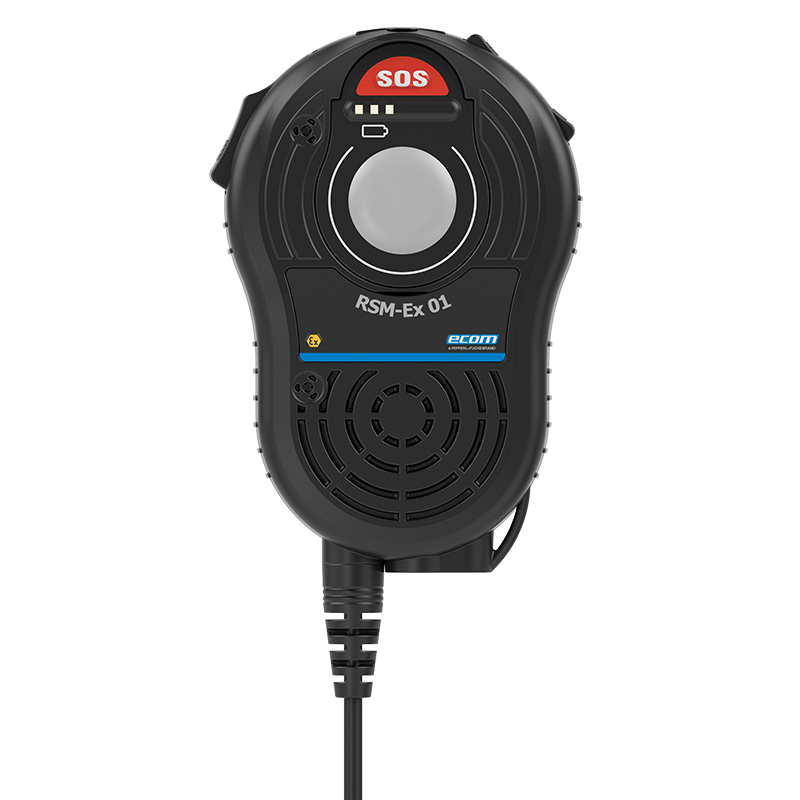

Description The RSM-Ex 01 is IP65/67 rated and includes an integrated noise reduction function. It is capable of producing crystal-clear audio at a high level (up to 103 dB). The RSM is simple to operate, even when wearing gloves. The new 3.5 mm plug is designed for industrial use and features a durable design, a safety screw for secure attachment to a smartphone, and interoperability with current and future Ecom devices. Using the standard 3.5 mm socket, additional headsets can be attached. Features: ATEX Zone 1/21 IECEx Wired connection or wireless (Bluetooth version planned) Outstanding volume and sound performance – Up to 103 dB Extremely long operating times with high voice volume – Up to 78 hours Good operability, even with gloves Li-Ion 2200 mAh Build-in NFC Chip IP65/67 Lone worker ready (optional SOS button) Additional multi-functional buttons and a dedicated SOS button 2200 mAh Li-ion battery pack for a long operating time Linguistic feedback when changing individual modes Magnetic charging cable & optional charging cradle IoT Ready: “Custom Service Load” allows individual button settings for sending custom commands to servers and other IoT switches – e.g. to open a gate (only for Ex-Handy 10 Series) Specifications: LOUDSPEAKER PERFORMANCEUp to 103 dB POWER SUPPLYLi-Ion 2200 mAh CHARGINGCharging cable and docking station with magnetic charging plug: similar concept to Smart-Ex® 01 or Ident-Ex® 01. A docking station without any electronics and a mounting option for the charging plug. Optical charging level indication (multiple LEDs) PLUG3.5 mm 4-pin headset jack with locking mechanism for Smart-Ex® 01 / 201 and Ex-Handy 09 / 209 versions 3.5 mm 4-pin headset jack with locking mechanism for ecom next-generation phones 3.5 mm 4-pin headset jack for standard Android and Windows devices BUTTONSPTT button operable with thick gloves Front-facing multi-function button Volume up / down SOS button (optional) FEATURESLone worker ready (optional SOS button) IOT ready (4 standard Google intents usable and/or optional 4 additional Android intent) Build in NFC Technology TEMPERATURE RANGETa = -20 … 55°C IP RATINGIP 64 following EN/IEC 60079-0 (ATEX/ IECEx). IP 65 / 67 following EN/IEC 60529 (industrial standard). ACCESSORIESRemovable belt clip Charging cable Docking station (optional) Connection of additional headsets (optional) RUN TIMES**Use time in % with typical user profilesNoisy areas with sound level above 100 dBNoisy areas with sound level between 84 and 100 dBNoisy areas with sound level up to 84 dB Speak / Hear / Standby 05 / 05 / 90-> 47 h-> 60 h-> 78 h 25 / 25 / 50-> 16 h-> 27 h-> 45 h 50 / 50 / 0-> 9 h-> 16 h-> 30 h Highest noise level (8/8)*Very high noise level (4/8)*High noise level (2/8)* *There are 8 different volume levels possible. **determined runtimes on the Smart-Ex® 01 based on RSM-Ex 01 software version V 16 STANDBY TIMEApprox. 80 hours after commissioning via the 3.5 mm jack of an Android or Windows device Certifications: ATEX Certificate IECEx Certificate SGS Certificate Resources: Datasheet – English Datasheet – German Instruction Manual
