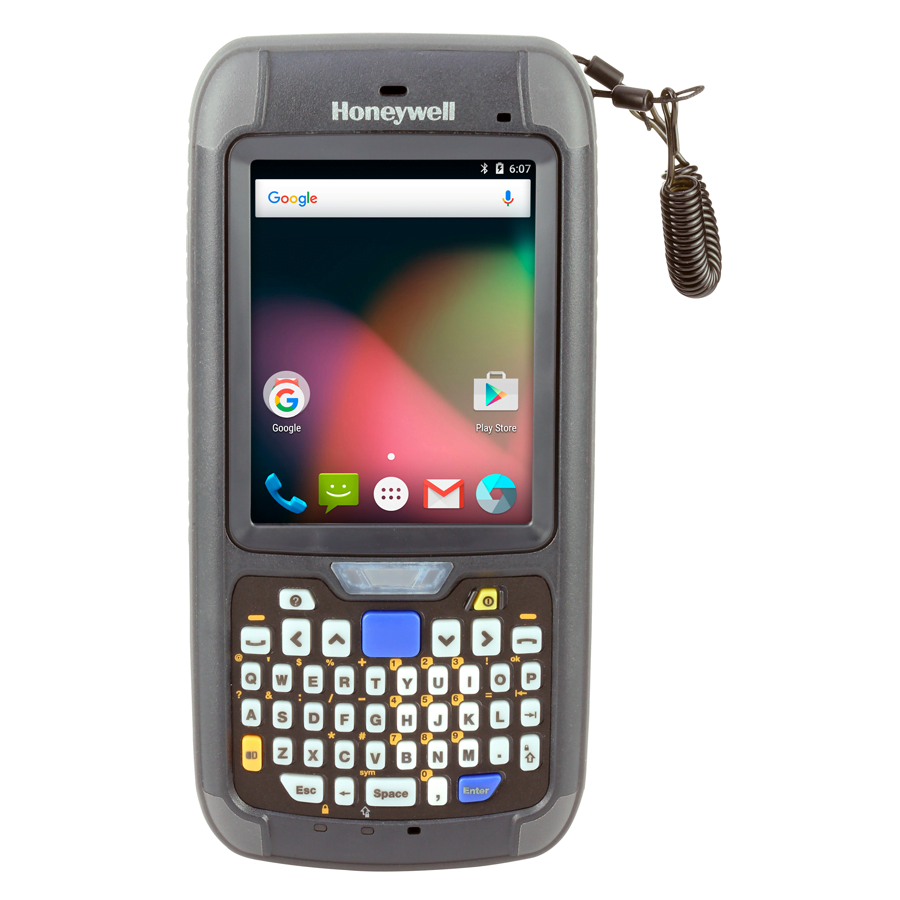

Honeywell CN75 Handheld Computer

Description The ultra-rugged mobile PC is now available. Honeywell CN75 is a Class I, II, III Division II certified intrinsically safe handheld computer for use in hazardous environments. CB Test, NRTL, FCC, Bluetooth SIG, and Wifi Alliance approvals are all on board. The Honeywell CN75 and CN75e mobile computers provide clients with the flexibility they want by allowing them to choose between a Windows or Android operating system on a single device to satisfy evolving enterprise business demands. A 1.5 GHz dual-core, multi-engine processor with 2 GB RAM and 16 GB Flash power the no-compromise architecture, providing the highest level of future-proofing potential. The Honeywell has been created specifically for mobile field service professionals who want power and performance in a small package. CN75 mobile computer offers the perfect balance of ruggedness, duty cycle and ergonomics while providing unparalleled versatility. CN75e device offers the same power-packed computing but with a larger keypad design, making it ideal for delivery environments where workers may be wearing gloves or have more data input–intensive applications. Features: Suitable for use in Division 2 locations cULus Listing – ISA/ANSI 12.12.01 Class I – Groups A, B, C, D, Class II – Groups F, G and Class III 50°C (122°F) T6 CN75LAN, CN75WAN cULus Listed, BSMI Class B – FCC/ICES/EN, GOST-R FCC, Industry Canada, A-tick (AU), NCC, IDA, ICASA, POSTEL, NTC, ETA, SIRIM, ANATEL EU Directives-WEEE Microsoft® Windows Embedded Handheld 6.5 Android 6.0 Marshmallow with GMS RAM: 2 GB ROM: 16 GB Flash 3.7 V, 4000 mAh High-durability touch screen Hardened Corning® Gorilla® Glass display Skynax® Mobile Communications 5-megapixel auto-focus color camera with LED flash EA30 High-Performance Motion-Tolerant 2D Imager IP67 Rain and Dust Resistance Versions: CN75A HONEYWELL, CN75A, NUMERIC, EA30 STND RANGE, CAMERA, 802.11ABGN, BT, WEH 6.5, WW ENGLISH, NON-INCENDIVE, FCC CN75E HONEYWELL, NCNR, CN75E, NUMERIC, EA30 STND RANGE, CAMERA, 802.11ABGN, BT, WEH 6.5, WW ENGLISH, NON-INCENDIVE, FCC The CN75 and CN75e mobile computers offer unrivaled dependability thanks to smart battery technology that offers enough power to last a complete work shift, eliminating dead batteries and downtime. The CN75 and CN75e mobile computers also have a high-performance imager that delivers quick and accurate barcode scanning even in low-light scanning conditions, as well as unsurpassed motion tolerance to reduce expensive delays in scan-intensive applications. The no-compromise architecture also applies to radio connections. The wide-area solutions include a Flexible Network voice and data WWAN radio that works on networks all over the world, allowing users to switch networks on the fly and removing the need for several pools of devices committed to a single network. FEATURES and BENEFITS Flexible Operating System Support Supports Windows Embedded Handheld 6.5 and Android 6.0 Marshmallow operating systems for flexible application support and migration. Broad Network Coverage Flexible radio technology provides optimal network coverage and a superior solution for implementing least-cost routing strategies. Built for Rugged Environments Withstands 2.4 m (8 ft) drops to concrete, 2,000 (1 m) tumbles, and has an IP67 seal rating against rain and dust. Powerful, Integrated Barcode Scanning Advanced barcode imaging technology with motion tolerance for snappy scanning and white illumination with laser aiming for high read rates. Broad Enterprise Compatibility Full compatibility with printers, software, communications, and a complete set of peripherals, enabling a comprehensive enterprise business solution. Specifications PHYSICAL CHARACTERISTICS CN75 Dimensions with Battery:L x W x D: 16.9 cm x 8.0 cm x 3.4 cm (6.65 in x 3.15 in x 1.34 in) Weight:450 g (15.9 oz) with battery CN75e Dimensions with Battery:L x W x D: 19.5 cm x 8.0 cm x 3.4 cm (7.66 in x 3.15 in x 1.34 in) Weight:491 g (17.3 oz) with battery ENVIRONMENTAL Operating Temperature:-20°C to 60°C (-4°F to 140°F)* Storage Temperature:-30°C to 70°C (-22°F to 158°F) Charging Temperature: 5°C to 35°C (41°F to 95°F) Relative Humidity:Non-condensing, 95% Rain and Dust Resistance:IP67 Drop Spec:2.4 m (8 ft) to concrete per MIL-STD 810G, 1.8 m (6 ft) to concrete across operating temperature range per MIL-STD 810G, 2,000 (1 m) tumbles per IEC 60068-2-32 specification Electrostatic Discharge: /-15 kV air discharge /-8 kV direct discharge POWER Battery Pack:3.7 V, 4000 mAh; IEEE 1725 compliant, Li-Ion, removable, rechargeable OPERATING SYSTEMMicrosoft® Windows Embedded Handheld 6.5 or Android 6.0 Marshmallow with GMS MULTI-ENGINE PROCESSOR ARCHITECTURETexas Instruments 1.5 GHz OMAP 4470 dual-core, multi-engine processor architecture MEMORY RAM:2 GB ROM:16 GB Flash Storage Expansion:Customer-accessible micro-SD slot for removable memory cards up to 32 GB DISPLAY8.9 cm (3.5 in) Transmissive VGA 480 x 640 pixels 65,536 (16-bit RGB) colors High-durability touch screen Hardened Corning® Gorilla® Glass display for superior durability LED backlight Ambient light sensor STANDARD COMMUNICATIONSUSB – Full Speed 2.0 Host, USB – Full Speed 2.0 Client SOFTWARE APPLICATIONS AND COMPONENTS Device ManagementSmartSystems™ Foundation provides a single,integrated environment for hands-free deployment and management of devices on-site or remote. Also compatible with leading third-party data and device management products. ScanNGo for easy barcode-based enterprise-wide device provisioning. It can be used to download device management software from Honeywell ISVs. CloneNGoCloneNGo, a peer-to-peer device management software that enables simple device cloning, eliminating the need to use a management console for device provisioning. Application DevelopmentHoneywell Developer Library Device Health MonitoringOn-board monitoring of key subsystems including scanning, communications and battery life Optional Honeywell Enterprise Client PackTerminal Emulation and HTML 5 Browser Optional LauncherApplication locking DATA MANAGEMENTSkynax® Mobile Communications INTEGRATED RADIOS Wireless WAN:Worldwide Voice and Data (can switch between UMTS and CDMA radio networks) UMTS/HSPA UMTS Frequencies:800, 850, 900, 1900, 2100 MHz GSM/GPRS/EDGE Frequencies:850, 900, 1800, 1900 MHz Max Speeds (Network Dependent):Uplink – 5.76 Mbps; Downlink – 14.4 Mbps CDMA/EV-DO Rev A Dual Band CDMA2000 Bands:BC0 & BC1 (800/1900 MHz) Max Speeds (Network Dependent):Uplink – 1.8 Mbps; Downlink – 3.1 Mbps Wireless LAN:IEEE 802.11 a/b/g/n Security:Wi-Fi Certified for WPA and WPA2, WAPI Certified Authentication:802.1x Cisco Compatibility:CCXv4 Encryption:WEP (64- or 128-bit), AES, TKIP Wireless PAN:Integrated Bluetooth® Power Class 1.5 Version 4 GLOBAL POSITIONING SYSTEM(with WAN Radio Option) 12-channel integrated GPS; network-independent autonomous mode; supports assisted operation via XTRA®, CP E911 GPS dedicated AT commands Protocol:NMEA-0183 V2.3 Tracking Sensitivity:better than -158 dBm GLONASS support SENSOR TECHNOLOGY AccelerometerEmbedded accelerometer enables automatic or application-specific features such as screen rotation or system suspend AUDIO SUPPORTSupports VoIP/speech recognition/push-to-talk applications; front and rear speakers; rear speaker >80 dB at 40 cm (15.7 in); front receiver and front panel microphone for handset audio communication and audio recording; wireless Bluetooth headset support; wired headset support via snap-on adapter INTEGRATED SCANNER EA30 High-Performance Motion-Tolerant 2D Imager(up to 500 in/s) white LED illumination; red laser aimer and framer optimized for all lighting conditions. Capable of scanning all common 1D and 2D barcodes; 1D as small as 4 mils; 2D as small as 6.6 mils. Refer to User’s Manual for depth-of-field performance. INTEGRATED CAMERA5-megapixel auto-focus color camera with LED flash KEYPAD OPTIONSAll keypad options feature backlit hard keycaps with laser-etched legends. HONEYWELL GLOBAL SERVICES SUPPORT Contact for Supportwww.hsmcontactsupport.com Public Knowledgebase Articleswww.hsmknowledgebase.com Telephone supportavailable in North America (800-782-4263). Outside of this area, contact your local representative ACCESSORIESFlexDock modular docking system vehicle dock vehicle holder snap-on adaptors removable scan handle magnetic stripe reader 6822 full-page printer and PW50 workboard printer REGULATORY APPROVALS AND COMPLIANCE CN75LAN, CN75WAN Safety:cULus Listed, BSMI EMC:Class B – FCC/ICES/EN, GOST-R Radio:FCC, Industry Canada, A-tick (AU), NCC, IDA, ICASA, POSTEL, NTC, ETA, SIRIM, ANATEL Environmental:EU Directives-WEEE; RoHS; Batteries and Accumulators; Packaging and Waste Packaging NON-INCENDIVE VERSION CN75 and CN75e with NI certification comply with the following:Suitable for use in Division 2 locations Safety:cULus Listing – ISA/ANSI 12.12.01 Gases:Class I – Groups A, B, C, D Dusts:Class II – Groups F, G Fibers and Flyings:Class III Max. Ambient:50°C (122°F) T6 Certifications: CN75 NRTL Certificate FCC Certificate – 1 FCC Certificate – 2 EU Declaration of Conformity CB Test Certificate Bluetooth SIG Certificate Wifi Alliance Certificate – CN75A Wifi Alliance Certificate – CN75E Resources: Data Sheet Quick Start Guide – Andriod 6 OS NI Models Quick Start Guide – Andriod 6 OS Quick Start Guide – Windows Embedded Handheld 6.5 OS NI Models Quick Start Guide – Windows Embedded Handheld 6.5 OS User Guide – Andriod 6 OS User Guide – Embedded Handheld 6.5 OS Andriod Network and Security User Guide Enterprise Provisioner and Staging Hub Server Network Security Guide DX2 Dual Dock Quick Start Guide DX4 Dual Dock Quick Start Guide DX1 Desktop Dock Quick Start Guide DX1 DX2 DX4 Computer and Battery Cup Installation Instructions Enterprises TE User Guide – Microsoft Windows OS Enterprises TE User Guide – Andriod 6.0 Launcher for Andriod User Guide Enterprises Browser for Andriod User Guide Accessory Catalog Direct Store Delivery Research Paper Regulatory Sheet – CN75 Regulatory Sheet – CN75NI Model 1000AB02 Battery Information Model 1001AB01 Battery Information
