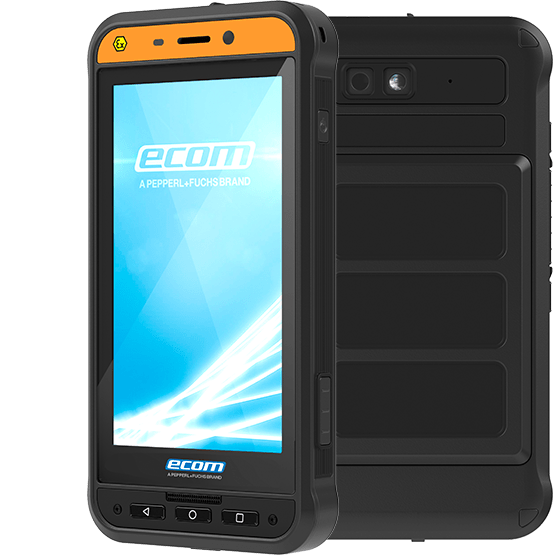

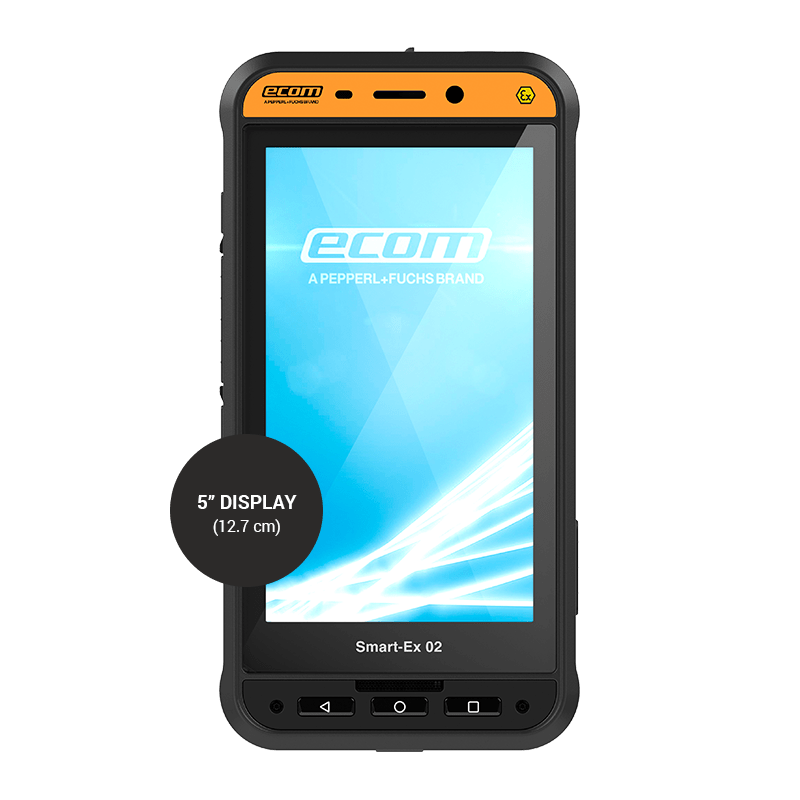

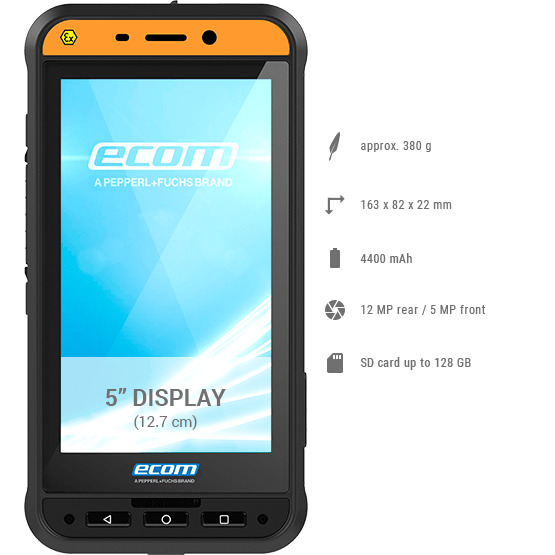

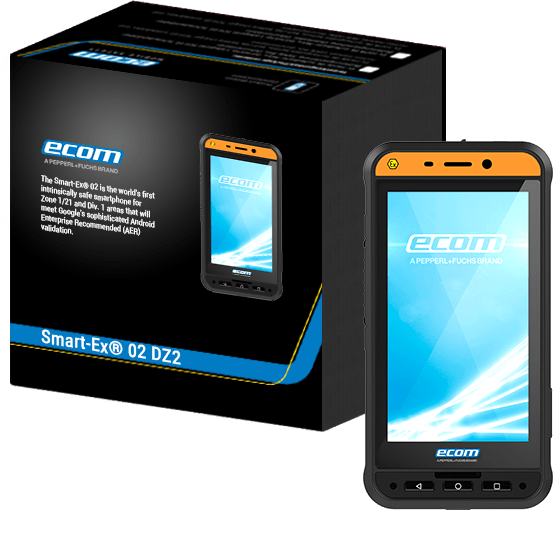

Description Intrinsically Safe Smartphone Ecom Smart-Ex 02 DZ2 ATEX Zone 2/22 Class I, II, III Division II IECEx Android 9 operating system 4G / LTE standard (SIM unlocked) Dual-SIM 21 LTE bands 12.7 cm (5.0 inch) Display with Gorilla Glass 3 GB RAM, 32 GB ROM Up to 128 GB additional memory with microSD WiFi Standard 802.11 a/b/g/n/ac/e/k/r/h WiFi 2.4 Ghz und 5 Ghz support Bluetooth 4.2 incl. BLE GPS / A-GPS / Glonass / Beidou / Galileo / NFC 2 cameras: 12 MP camera with autofocus and LED flash 5 MP camera Waterproof magnetic USB 2.0 connection Replaceable 4400 mAh battery LED flashlight function IP68 The newest Intrinsically Safe Smartphone Ecom Smart-Ex 02 DZ2 is certified ATEX Zone 2/22 and Class I, II, III Division II use in global hazardous areas. Backed up with IECEx approval. The Smart-Ex 02 DZ2 is the successor of the intrinsically safe smartphone Smart-Ex 201 for Zone 2/22 and DIV 2 areas. The Intrinsically Safe Smartphone Ecom Smart-Ex 02 DZ2 rugged smartphone has a large, high-resolution display, powerful features, and optimized accessories. Its extended temperature range makes it suitable for even the harshest environments. Among of the many features of this Intrinsically Safe Smartphone includes designed to support 21 LTE frequency bands, the Smart-Ex 02 has no SIM lock and can be connected to different networks worldwide. An Android 9 operating system enables the intrinsically safe device to work safely, quickly, and efficiently. Supported with the most powerful replaceable battery on market (4400 mAh), longer shifts and 24-hour work coverage are possible. The ergonomic design and intuitive user interface enhance the user experience. Ecom Smart-Ex® 02 Smartphone for DZ1 & DZ2 | ATEX IECEx CSA certified The Smart-Ex 02 also sets new standards when it comes to security. Regular security updates prevent unauthorized access to confidential personal and company data. To ensure unlimited, long-term use of the smartphone, ecom offers a three-year service level agreement. Pepperl Fuchs’ global sales and service network provides excellent customer service around the globe. Support from ecom’s system engineers and development teams is also available when software requirements change. Scope of Delivery Smart-Ex® 02 Li-Ion battery 4400 mAh Charger USB cable with magnetic connection Screwdriver Documentation Technical Specifications OPERATING SYSTEMAndroid™ 9.0 PROCESSORQualcomm Snapdragon 450 platform BANDCellular frequency bands: 4G LTE FDD: B1, B2, B3, B4, B5, B7, B8, B11, B12, B13, B20, B21, B25, B26, B28, B66, B71 4G LTE TDD: B38, B39, B40, B41 3G UMTS: 850 / 900 / 1700 / 1900 / 2100 MHz 2G GSM: 850 / 900 / 1800 / 1900 MHz MEMORY3 GB RAM, 32 GB ROM USER MEMORYSD card up to 128 GB DISPLAY12.7 cm (5.0 inch) extreme shock and scratch resistant Gorilla ® Glass with glove touch and wet mode PORTS3.5 mm jack connection with special ecom mounting solution 7-pins water-proof magnetic USB 2.0 connector DIMENSIONS163 x 82 x 22 mm WEIGHTapprox. 380 g CONNECTIVITY4G / LTE -standard (SIM unlocked); LTE Dual SIM; Nano SIM WiFi 2.4 Ghz and 5 Ghz support WiFi standards 802.11 a/b/g/n/ac/e/k/r/h Bluetooth ® 4.2 incl. BLE (Bluetooth Low Energy) GPS / A-GPS / Glonass / Beidou / Galileo NFC CAMERA12 MP rear with autofocus and LED flash with flashlight function / 5 MP front (optional) BATTERYReplaceable Li-Ion Battery pack with 3.7 V / 4400 mAh / 16.28 Wh PROTECTION CLASSIP68, MIL-STD-810G APPLICATIONSGoogle Play Store certified EMAIL CLIENTEAS, Gmail, POP3, IMAP AMBIENT TEMPERATURE-20 °C … 60 °C (certification pending) DEDICATED KEYSPTT / Alarm / Power / Multifunction / Volume / Control / Hardware buttons for Android features MICROPHONEDual mic solution with three selectable background noise suppression options SPEAKERLoud Speaker with Gore ® Protective Vents VIDEO STREAMINGSupport MP4, M4V, 3GP, 3G2, TS, WMV, ASF, AVI, FLV, MKV, WEBM Intrinsically Safe Smartphone Ecom Smart-Ex 02 DZ2 Certifications: Intrinsically Safe Smartphone Ecom Smart-Ex 02 DZ2 ATEX Certificate Intrinsically Safe Smartphone Ecom Smart-Ex 02 DZ2 IECEx Certificate Intrinsically Safe Smartphone Ecom Smart-Ex 02 DZ2 Other Resources: Intrinsically Safe Smartphone Ecom Smart-Ex 02 DZ2 Datasheet
