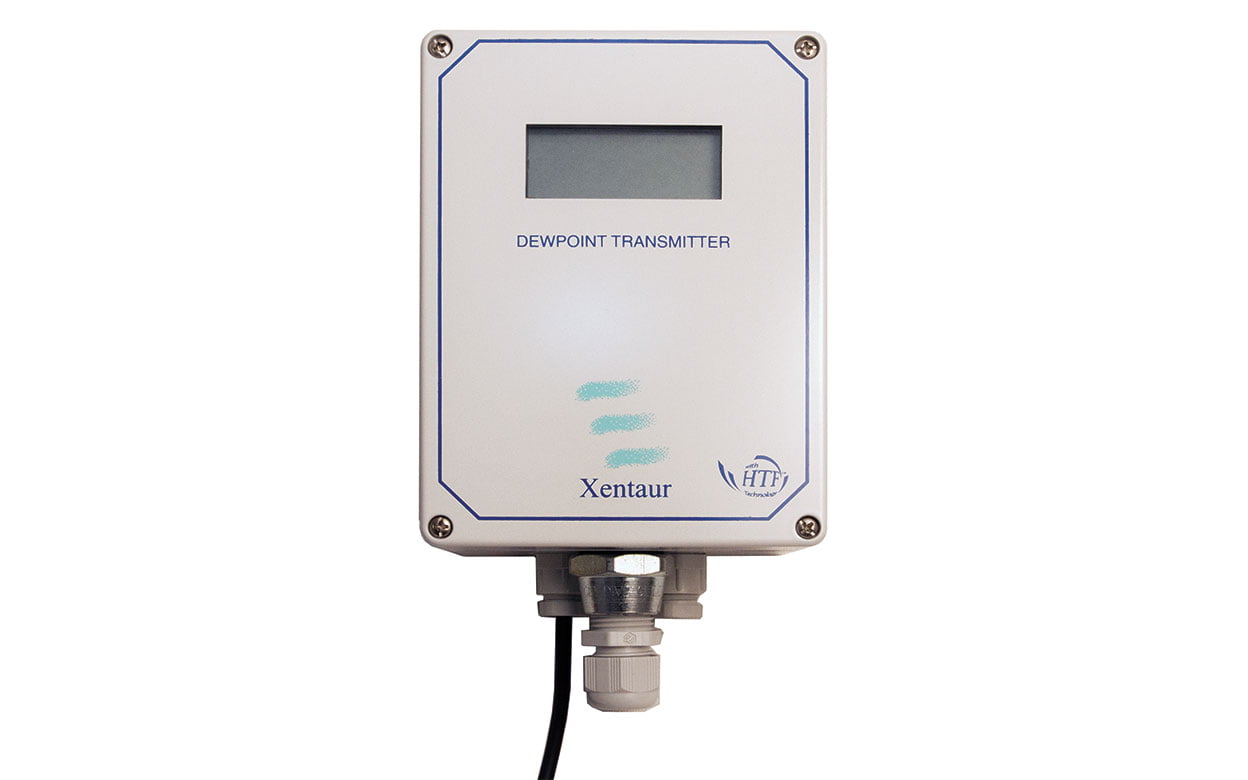

Description The Intrinsically Safe On-line Dew Point Analyzer COSA Xentaur XDT-NEMA is a compact, simple, and dependable instrument that is certified for usage in Class I Division II hazardous areas. The XDT-NEMA continuously monitors the operation of air dryers, compressed air quality, and dry gas moisture, from ambient dew points as low as -100oC (-148oF) to 20oC ( 68oF). Among those outstanding characteristics are hermetically sealed relays for use in hazardous areas Division II, an analog output, a 6-foot signal line, a power cable (specify connection), and a user’s manual. Additionally, it has analog and digital outputs for the RS 232 interfaces into the serial port of any PC or Mac, all of which are fully automated and prompt the user via a simple one-minute procedure and an error indicator. Features: Class I Division II HTF Sensor Technology Span Check in the Field Multiple Housing Configurations Very Low Drift Long Sensor Life LCD with backlight indicator IP65 Specifications: Transmitter: Sensor type:High capacitance Al2O3 Input Resolution:0.1°C dewpoint Indicators:LCD with backlight, 3.5 digits and custom legends for units and mode, audio alert Engineering units:Dewpoint in °F and °C, ppmv, g H2O/m3, lbs H2O/mm scf, Controls:4 push buttons, all settings stored in EEPROM Output options:4-20mA, 0-24mA or voltage outputs, linear to selected engineering units, programmable span and range, 0.1°C dewpoint resolution. RS-232 , baud rate 9600, resolution 0.1°C dewpoint Isolation:Sensor is isolated from the power supply, analog output and RS-232. Alarm relays option:Two programmable alarm relays with programmable variable hysteresis, rated at 10A @240V. Failure indication programmable to trigger alarm relays. Power requirements: 100 - 240 VAC, 50 or 60 Hz, autoranging or by order 12VDC or 15-30VDC 0.5A Connections:Pluggable screw terminal block Enclosure:Polycarbonate, Nema 4/4x Dimensions W-12cm x H-16cm x D-9cm (W-4.7” x H-6.3” x D-3.5”); DIN 43700 - 8cm (3”) deep. Temperature range of electronics:-10° to 50°C (14° to 122°F) Optional Features:a) Medical Breathing Air Monitoring and Alarm Option, complies with the recommendations of NFPA 99, 1996 edition b) On-board battery backed real-time clock option, facilitating Scheduled Timer Activated Single Point Self Calibration/Verification procedure for sample systems equipped with an electrically actuated switchover valve. Warranty:1 year for full workmanship and defective parts Resources: COSA Xentaur XDT-NEMA Brochure COSA Xentaur XDT-NEMA HTF Sensor Brochure
