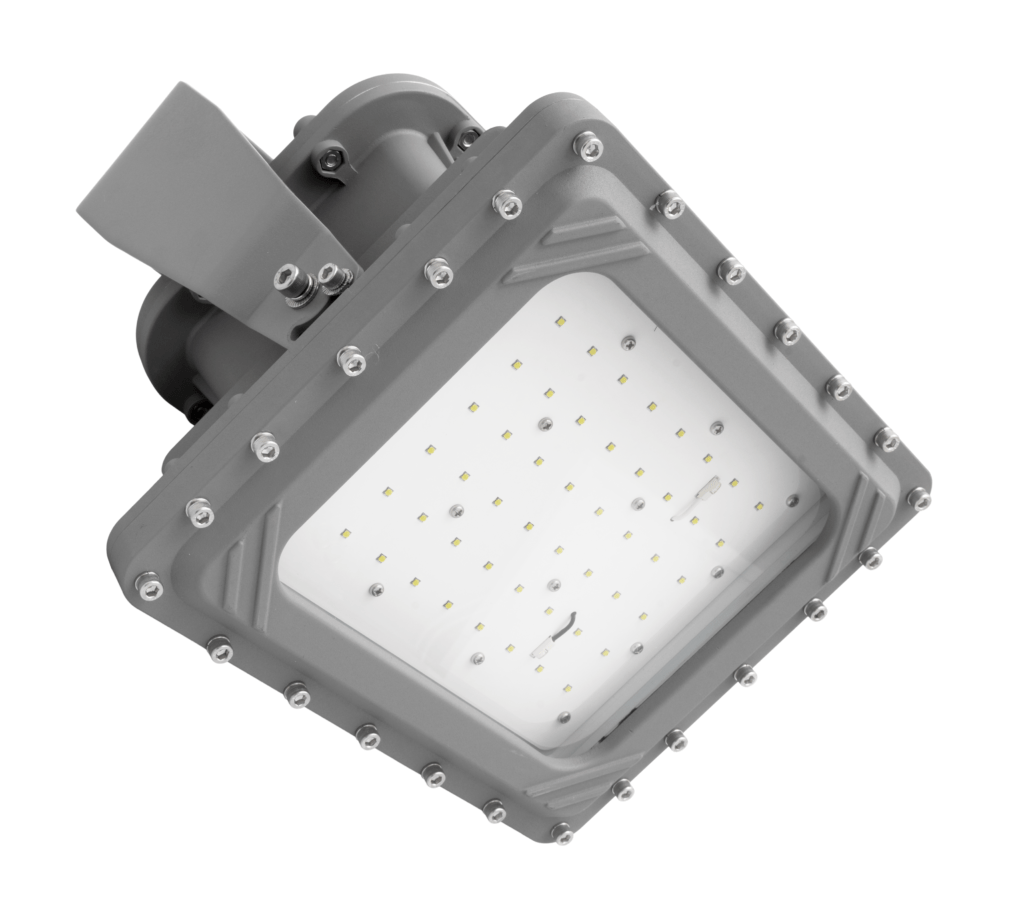

NICOR – XPQ1B100U50GRP Titan LED Flood Light 100 Watt LED

Description Titan’s hazardous location LED floodlight are intended for use in places subject to moisture, dust, corrosion, vibration, changes in temperature, and other environmental variables. 100 Watt LED FloodLight NICOR – XPQ1B100U50GRP Titan is fundamentally safe when used in situations designated by the NEC and IEC as prone to explosions and fires. As a component of FCC Part 15 Subpart B, Class B, it complies with conducted and radiated emission requirements, making it an extremely durable lighting system. Features DLC Premium UL Class I Division 2, Group A, B, C, D UL Class II Division 2, Group F, G UL844 Hazardous Location UL 1598 Wet Location UL1598A Marine UL 8750 LED Safety UL Listed CUL Listed IP66 Rated CSA 22.2 No. 137-M1981 IECEx Ex d IIB T6 Gb/ Ex tb IIIC T85°C Db RoHS Compliant Construction Die-cast, copper-free aluminum housing  Stainless steel hardware 3/4” NPT threaded conduit/wire access ports Weight – 80 & 100W: 33.1lbs (15kg); 150W: 36.4 lbs (16.5kg)  RoHS Compliant Optical System Tempered glass creates uniform light distribution and maximizes lumen output Diffused lens optional** Beam Angles: 25°, 60°, and 120° (NEMA Type 2, 4, and 6) CCT: 5000K, 3000K**, or 4000K** CRI: 70 Electrical Input voltage of 100-240/277VAC or 347-480VAC**  Input frequency of 50/60Hz Power Factor of ≥.90 THD <20% 10kA surge protector  Reported L70 hours >50,000 Environmental Ambient Operating Temperature -40°F (-40°C) ~ 122°F (50°C) C1D2 T4A at 122°F (50°C) C2D2 T4A at 122°F (50°C) Ambient Operating Humidity of 10%~90% RH Finish RAL 7037 (Dusty Gray) polyester powder coat Installation Prewired with 2’ flying leads Allows wiring without opening the power supply cover Adjustable trunnion bracket for ceiling, wall, etc. Integrated 3/4” NPT threaded hub for pendant mount. For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel Warranty 5-year limited system warranty standard The warranty does not cover product failure due to an overvoltage event (power surge) Specifications Primary Component MaterialDie-Cast Aluminum (Copper Free) Product ColorDusty Gray FinishPolyester Powder Coat Product Length (in)12.9 Voltage100-240/277VAC Wattage97.6 Lumen Output12170 Lumens Per Watt124.7 Color Temperature (CCT)5000K CRI70 Beam Angle120° ( /- 10%) Spacing Criteria1.31 120V Current (A)0.813 277V Current (A)0.352 Power Factor?.90 Total Harmonic Distortion (%)<20% Operating Temperature-40°F to 122°F (-40°C to 50°C) Product Lifespan (Hours)>50,000 Warranty (Years)1. 5 Certifications: Titan Equipment Certification Requirements Resources: Titan Specification Sheet Installation Instruction Brochure   More Options For you: Tomar 3024XLW – Wall Mount, 12-36 VDC Explosion Proof Lighting NICOR – XPR1B065U50GRM Eres Multi Mount LED Area Light 65 Watt
