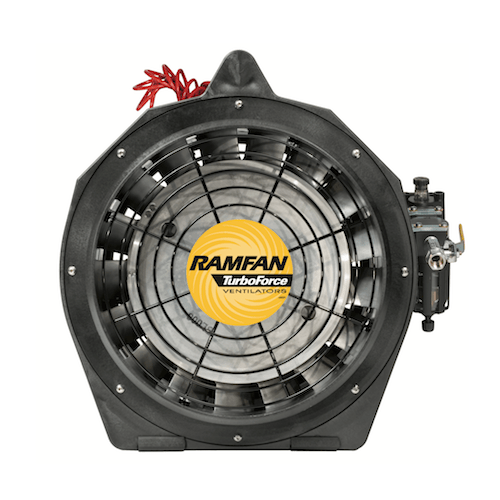

Description For use in potentially hazardous environments, the 12″ Explosion Proof Fan RamFan AFi75xx has been tested and approved to meet the requirements of EN 61508-2. Exhaust from a small, air-powered ventilator. Filter oil is used to power a pneumatic air motor. Air filters, air control valves, grounding clamps, and automatic motor lubricators are included in the air units. To function properly, a motor must be oiled. The airline before the motor has to have a moisture trap and filter installed. Features: ATEX Zone 1 Made in California, USA Pneumatic air motor is driven with filter oil Static grounding cord Durable, PC/ABS Anti-static casing is weatherproof, flame retardant, and chemical resistant 2 Integrated duct adapters Air exhausts outside of the duct, not in the air stream Complete with filter, motor lubricant, and air control valve Specifications: Model AFi75xx Part # AB7000 IMPA Code 591511, 591425 Motor GAST 4AM-NRV-50C Motor Type Totally Encapsulated Air Flame Proof Operating Temperature -22°F to 104°F / -30°C, to 40°C Noise 89 dB @ 3' (1 m) Run Time Continuous Weight 38 lbs /17 kg Dimensions (h/w/d) 16 x 17 x 16 in / 41 x 43 x 41 cm Duct Adapters2 AIR CONSUMPTION AND HORSEPOWER REQUIREMENTS FOR AIR COMPRESSOR Air Pressure (PSIG) Inlet Air 80 Air Consumption 40 scfm / 68 m³/hr Compressor Hp 6.4 Hp Induction Ratio 51:1 Air Flow Air Flow ( 80 psi ) 2,042 cfm (3,471 m³/hr) Compressor 6.4 Hp (4.77 kW) Dimensions WEIGHT37.48lb HEIGHT16.14in WIDTH16.93in DEPTH16.14in Certifications: AMCA Certificate ATEX Certificate IECEx Certificate INMETRO Certificate Product Quality Assurance Certificate Resources: Glossary of Terms User Manual Product Sheet
