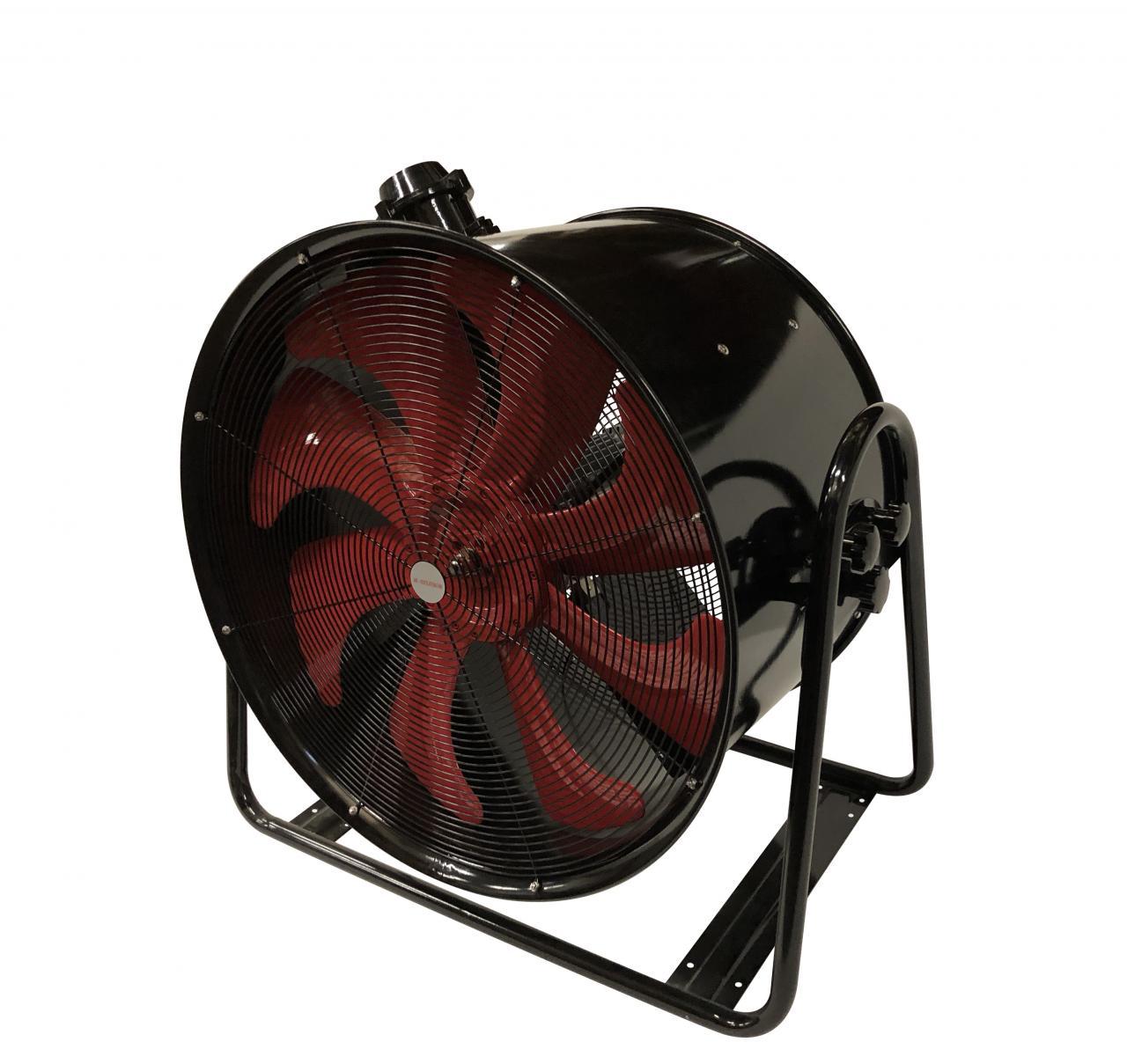

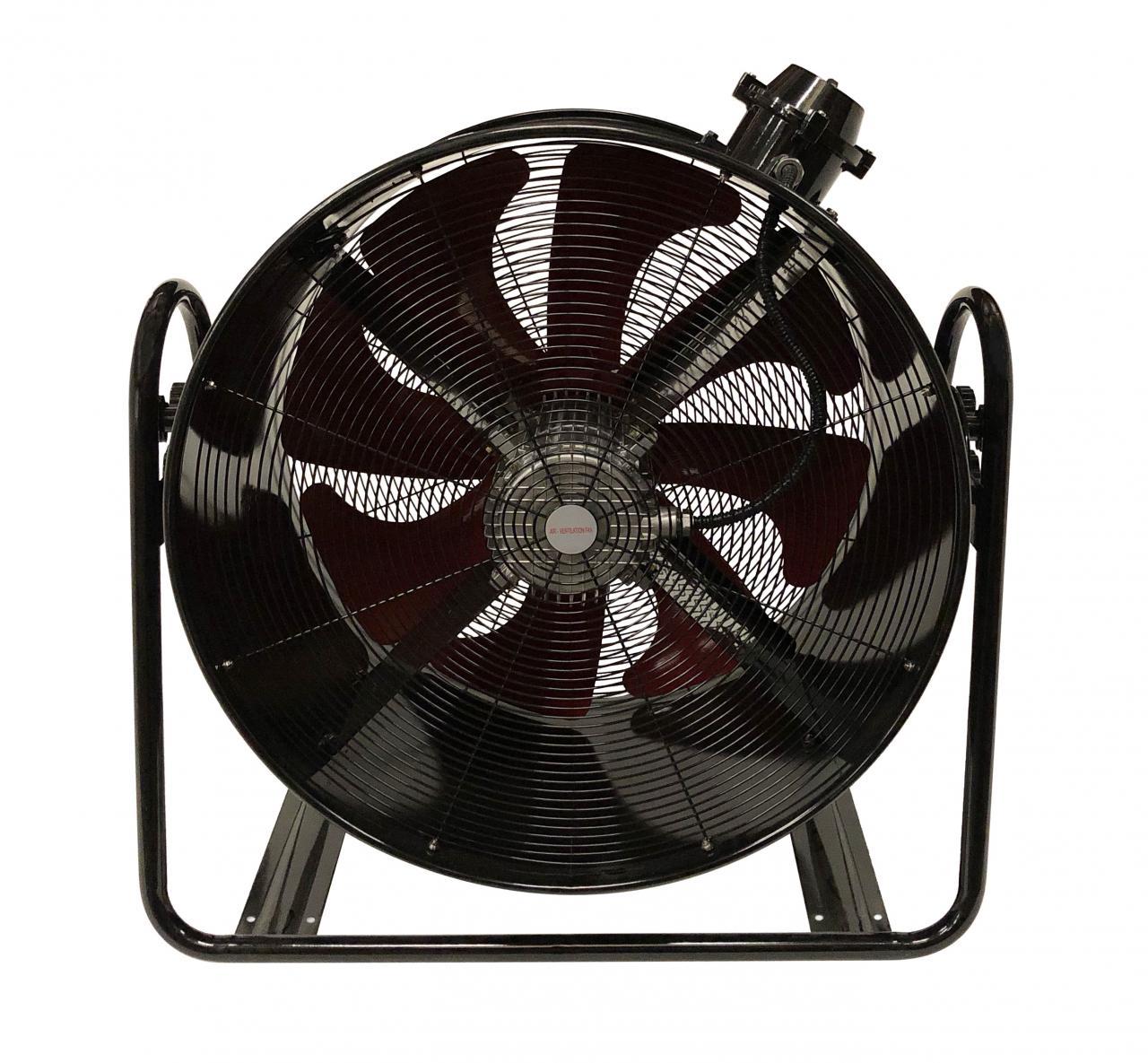

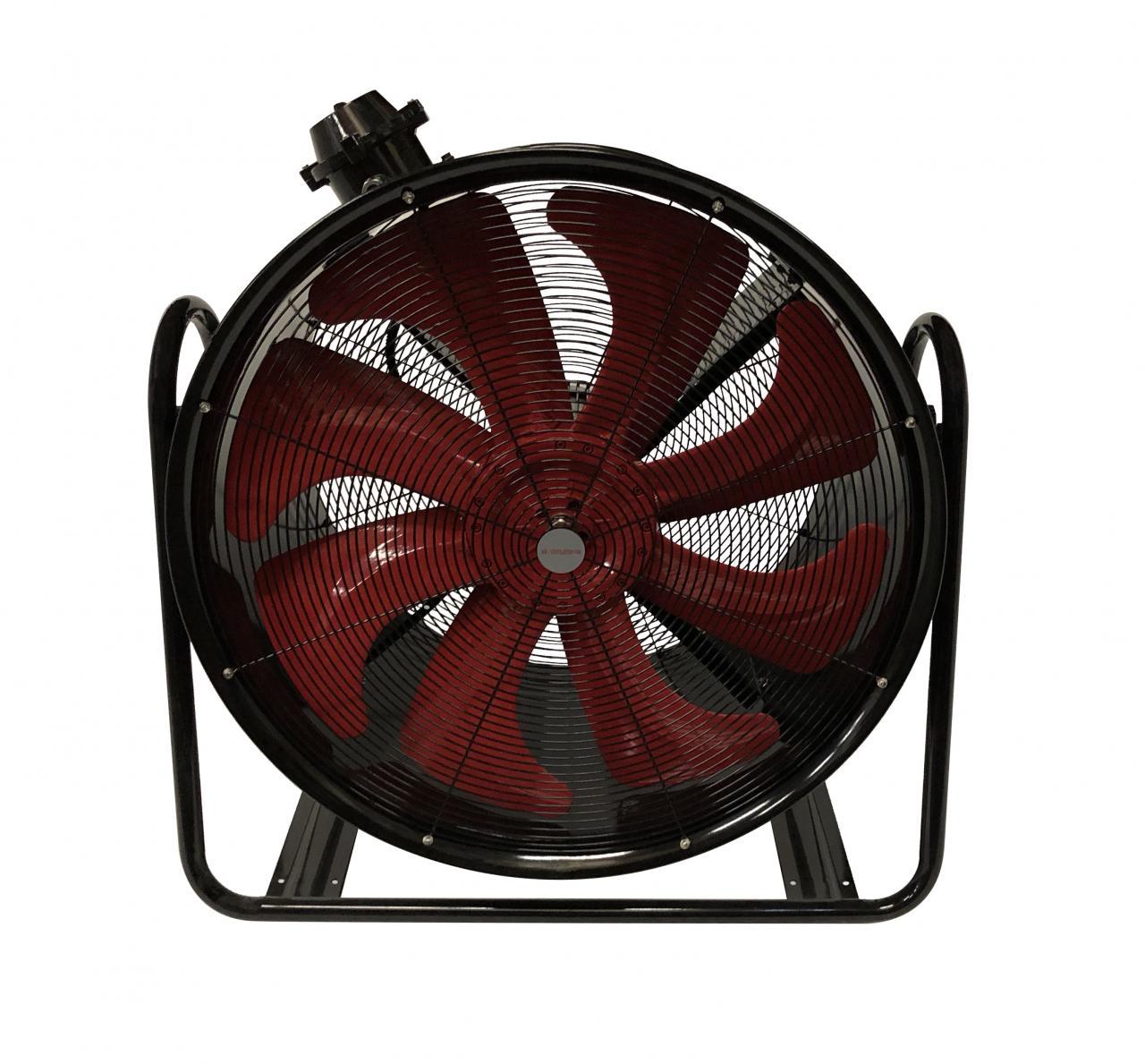

Description Explosion Proof Fan Atlantic Blowers ABAF-32-220E Features: Class 2 Division 1 Horsepower: .75 Diameter 16 inches Decibels: 68 Max. Flow (CFM): 3355 Voltage/Phase: 110-120/220-240 Single Phase Energy Efficient Convenient to move with handle or wheels Low noise Lightweight Diecast Aluminum Alloy Sturdy and powerful with Direct Drive motors Lobed Axial Blade Shape Adjustable blade pitch Introducing the Explosion Proof Fan Atlantic Blowers ABAF-32-220E is certified Class 2 Division 1 Single Phase Axial Fan. It can be used for various low-pressure and high airflow applications. This Tube Axial Fan produces a maximum flow of 3355 CFM. The maximum pressure is 1.4 inH2O. It has a power output of 0.75 HP (0.55 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is between 110V-120V. The fan will produce a noise level of 68 decibels measuring at a distance of 3 ft. The impeller diameter is 16″. Axial Fans require almost zero maintenance if installed within the defined parameters. A well-ventilated area below 104*F, will ensure the maximum longevity of your Tube Axial Fan. The motors are 2 Pole TEFC making them efficient and highly resistant to dust and other potential contaminants. Shop Now! Specifications: Model:ABAF-32-220S Max. Flow (CFM):14126 Max. Pressure (inches H2O):2.2 Max. Vacuum (inches H2O):2.2 Voltage/Phase:220V Single Phase Horsepower:3.2 Decibels:74 More Options For You: Explosion Proof Fan Atlantic Blowers ABAF-32-110E Explosion Proof Fan Atlantic Blowers ABAF-32-460E
