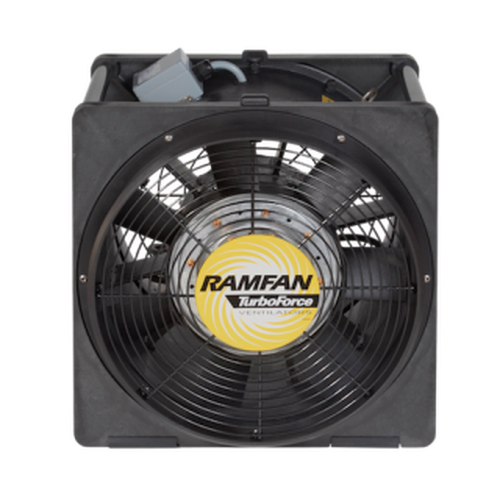

Description The most powerful explosion proof fan and blowers for hazardous site applications. High volume, low velocity, slightly smoother flow can be achieved by using the EFi50xx (0.5 Hp). Integrated duct adapters of 16′′ (40 cm) in diameter. Stackable for both storage and operation. Features: ATEX Zone 1 IECEx Made in California, USA High-pressure axial blower Durable, PC/ABS Anti-static casing is weatherproof, flame retardant, and chemical resistant 2 Integrated duct adapters Motor part number: 1131007404 21 Blades IP55 rain switch enclosure Specifications ModelEFi50xx (115V)EFi50xx (230V) Part #EA8000XX Ships as 115VEA8000XX-230 Ships as 230V Motor0.5 Hp / 0.37 kW Motor TypeTotally Encapsulated Air Flame Proof Electric115/230V, 1ø, 50/60Hz Amps (Start/Run)25A / 6A13A / 3A Cable Lengths30'/9m, 14AWG/2.5mm2 Plug TypesNot Included Operating Temperature-22°F to 104°F / -30°C, to 40°C Noise90.2 dB @ 3' (1 m) Weight49 lbs / 22 kg Dimensions (h/w/d)19 x 18 x16 in / 48 x 46 x 41 cm Impeller21-Blade Air Flow Free Air3,200 cfm (5,440 m³/hr) 15 ft/4.6 m 1-90° turn1,935 cfm (3,289 m³/hr) Dimensions WEIGHT48.5lb HEIGHT18.9in WIDTH18.11in DEPTH16.14in Certifications: AMCA Certificate ATEX Certificate IECEx Certificate INMETRO Certificate Product Quality Assurance Certificate Resources: Glossary of Terms Product Sheet User Manual
