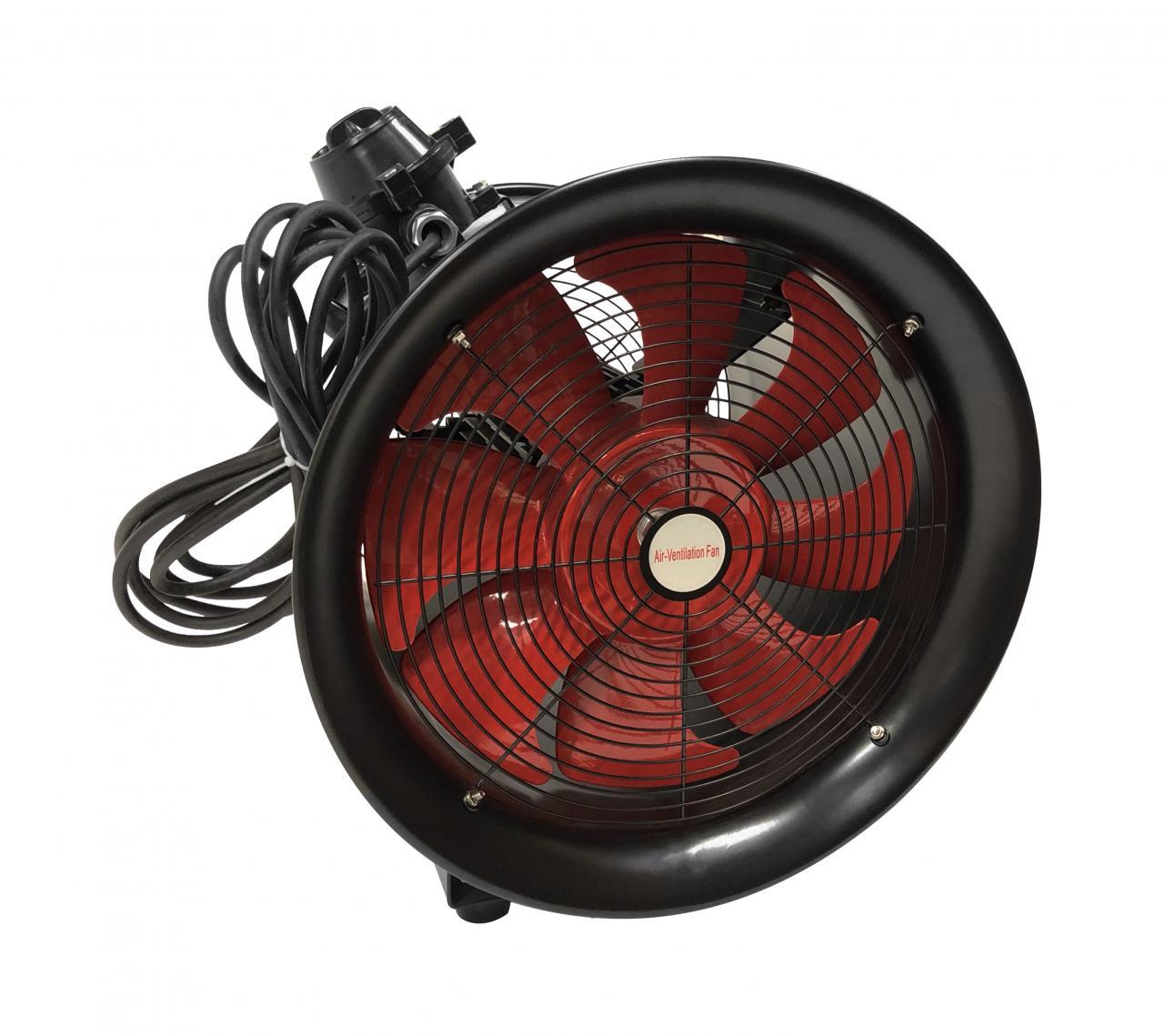

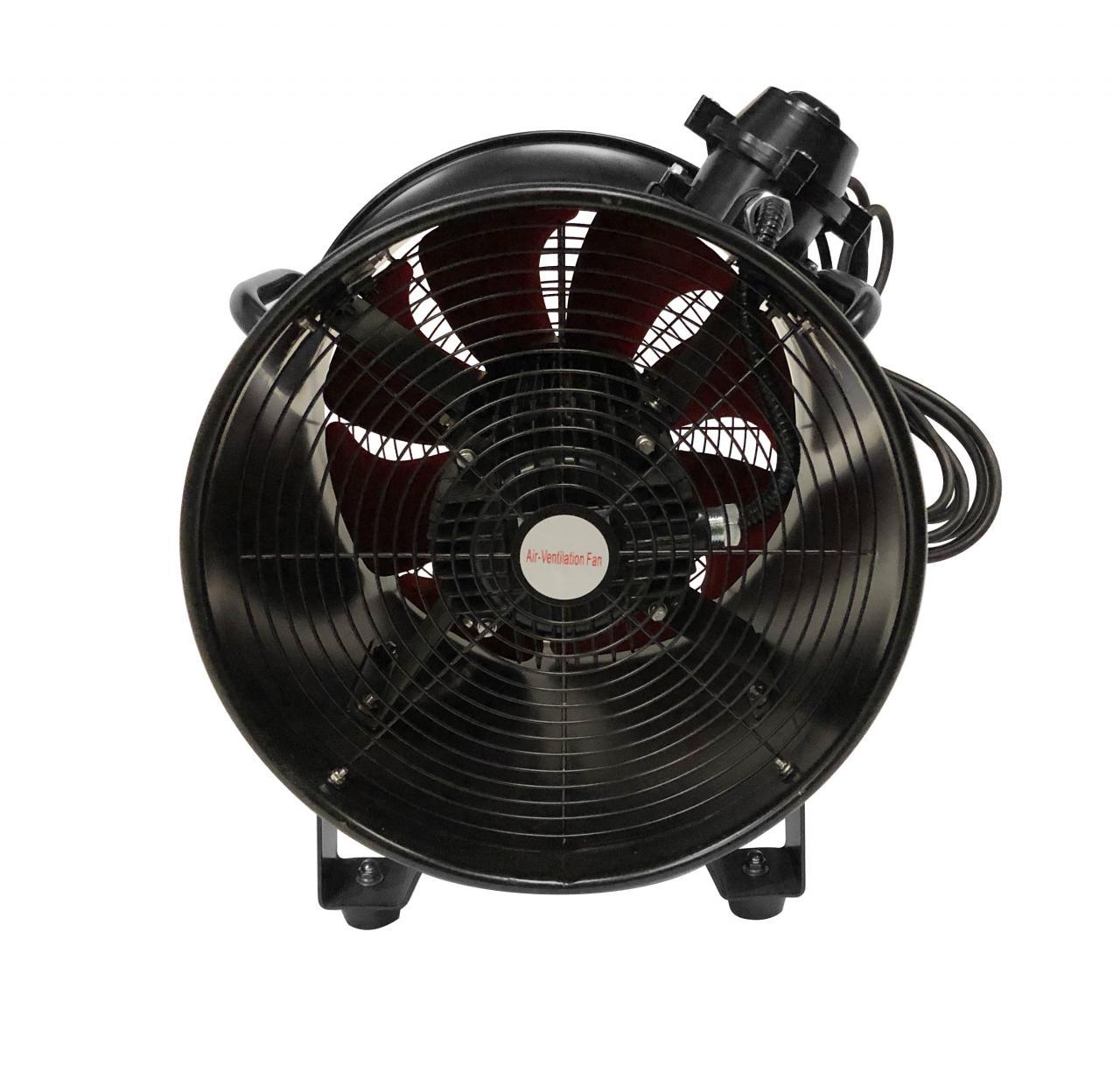

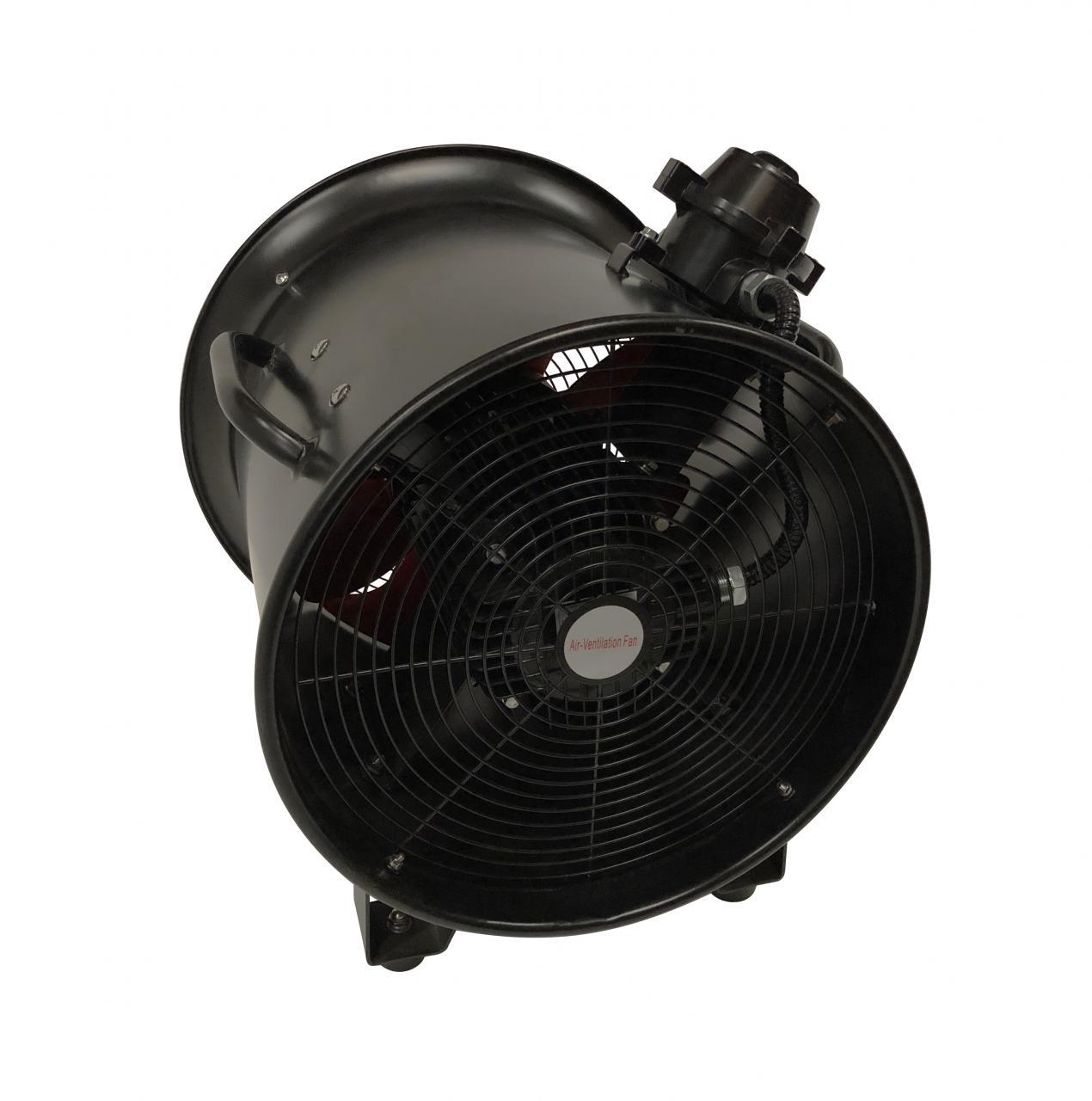

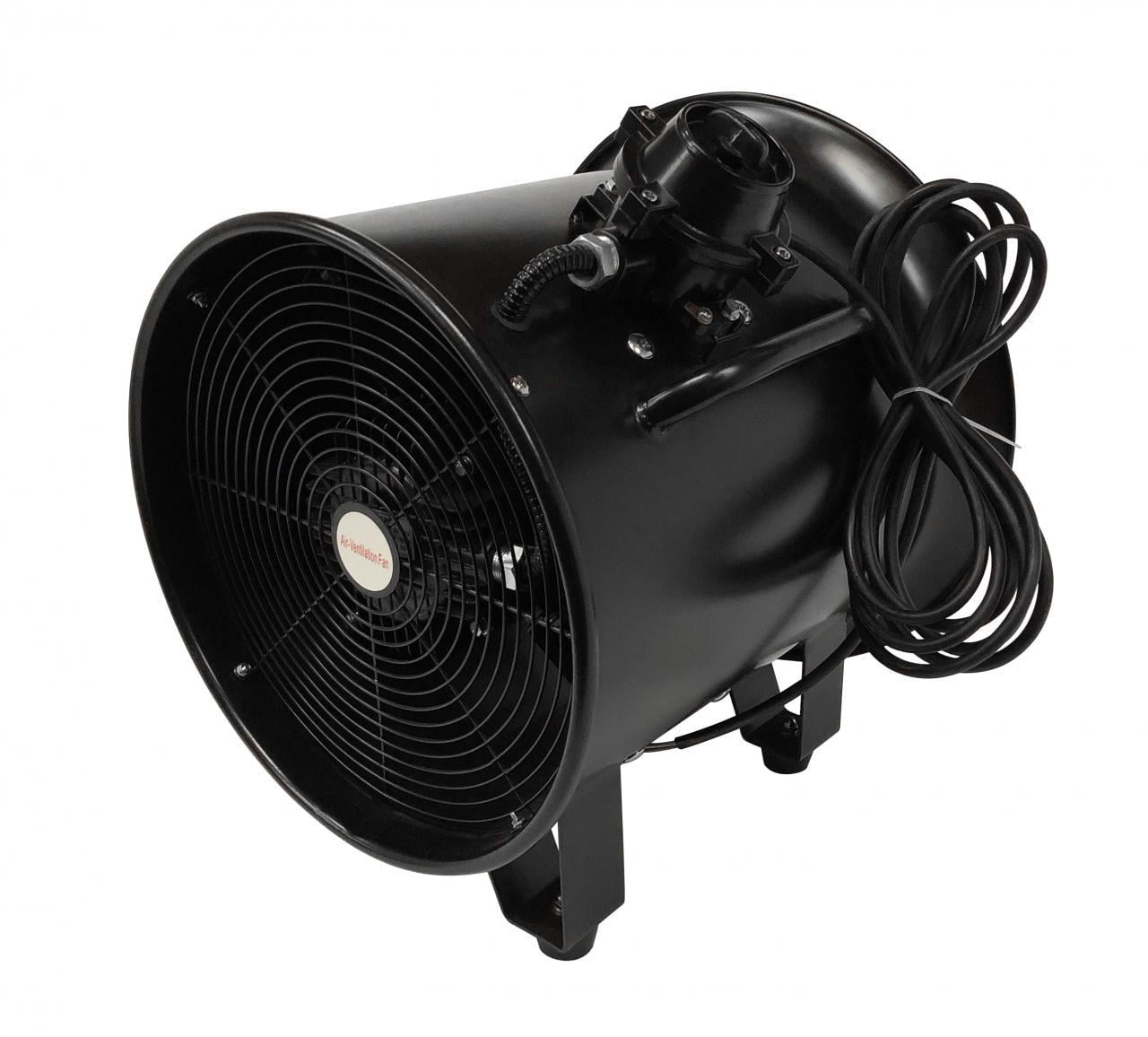

Description Explosion Proof Fan Atlantic Blowers ABAF-16-220E The Explosion Proof Fan Atlantic Blowers ABAF-16-220E is engineered for use in Class I Division 1 hazardous environments, delivering powerful ventilation performance for confined industrial spaces. Built with a durable 16″ diecast aluminum frame and TEFC motor, it ensures safety and continuous operation in explosive atmospheres like oil rigs, chemical plants, and refineries. Running on 220V single-phase power, this tube axial fan generates up to 3355 CFM of airflow with minimal noise — only 68 dB at 3 feet. Its 0.75 HP motor supports dual-frequency operation (50/60 Hz), and the lobed axial blade design allows for adjustable pitch, maximizing efficiency across varying field conditions. Lightweight, portable, and built to last, it’s the ideal solution for hazardous area ventilation. Key Features: ✅ Class I Division 1 Certified ✅ 220V Single Phase, 50/60 Hz Dual Frequency ✅ TEFC Motor, Lightweight Diecast Aluminum Alloy ✅ 3355 CFM Max Flow, 68 dB at 3 ft ✅ Portable with integrated handle and optional wheels ✅ Energy-efficient, low-noise operation ✅ Direct Drive with Lobed Axial Blade Shape ✅ Adjustable Blade Pitch for optimized airflow ✅ Minimal maintenance in well-ventilated settings �� Package Options: �� ABAF-16-110E (110V/120V Single Phase): [View Product] �� ABAF-16-220E (220V Single Phase): Current Model Explosion Proof Fan Atlantic Blowers ABAF-16-220E Technical Specifications: Model:ABAF-16-220 Max. Flow (CFM):4238 Max. Pressure (inches H2O):3.1 Max. Vacuum (inches H2O):3.1 Voltage/Phase:220V Three Phase Horsepower:1.5 Decibels:79 Certifications & Compliance: �� Class I Division 1 – For use in explosive gas atmospheres (Groups C & D) �� Class II Division 1 – Approved for dust environments (Groups E, F, G) �� TEFC Motor – Totally Enclosed Fan Cooled for contamination protection �� IP Rated Housing – For protection against dust and moisture ingress Applications of Explosion Proof Fan Atlantic Blowers ABAF-16-220E: �� Oil & Gas �� Chemical Plants �� Mining �� Labs �� Manufacturing What’s in the Box? �� 1x ABAF-16-220E Explosion Proof Fan �� 1x Integrated Carry Handle �� 1x User Manual Ordering & Shipping Details �� Lead Time: 1-2 weeks �� Shipping Terms: Worldwide / Expedited Options �� Payment Options: Credit Card, PayPal, Net 30 Terms FAQs: Is this fan certified for use in Class I Division 1 areas? Yes, the ABAF-16-220E is certified for use in Class I Division 1 and Class II Division 1 hazardous locations. Can this fan run continuously in a high-heat area? Yes, but ensure the ambient temperature stays below 104°F for maximum longevity and performance. Does this model come with ducting? No, ducting is sold separately. We recommend using 16″ anti-static explosion-proof ducting for optimal performance. What voltage is required for this model? The ABAF-16-220E requires 220V single-phase power supply.
