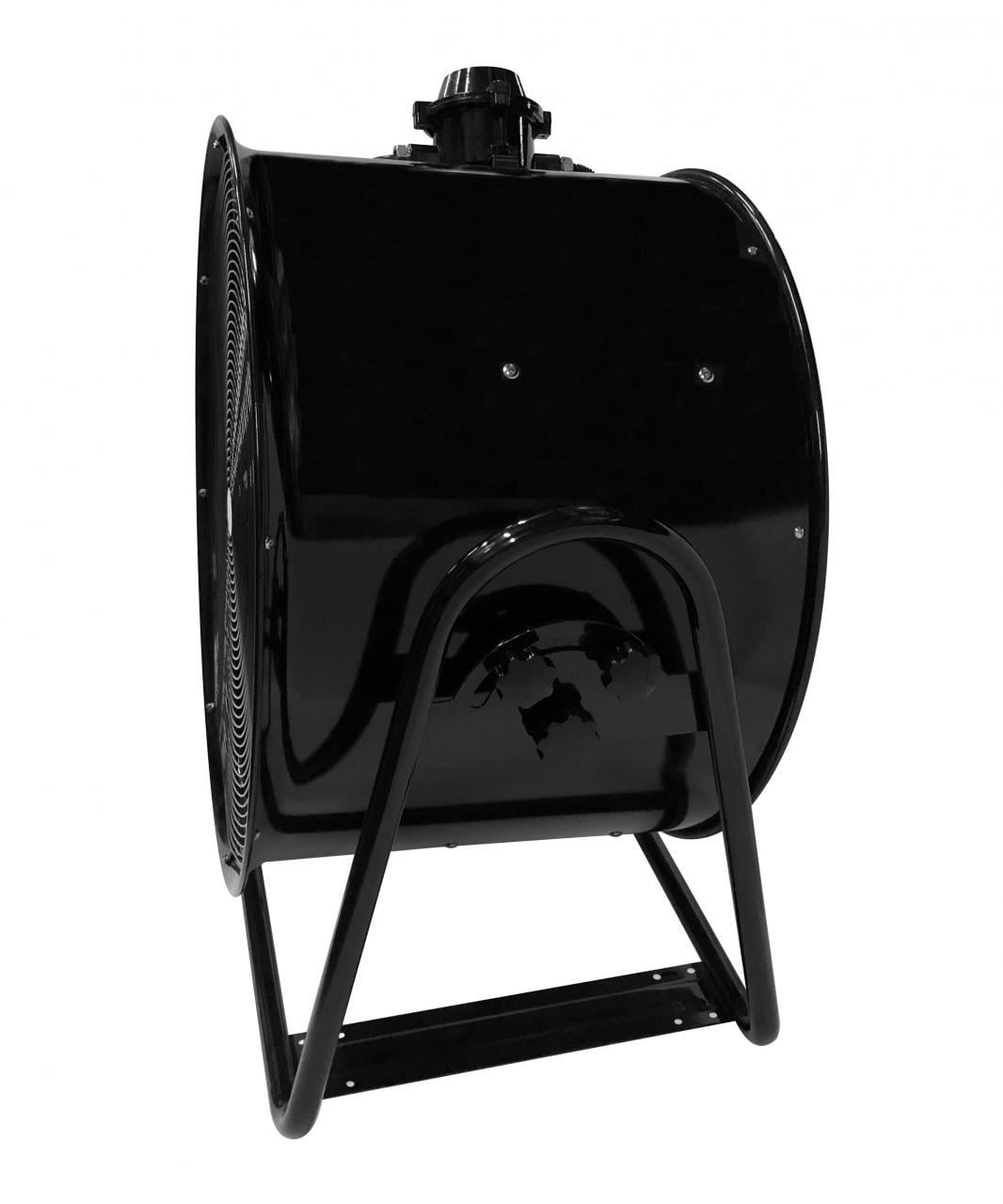

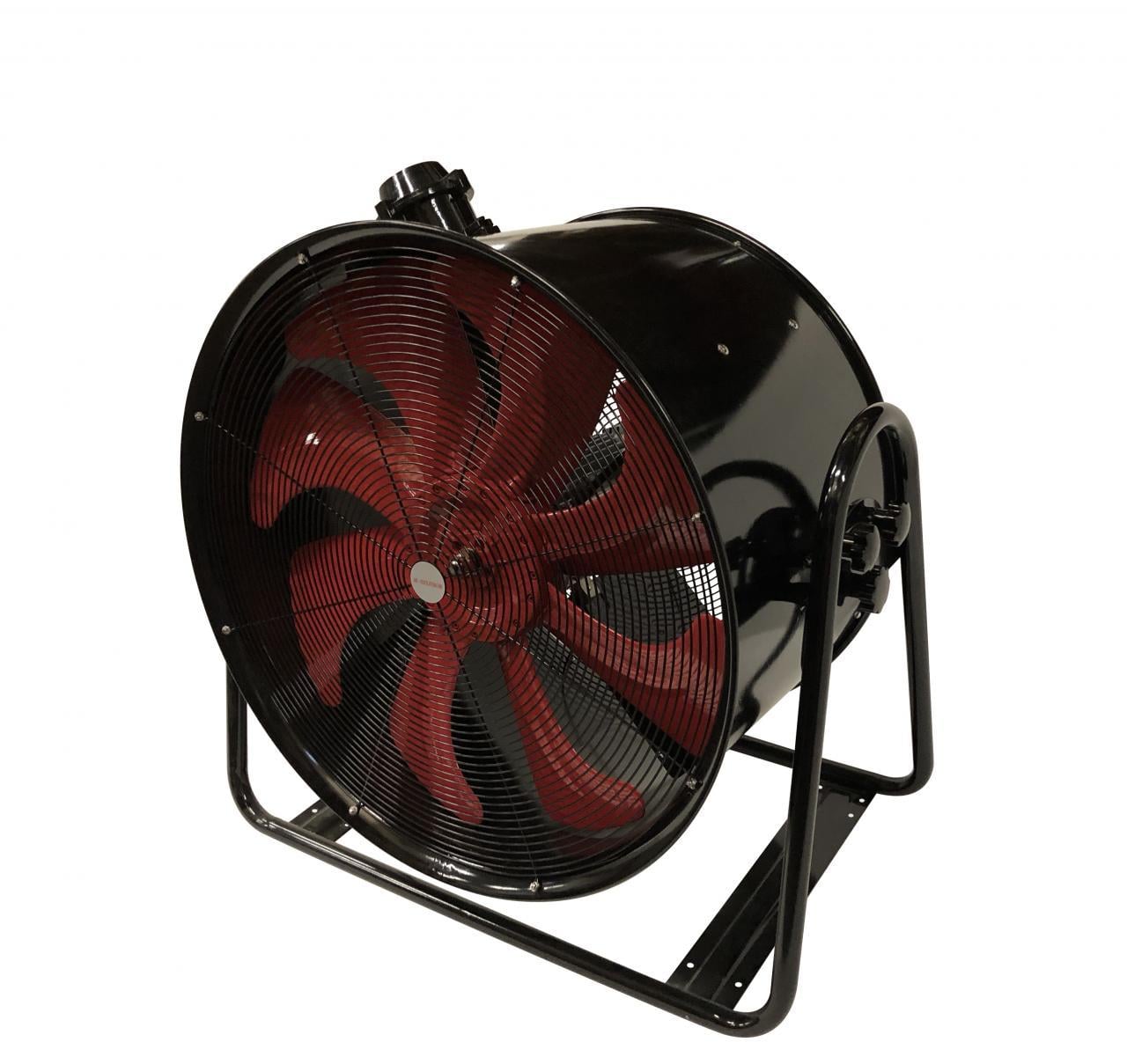

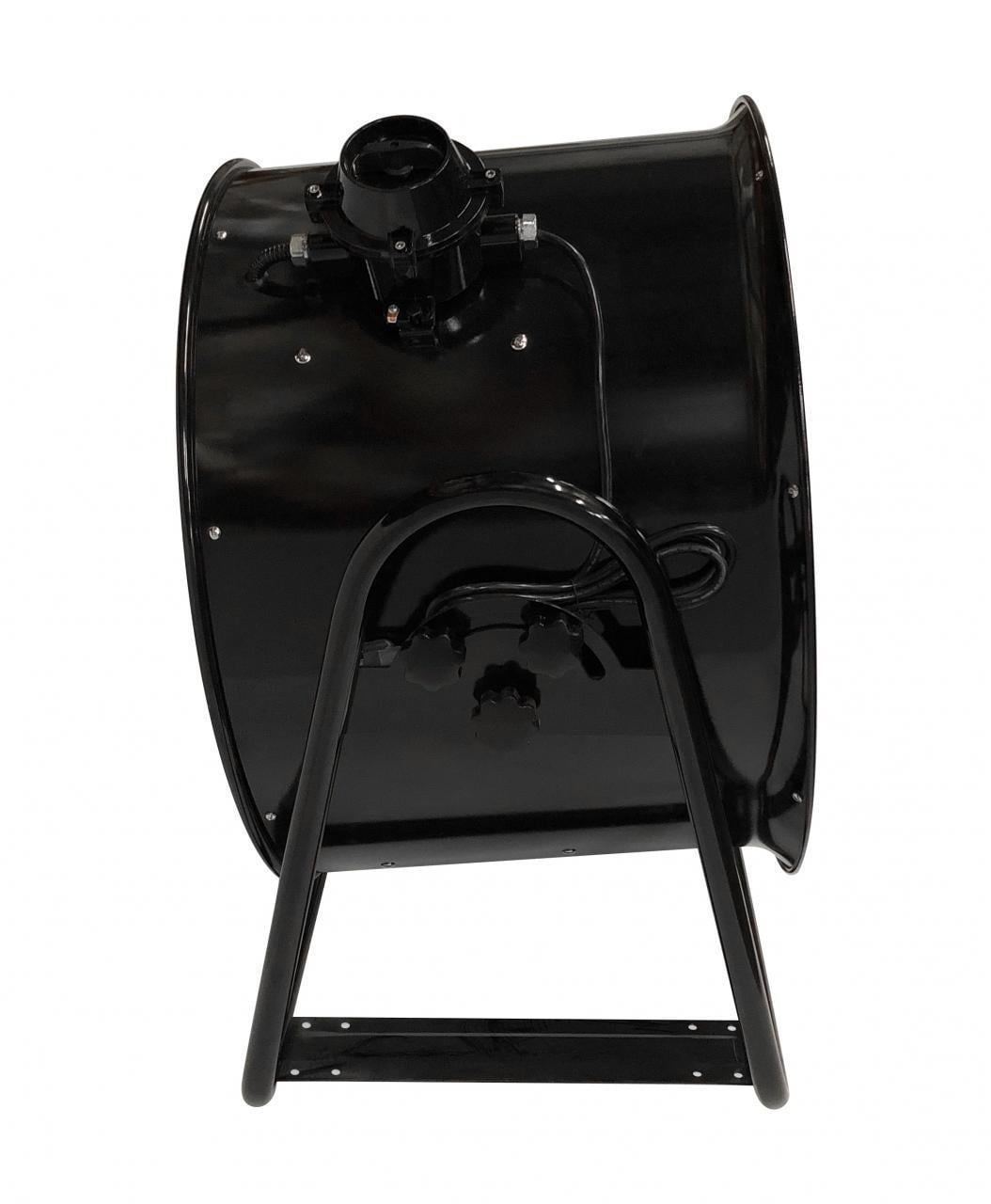

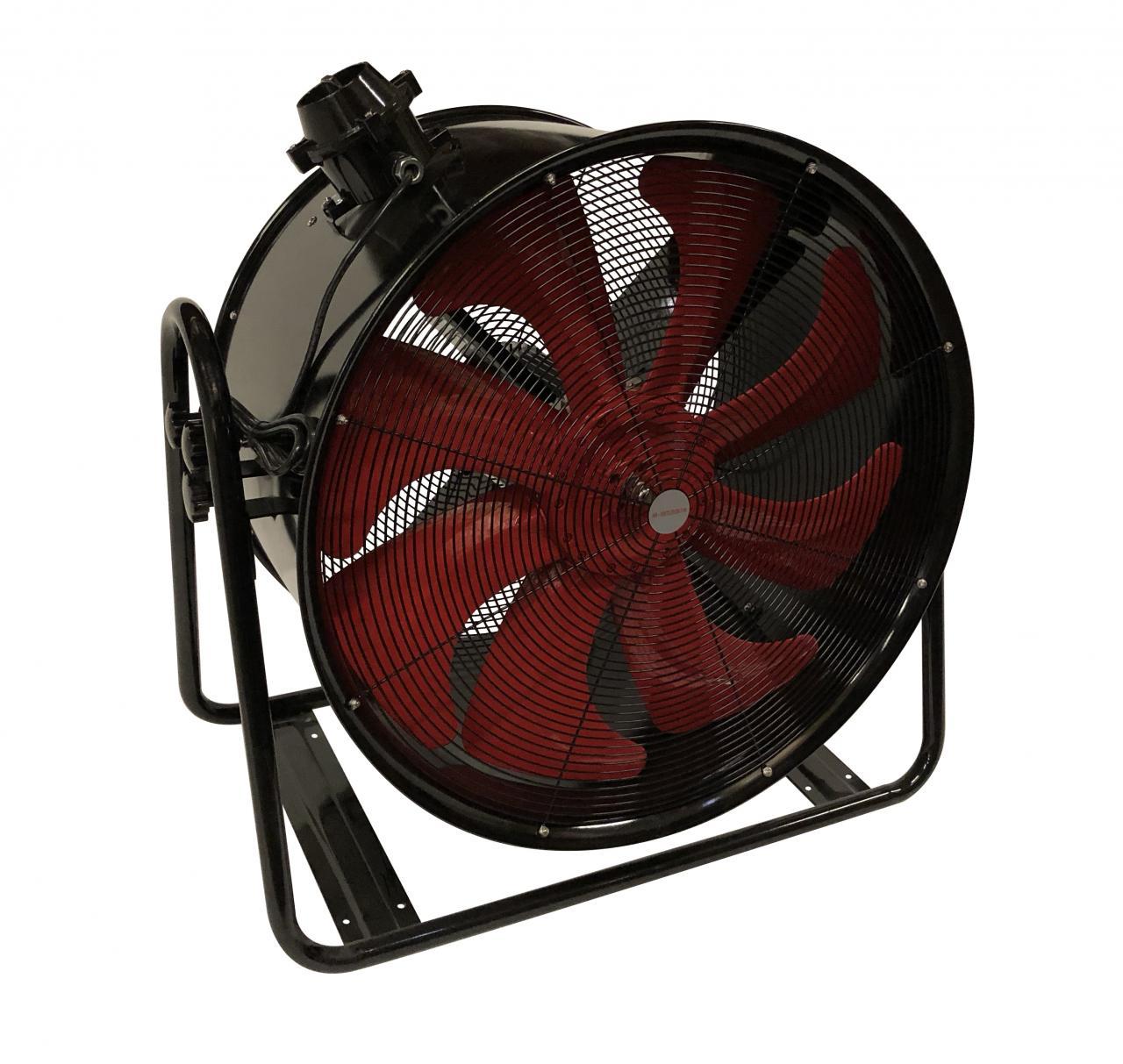

Description Explosion Proof Fan Atlantic Blowers ABAF-24-110E Features: Class 1 Division 2 Horsepower: 2.7 Diameter 24 inches Decibels: 79 Max. Flow (CFM): 9182 Voltage/Phase: 110-120/220-240 Single Phase Energy Efficient Convenient to move with handle or wheels Low noise Lightweight Diecast Aluminum Alloy Sturdy and powerful with Direct Drive motors Lobed Axial Blade Shape Adjustable blade pitch Introducing Explosion Proof Fan Atlantic Blowers ABAF-24-110E Presenting the Explosion Proof Fan Atlantic Blowers ABAF-24-110SE is certified Class 1 Division 2 Single Phase Axial Fan. It can be used for various low pressure and high airflow applications. This Tube Axial Fan produces a maximum flow of 9182 CFM. The maximum pressure is 2.2 inH2O. It has a power output of 3 HP (2.2 kW) with speeds of either 3000 or 3600 RPM (50/60 Hz dual frequency). The voltage is between 110V-120V. The fan will produce a noise level of 79 decibels measuring at a distance of 3 ft. The impeller diameter is 24″. Axials Fans require almost zero maintenance if installed within the defined parameters. A well-ventilated area below 104*F will ensure the maximum longevity of your Tube Axial Fan. The motors are 2 Pole TEFC making them efficient and highly resistant to dust and other potential contaminants. Shop Now! Specifications: Model NumberABAF-24-110SE Voltage110-120 KW2.2 HP3 Speed (RPM)1720 Weight (lbs)148 Max Flow (CFM)9182 Max Pressure ("H2O)2.2 Sound Level (db)79 Impeller Diameter24" Explosion Proof Fan Atlantic Blowers ABAF-24-110E Other Resources: Explosion Proof Fan Atlantic Blowers ABAF-24-110E Catalog Explosion Proof Fan Atlantic Blowers ABAF-24-110E Video More Options For You: Explosion Proof Fan Atlantic Blowers ABAF-24-220E
