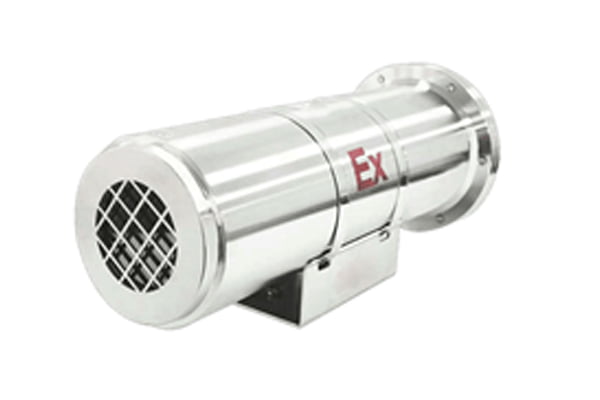

Kaixuan KX-EX600PW-R Explosion Proof CCTV Camera Enclosure

Description Suitable for usage in harsh environments Petroleum, chemical industry, mining, military industry, medicine, oil depots, ships, drilling platforms, gas stations, pyrotechnics manufacture, food processing and storage, and offshore projects are just a few examples. The Kaixuan KX-EX600PW-R Explosion-Proof CCTV Camera Enclosure is authorized for use in ATEX Zone 1/21 hazardous areas. The KX-EX600PW-R is powered by 220V AC and fitted with GE glass designed for thermal cameras. The IP66-rated, explosion-proof, anti-corrosion, and waterproof design are ideal for use in harsh environments. This Explosion-Proof CCTV Camera is made of very robust 304 stainless steel (316L for optional). Features: ATEX Zone 1/21 Can assemble the thermal camera Ex – Housing Thermal Explosion-proof Enclosure KX-EX600PW-R is certified to be used in hazardous locations. GE glass which is specially designed for the thermal camera inside size:Φ108*300mm window size:Ф65mm can assemble box camera, all-in-one camera apply to a strong corrosive environment, Explosion-proof,anti-corrosion, waterproof Windows glass surface process by nanotechnology. non-stick oil/dusty /water Fixed focus or zoom camera can be loaded. Low power consumption, the fuselage internal air convection heat dissipation design, can work continuously for a long time The standard power supply is AC220V/DC12V; however, different power supply mode may be configured. Made of 304 stainless steel material. apply to a strong corrosive environment Well design for Explosion-proof,anti-corrosion, waterproof, suitable for indoor and outdoor environment IP66 NOTE: housing only without a camera inside Specifications: Ex-LevelATEX II 2G Ex d IIC T6 Gb II 2D Ex tb IIIC IP66 T80℃ Db Ingress Protection  levelIP66 Temperature  range-40℃～60℃ Relative  humidity≤95%（ 25°C） Atmospheric  pressure80kpa～106 kpa Thermostat SystemOptional External  dimensions380mm*143mm*151mm Window materialGermanium glass(Ge) Window areaΦ65mm Internal  dimensionsΦ100×300mm(length Supply voltageDC12V/AC220V  optional Applicable  environmentApply to  explosive gas and combustible dust environment Material304 stainless steel(316, 316L for optional) Inlet  interface specificationsG3/4″x 2 Installation  MethodWall Hanging dyadic , fixed bracket ,  Pillar base Certifications: ATEX Certificate Declaration of Conformity Resources: Catalog More Options For You: Kaixuan KX-EX600PW8-R Exploxion Proof Camera
