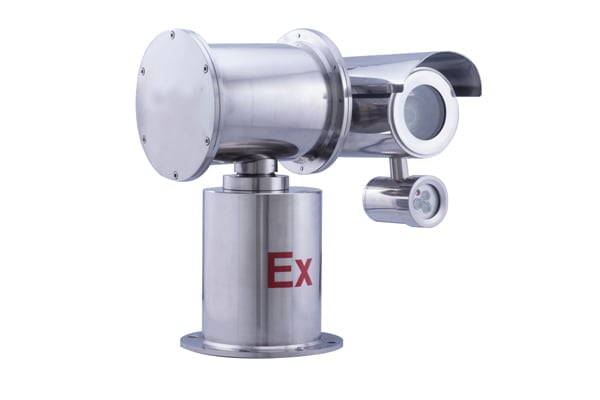

Explosion Proof PTZ Camera Kaixuan KX-EX1000ZPPY230

Description Explosion Proof PTZ Camera Kaixuan KX-EX1000ZPPY230 Explosion proof PTZ Camera KX-EX1000ZPPY230 is certified to be used in hazardous locations. Imaging sensor is 1/2.8″ Progressive Scan CMOS Color: 0.05Lux (F1.6, AGC ON) | BW: 0.01Lux (F1.6, AGC ON) Windows glass surface process by Nano Technology. Well light transmittance. No halation effect and non-stick oil/dusty. Made of 304 stainless steel material. Apply to strong corrosive environment. External dimensions: 353mm*290mm*368mm Explosion Proof PTZ Camera Kaixuan KX-EX1000ZPPY230 Certificates: Explosion Proof PTZ Camera Kaixuan KX-EX1000ZPPY230 ATEX II 2G Ex d IIC T6 Gb II 2D Ex tb IIIC IP68 T80℃ Db SPECIFICATIONS ProductsEx-LevelATEX II 2G Ex d IIC T6 Gb II 2D Ex tb IIIC IP68 T80℃ Db Ingress Protection levelIP66 Cameraimaging sensor1/2.8″ Progressive Scan CMOS Signal SystemPAL/NTSC minimal illuminationColor ：0.05Lux @ (F1.6，AGC ON) BW ：0.01Lux @(F1.6，AGC ON) Day/NightICR auto switch SNR>52dB electronic shutter1/1S ~ 1/30,000S resolution ratio50HZ:25fps(1920×1080) 60HZ:30fps(1920×1080) 50HZ:25fps(1280×720) 60HZ:30fps(1280×720) White balance1/ 2Automatic / manual / indoor / outdoor lamp / fluorescent lamp 3DDNRSupport Lensfocal distance4.3-129mm, 30x ApertureF1.6 – F5.0 horizontal view angle65.5-2.11 degree (Wide-Tele) Min-working distance10-1500mm(Wide-Tele) Zoom speedApprox.3s(Optical Wide-Tele) Menu controlexposure modeAuto exposure / aperture priority / shutter priority / manual exposure Focusing modeAuto /manual /one time focusing Compression standardVideo compression standardH.265/H.264 /MJPEG Output compression rate32 Kbps~16Mbps Audio compression standardG.711-a law、G.711-u law、G.726 ImageImage setSaturation, brightness, contrast NetMemorySupport micro SD Intelligent alarmmotion detecting,fault block alarm、the memory full, memory fault Support protocolsTCP/IP、HTTP、DHCP、DNS、DDNS、RTP、RTSP、PPPoE、SMTP、NTP、UPnP、SNMP、FTP、802.1x、QoS、HTTPS、IPv6 (SIP、SRTP、 Optional PTZ functionRotation rangeHorizontal ：0～355°Vertical: ：±90° Rotation speedHorizontal ：9°/S Vertical: ：6°/S monitoringlocation255 locations can be set Communication methodRS485 Boad rate2400 / 4800 / 9600 bps Communication protocolPELCO－D、PELCO－P etc . monitoringlocation settingaccuracy±0.1° LaserThe laser wavelength,808nm Light angle≥ 25° Irradiation distance100 m InterfaceAudio input1 path Audio output1 path Alarm input1 path（optional ） Alarm output1 path（optional ） InterfaceprotocolsONVIF、PSIA、CGI Other specificationTemperature range-40℃～60℃ Relative humidity≤ 95%（ 25°C） Atmospheric pressure80kpa～106 kpa Material304 stainless steel(316, 316L for optional) Supply voltageAC220V/AC24V optional Inlet hole specificationsG-3/4″x 1 Electrical connection10-core composite cable Thermostat SystemOptional External dimensions352mm*290mm*368mm Installation methodbracket or base installtion
