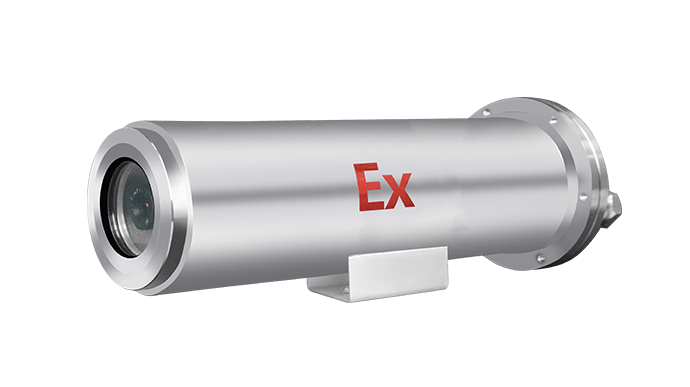

Description Intrinsically Safe Explosion Proof Camera Housing TX-EX553-H1SAD Product Features Equipped with the latest SONY CCD program, the resolution of the analog camera can reach up to 800TVL; When visible light is insufficient, automatic day and night conversion, clear and meticulous color lifelike high-quality picture; Photosensitive performance is greatly improved, and the minimum illumination is as low as color
[email protected]; The latest fourth-generation wide dynamic technology, the dynamic range is greater than 75dB, the effect improvement is very obvious; 3D digital noise reduction technology, increase the noise reduction processing of the original signal, the image at night is clean and bright; Introducing Intrinsically Safe Explosion Proof Camera Housing TX-EX553-H1SAD Optical grade high-strength and high-transmittance ultra-white explosion-proof glass, with light pass rate higher than 96%; Nano invisible wiper, not sticky water, not sticky oil, dust repellent; High hardness special carbon steel by fluorocarbon high temperature spray baking or stainless steel polishing/passivation process, explosion-proof, dust-proof, waterproof, rust-proof; Optional semiconductor silicon controlled temperature control module to realize automatic heating and cooling functions. SPECIFICATION ModelTX-EX553-H1S(A/[A]/N)D Certification Explosion-proof marksExdⅡCT6Gb/ExtD A21 IP68 T80℃ Explosion-proof certificate NoCNEx15.3653 Mechanical properties of the materialCarbon steel or 304 stainless steel Surface treatmentHigh temperature fluorocarbon spray baking or stainless steel primary color Protection gradeIP68 The interface specificationG-3/4" The weight of the installation wall≤8kg Electrical performance The input voltageDC12V或AC110-240V Working current≤2000mA The CameraImaging device5 megapixels 1/2.5 "CMOS sensor (network) 1/3SONY Super EFFIO HAD/Exview HADII CCD Sensor(simulated) Effective pixels1.3 megapixels /2 megapixels (network) 700TVL(simulated) 2 million 1080P(coaxial HD) [SUPPORT AHD/HDCVI or HDTVI format] The lens4mm/6mm/8mm/12mm/16mm Signal to noise ratio＞52db Minimum illumination0Lux(infra-red on) Infrareddistance30m The wavelength850nm On/offAuto(≤10Lux) Electrical connectionCompound cable (network power supply), or network cable, power supply separate outlet The environment temperature（-30℃， 70℃） The atmospheric pressure80-106KPa Relative humidity≤95%RH( 25℃)
