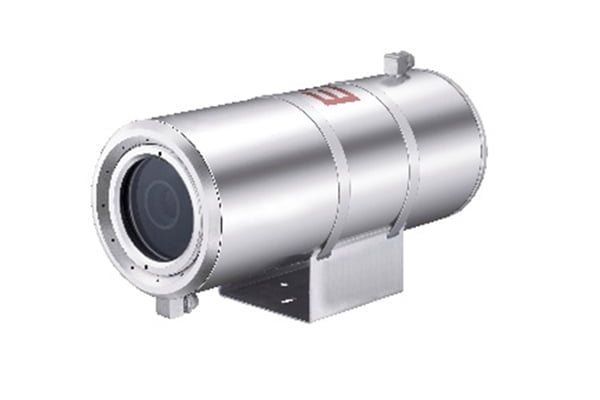

Kaixuan KX-EX01PWFS Explosion Proof Air-Water cooling Camera Enclosure
$64.53
$107.12
Description Features: Air-water cooling enclosure KX-EX01PWFS can up to 200-degree high temperature inside size:Φ100*300mm window size:Ф75mm can assemble box camera, all-in-one camera double-layer structure, auto-running water/air compress cold 200-degree high-temperature Housing double-layer structure, water & wind cold use high-temperature window which can up to 200 degree Made of 304 stainless steel material. apply to a strong corrosive environment NOTE: housing only without a camera inside Specifications: Ingress Protection levelIP66 Max Temperature of Windows≤200℃ The maxium Cooling water flow0.82 m3/h The working cooling water pressure＞0.25Mpa The maxium Cooling water pressure0.6Mpa Air pressure≥0.4Mpa air flow rate10.5L/Min Relative humidity≤95%（ 25°C） Atmospheric pressure:80kpa～106 kpa Supply voltageDC12V /AC220V optional Material304 stainless steel Inlet interface specificationsG3/4″ x 2 External dimensions 351.5x140x182.5mm Inside dimensionΦ100mm*300mm（length ） Windows areaΦ65 Installation MethodPTZ , Wall Hanging dyadic , fixed bracket , Pillarbase More Options For You: Kaixuan KX-EX1000PPS Explosion Proof PTZ CCTV Camera Enclosure Explosion Proof PTZ Enclosure CCTV Camera Housing Kaixuan KX-EX1000ZPPS Explosion Proof CCTV Camera Housing Kaixuan KX-EX1000ZPPY
