$51.63
$97.58

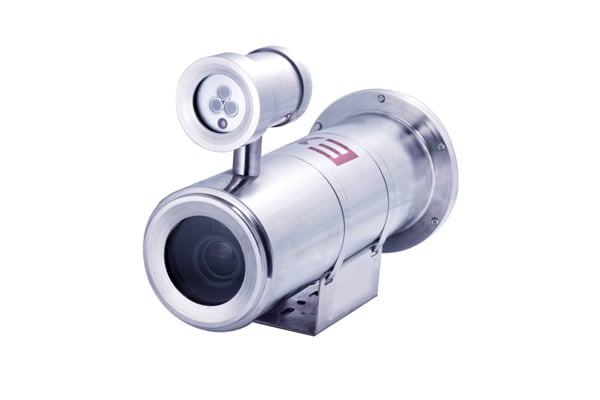

Description Kaixuan KX-EX707PW Explosion Proof CCTV Camera – Superior Security for Hazardous Areas The Kaixuan KX-EX707PW Explosion Proof CCTV Camera is an advanced surveillance solution engineered to provide high-quality monitoring in hazardous environments. With its rugged explosion-proof design, this camera is built to withstand volatile atmospheres, making it ideal for use in the oil and gas, chemical, and heavy industrial sectors. Designed with cutting-edge technology, the KX-EX707PW offers reliable video surveillance while meeting stringent safety standards for explosive zones. Key Features: Explosion-Proof Construction: Certified for use in hazardous areas with flammable gases and dust. Durable Stainless Steel Build: Constructed from corrosion-resistant materials to ensure long-lasting performance. High-Definition Video: Delivers clear and detailed imagery, even in challenging conditions. Day/Night Functionality: Equipped with an automatic IR cut filter for effective 24/7 surveillance. Wide Temperature Range: Functions reliably in extreme temperatures, making it ideal for various environments. Seamless Integration: Compatible with most industrial security systems, allowing for easy deployment. IP68 Rating: Fully dust-tight and waterproof, perfect for outdoor and industrial use. Applications: Oil and Gas Refineries: Provides safe and effective surveillance in explosive gas areas. Chemical Processing Plants: Monitors hazardous zones without compromising safety. Mining Sites: Offers rugged durability in both above-ground and underground operations. Maritime Environments: Suitable for use on ships and offshore oil platforms. Industrial Manufacturing: Ensures continuous monitoring in areas with volatile dust and chemicals. Specifications ProductEx-LevelATEX II 2G Ex d IIC T6 Gb II 2D Ex tb IIIC IP68 T80℃ Db CameraIngress Protection levelIP66 imaging sensorSONY1/3″CMOS DSPTI-DSP minimal illuminationColor
[email protected], BW0.01
[email protected]; Day/NightIR-CUT auto-switch DNR3D focal distance 2.8-12mm Aperture control Auto Automatic aperture DC-drive motion detectingsupport Compression standardVideo compression standardH.264/MJPEG H.264 encoding typeBaseLine Profile / Main Profile Video compression standard32 Kbps~8Mbps ImageMaximum resolution1920×1080 Frame rate2 megapixel and following 25 frame(full-time), support 1~25 fps is adjustable; Video outputMain Stream:1920×1080,1600×1200,1280×1024,1280×960,1024×768,1280×720;Sub Stream: 640×360,480×270,352×288,320×240,352×192,320×192,288×192,256×192; Image settingRotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser NetInterface protocolsONVIF,PSIA,CGI,ISAPI,GB28181 Support protocolsRTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc. audio interfaceoptional Alarm interfaceoptional Laser lampIR distance50MM 100M（optional） IR switchIR lamp Auto-open when <0 Lux wavelength,808nm Other specificationTemperature range-40℃～60℃ Relative humidity≤ 95%（ 25°C） Atmospheric pressure80kpa～106 kpa Thermostat System optional Supply voltageDC12V /AC220V（optional ） Suitable EnvironmentApply to explosive gas and combustible dust environment Material304 stainless steel (316, 316L for optional) Inlet hole specifications G3/4″ X 2 External dimensions380mm*144mm*232mm Installation methodPTZ,Wall Hanging dyadic , fixed bracket , Pillar base Package Includes: Kaixuan KX-EX707PW Explosion Proof CCTV Camera Wall/Ceiling Mounting Bracket Power Supply Cables User Manual Warranty Card Benefits: The KX-EX707PW enhances operational safety and security in hazardous locations by providing continuous, high-quality video surveillance. Its rugged, explosion-proof design minimizes the risk of ignition in dangerous environments, allowing for safe monitoring and reducing downtime caused by safety concerns. The camera’s weatherproof and durable design ensures a long lifespan, even in extreme conditions, offering reliable performance with minimal maintenance. Resources and Certifications: Certificate Datasheet Accessories: Mounting Accessories: Pole mount, corner mount, and wall mount options. Additional Power Supplies: Available for AC/DC power conversion. Lens Accessories: Protective lens covers, wipers for clear imaging in tough conditions. Cabling Options: Ethernet and power cables are available for specific installation needs. More Options for You: Kaixuan KX-EX701PWC5: Explosion-proof camera designed for confined spaces with a compact form factor. Bartec Impact X: An explosion-proof camera with smartphone capabilities for enhanced mobility. DPI 610 PC/IS Pressure Calibrator: For industrial pressure calibration in hazardous zones. Extra Information: Warranty: 2-year limited manufacturer’s warranty. Availability: Available for pre-order; ships in 6-8 weeks.
