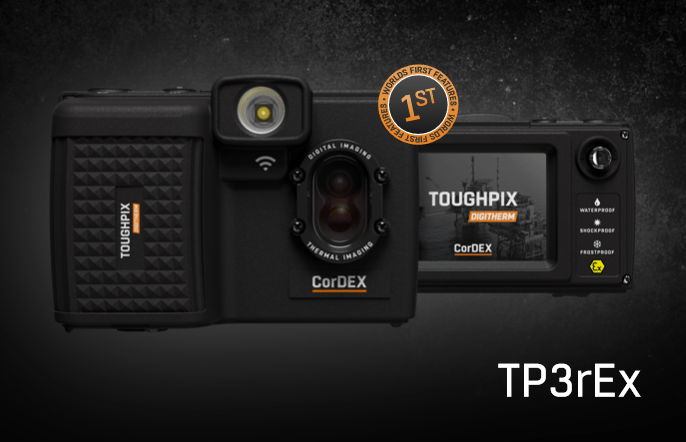

Description Intrinsically Safe Camera CorDEX ToughPix DigiTherm TP3REX is a rugged digital and thermal imaging camera to travel with you anywhere. This high-powered explosion-proof camera features 5MP visual sensor with automatic motorized focus, 8GB removable CorDEX memory card, LED flash, real-time visual and thermal image blending, and wireless connectivity. Manufactured from lightweight aircraft-grade aluminum weighing in at only 13.4oz, ToughPix DigiTherm Camera TP3REX is your lightest digital camera companion in extreme environments. FEATURES: ATEX Zone 1 and 2 Ex ib IIC T4 Gb Ta = -10˚C to 40˚C Groups A, B, C, D, T4 t Ta = -10C to 40C Temperature Classification: T4 Adaptive thermal blending Capture high-resolution visual images with a 5MP visual sensor Ultra-bright LED flash Removable CorDEX Memory card Alarm triggered recording Weighs in at less than 400grams Wifi-enabled Sleek and rugged compact design Download images directly to your tablet or smartphone with the CorDEX CONNECT Mobile app Rechargeable removable battery Powerful LED flash for low light imaging Soft-touch buttons for ease of use Motorized optical focus Never bulky and never heavy. Weighing in at only 380g, Intrinsically Safe Camera ToughPix DigiTherm TP3REX is light enough to be held in the palm of your hand. It allows infrared vision with its super-sensitive 80×60 thermal array. A temperature range of -10 °C (14 °F) to 380 °C (716 °F) may be measured on the screen of the gadget. The ToughPix DigiTherm Camera TP3REX can wirelessly send both infrared and visible images to your PC or smartphone. There’s no need to stress about tangled connections any more. Miss no details. Above all, the device automatically saves visual and thermal images at intervals of 30 seconds, 1 minute, 2 minutes, and 5 minutes. It also features a removable 4GB memory card and USB card, reader. Menus are quick and easy to navigate with simple joystick navigation. The CorDEX wrist strap makes this device very easy to carry. The strap allows the user to wear it on either the right or left-hand side of the camera. Specifications: Certificate Information StandardsATEX Zone 1 and 2 Ex ib IIC T4 Gb Ta = -10˚C to 40˚C Groups A, B, C, D, T4 t Ta = -10C to 40C General Information Image Download WIFI & removable memory card (safe area only) Image Storage 8GB Standard Image Capture Resolution 5 Megapixel Screen Size 2.8 inches Detailed Information Lens & LCD material Armoured Glass Weight 13.4oz IP 54 Body Material Anodised aluminium with polymeric materials Dimensions Length 4.4in: Height: 2.9in Width: 1.7in Electrical Information Battery Type Removable & Rechargeable Ex Power Battery Capacity 1900mAh Cell Type Lithium Ion Thermal Radiometric Capability Sensor 80x60 Pixel Array Imaging Adaptive thermal blending for dual mode imaging Low Range14°F to 284°F with /-28.4°F or /-2% accuracy High Range 14°F to 716°F with / 23°F or /-5% accuracy Certifications: ATEX Certification IECEx Certification Resources: Data Sheet User Manual Brochure Instructions for Safe Use 5MP Camera Function ATB Explanation For Intrinsically Safe Camera CorDEX ToughPix DigiTherm TP3REX Firmware Update, CLICK HERE.
