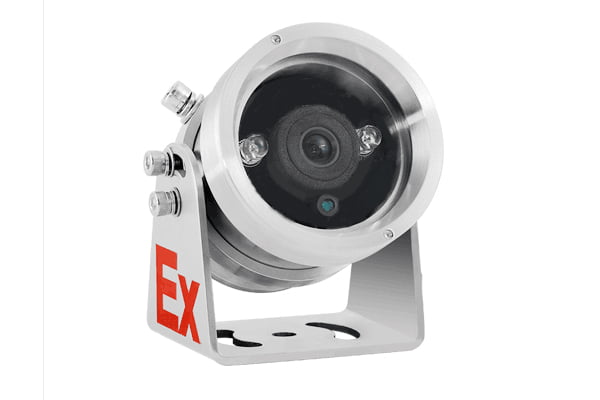

Description Use in ATEX Zone 1/21 hazardous areas. The Kaixuan KX-EX701PWC2 Explosion Proof CCTV Camera is a 2.0 megapixel CCTV camera with a high resolution of up to 1920 x 1080 pixels. Heavy-duty IP66, explosion-proof, anti-corrosion, waterproof. This Explosion Proof CCTV Camera is made of 304 stainless steel. It also supports ONVIF, HIKVISION, and DAHUA technologies. One of the many features of the Kaixuan KX-EX701PWC2 Explosion Proof CCTV Camera is equipped with a 10-30m IR distance, Sony 1/3″ CMOS imaging sensor, 4mm – 6mm optional lens, glass surface process by nanotechnology, and special anti-shock engineering technology. Powered by 12V DC supply voltage. Features: ATEX Zone 1&2 / 21&22 Class 1 Division 1 & 2 / Class 2 Division 1 & 2 and all the rest except zone 0. 2.0 Megapixels mini mobile type IR distance:15m Lens: 4/6mm for optional Support ONVIF, support HIKVISION, DAHUA DC12V for optional Adopt SONY 1/3″CMOS Senor, resolution up to 1920×1080 pixel High-quality IR lamp, long service life, low power consumption, irradiation distance up to 15 meters Windows glass surface process by nanotechnology. Well, light transmittance. non-stick oil/dusty /water Low power consumption, the fuselage internal air convection heat dissipation design, can work continuously for a long time Special Anti-shock Engineering technology processing, infrared lighting, apply to different environments small volume, lightweight, is specifically designed to meet the transport of dangerous goods vehicles or small area Made of 304 stainless steel material. apply to a strong corrosive environment. SS316L for optional Specifications: ProductsEx-LevelATEX II 2G Ex d IIC T6 Gb II 2D Ex tb IIIC IP68 T80℃ Db Ingress Protection levelIP66 Cameraimaging sensorSONY1/3″CMOS CPUTI- DSP minimal illuminationColor
[email protected],BW0.01
[email protected]; Lens specification4mm、6mm optional Day/NightIR-CUT auto-switch DNR3D –DNR Motion detectingsupport Compression standardVideo compression standardH.264/MJPEG H.264 encoding typeBase Line Profile / Main Profile Compression output rate32 Kbps~8Mbps ImageMax resolution1920×1080 Frame rate2 megapixel and following 25 frame(full-time), support 1~25 fps is adjustable; Video outputMain:1920×1080,1600×1200,1280×1024,1280×960,1024×768,1280×720;Sub: 640×360,480×270,352×288,320×240,352×192,320×192,288×192,256×192; Image settingRotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser NetInterface protocolsONVIF,PSIA,CGI,ISAPI,GB28181 Support protocolsRTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP etc audio interfaceOptional Alarm interfaceOptional IRIR lrradiation distance15m IR switchIR lamp Auto-open when <0 Lux wavelength850nm Other specificationTemputure range-40℃～60℃ Relative humidity≤ 95%（ 25°C） Atmospheric pressure80kpa～106 kpa Thermostat SystemOptional Supply voltageDC12V Suitable envirmentApply to explosive gas and combustible dust environment Material304 stainless steel， 316, 316L for optonal Inlet hole specifications14mm*1.5mm x 1 External dimensions140mm*92mm*104mm Installation methodbracket or base installtion Certifications: ATEX Certificate Declaration of Conformity Resources: Kaixuan KX-EX701PWC2 Spec. Sheet More Options For You: Kaixuan KX-EX707PW Series Explosion Proof CCTV Camera Kaixuan KX-EX707PWF2 Explosion Proof Camera Kaixsuan KX-EX707PWV2 Explosion Proof Camera
