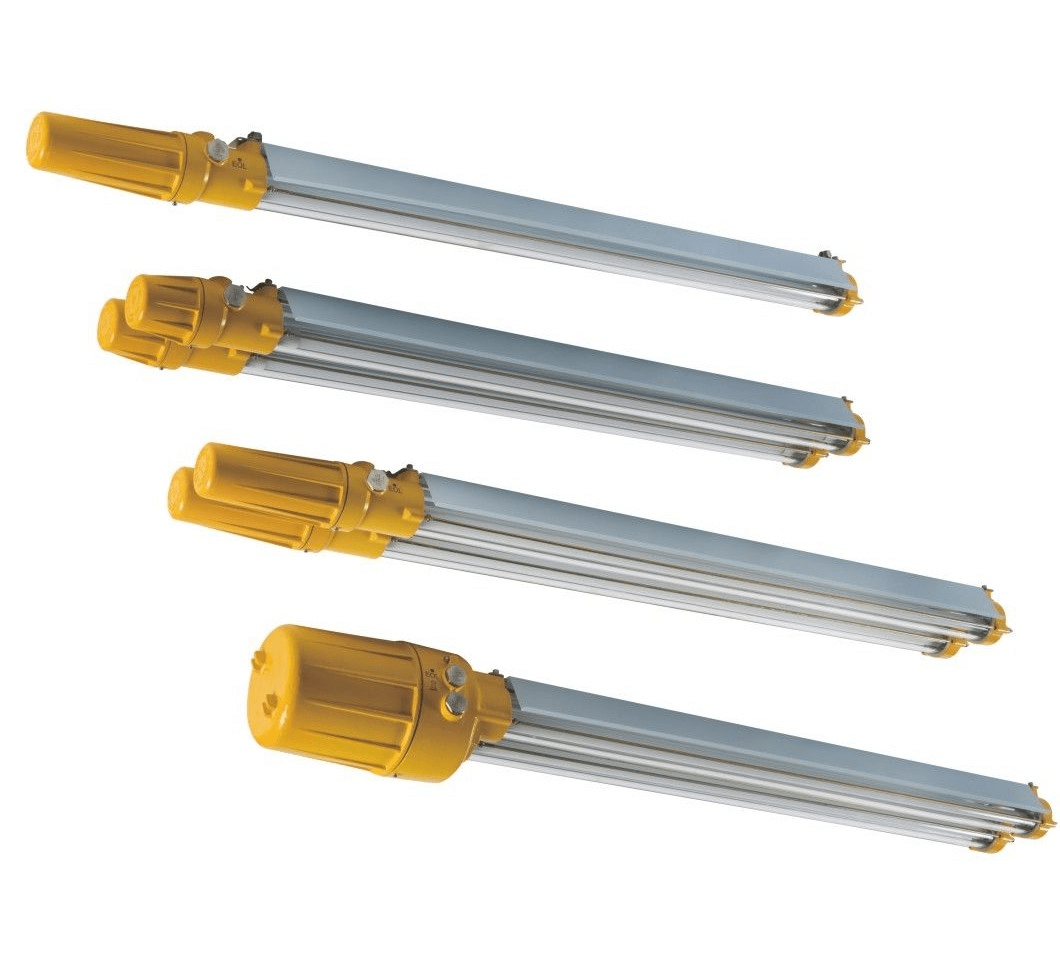

Warom BAY51 Explosion Proof Light Fittings
$ 51.03
Description Features: Enclosure in Copper-free Aluminium Alloy, powder-coated surface, yellow (RAL1021). Built-in electronic ballast, wide voltage input, rapid starting, stable performance, power factor≥0.95. Built-in LED driver, wide voltage input, CC-CV (constant current – constant voltage) output, power factor≥0.95. End of lamp life (EOL) rectification effect protection. Specifications: Global (IECEx)IECEx CQM 12.0042X Gas and dustEx d IIC T6 Gb; Ex t IIIC T80℃ Db IP66 Europe (ATEX)LCIE 09 ATEX 3046 Gas II 2 G Ex d IIC T6 Gb II 2 G Ex tb IIIC T80℃ Gb IP66 CertificatesIECEx; ATEX; CU-TR Conformity to standardsEN; IEC Degree of protectionIP66/IP67 Ambient temperature-20℃~ 55℃ Data MaterialCopper-free Aluminium Alloy, powder coated surface, yellow (RAL1021) Toughened glass, stands 4J impact Weight5.6~19.2kg Dimensions1878x210x250mm Lamp specificationT8 tube Lamp power (W)18W（18W/58W） x 1；18W（18W/58W） x 2 Rated voltage100~300V AC 50/60Hz Rated luminous flux1300~10000lm Terminal3 x 1.5~4mm2 (L N PE) Cable entries4 Cable gland (optional)DQM-II (Ex d) or DQM-III (Ex d)
