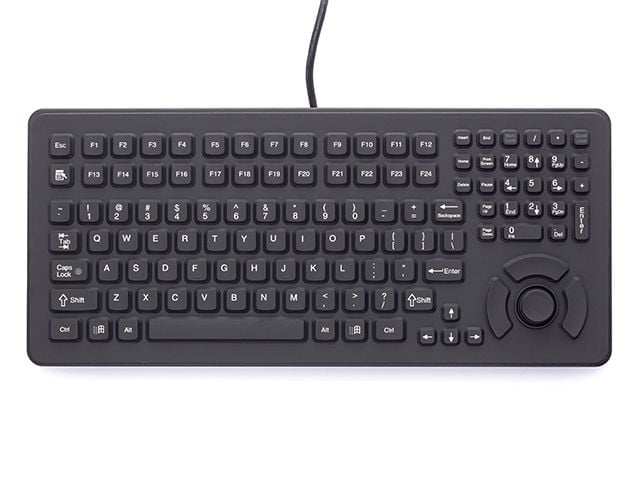

Description An incendiary NEMA 4X DU-5K-FSR-NI is developed for use. It has an ABS polycarbonate body and 116 keys of functionality, including 24 function keys. Class I, Division II, has been approved by Factory Mutual. Isolation barriers are included in these units. Because of this, they are well-suited to grueling job environments. Improved sensitivity and durability are provided via an updated FSR pointing device. Features: Class I, Division II, Gas Groups C, D, E, F, and G 10-Key Numeric Pad 116-Key Functionality 24 Function Keys Integrated Force Sensing Resistor (FSR) Pointing Device Polycarbonate Case with Mounting Holes PS/2 or USB configurations are available PS/2 ships with bulkhead cables USB ships with PG7 cable gland Material: industrial silicone rubber Life: 10 million cycles 100% Humidity Resistant 1 year limited warranty Specifications: CERTIFICATIONSNEMA 4X, UL60950, FCC Part 15 Class B Factory Mutual Class I, Division II, Gas Groups C, D, E, F, & G SHOCK3x11 ms pulses of 50g on each of 3 axes CABLELENGTH: 5 feet from keyboard to Bulkhead Connector DESIGN: 2 separate cables on PS/2 or single-cable USB KEY SWITCHMATERIAL: Industrial silicone rubber LIFE: 10 million cycles TRAVEL: 0.055 in. (1.4mm) ACTUATION FORCE: 6.35 oz /- 1.06 oz (200g /- 30g) FEEDBACK: Tactile with mechanical snap VIBRATIONPOWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 kHz DURATION OF TEST PER AXIS: 3 hours POWERKEYBOARD: 5V@ 10 ma (from CPU port) HULAPOINT: 5V@ 10 ma (from mouse conn. port) COMPATIBILITYPS/2 KEYBOARD/HULAPOINT: All Windows Operating Systems USB KEYBOARD/HULAPOINT: All Windows and Macintosh OS TEMPERATURE RANGESTORAGE: -40C to 70C (-40F to 158F) OPERATING: -20C to 60C (-4F to 140F) WEIGHT2.6 lbs /- 0.10 lbs (1.7 kg /- 0.05 kg) WARRANTY1 year limited warranty HUMIDITY100% Humidity Resistant DIMENSIONS14.94" x 6.63" x 1.81" (w-h-d) 379.5mm x 168.4mm x 46mm MODEL NUMBERSDU-5K-NI-PS2: With PS/2 cable DU-5K-NI-USB: With USB cable Certifications: Certificate of Conformity Resources: Product Data Sheet Control Drawing MKT Drawing Warranty More Options For You: iKey PM-5K-FSR-IS Industrial Keyboard
