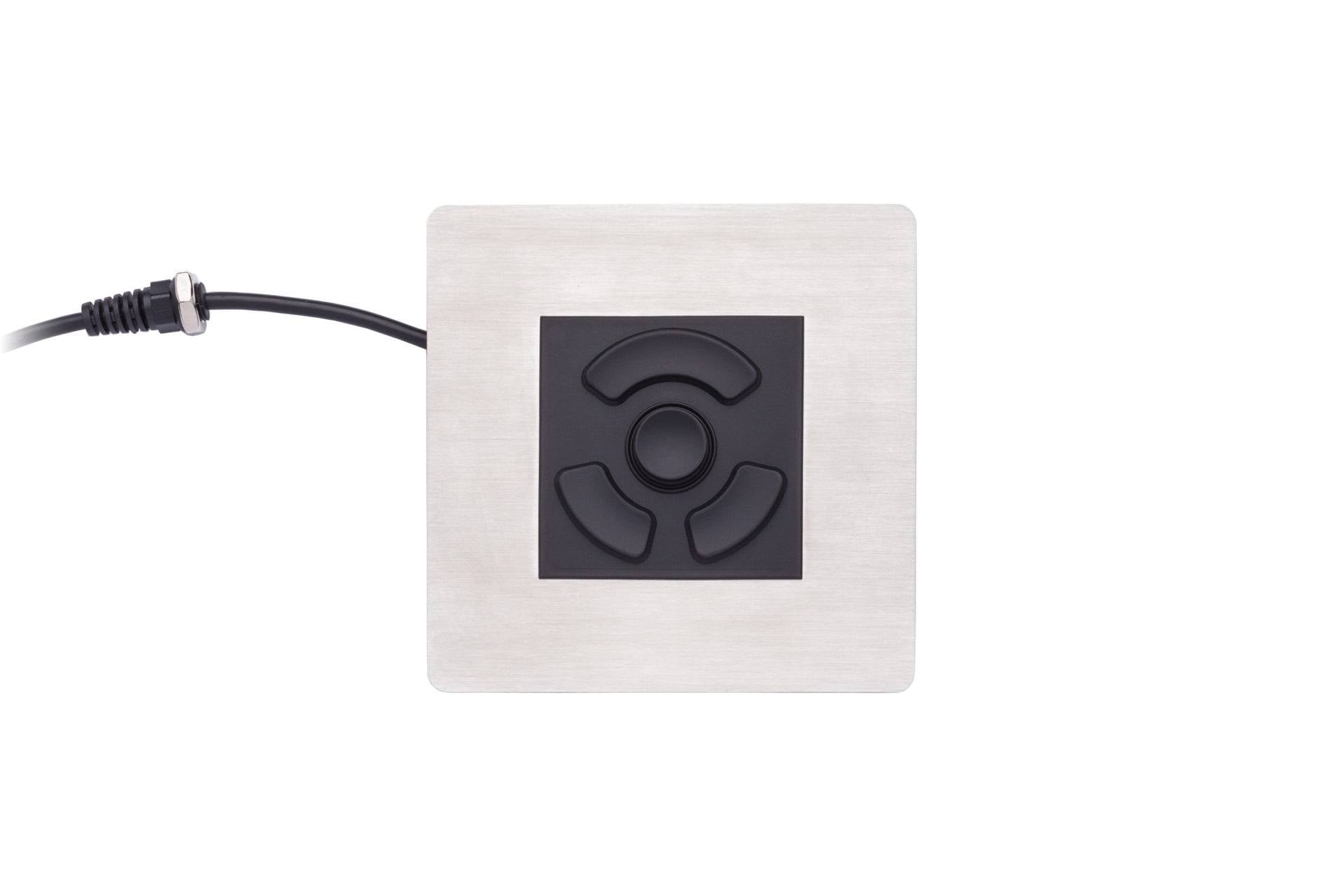

Description When it comes to improving sensitivity and enhancing durability, the Intrinsically Safe Pointing Device (ISPPD) is already shipping. This hazardous location-approved pointing device, the iKey HP-PM-FSR-NI w/ Force Sensing Resistor Panel Mount Mouse, has a Force Sensing Resistor Panel Mount Mouse. A Pointing Device That Is Always Safe FSR Panel Mount Mouse, which has the FM Approvals Non-Incentive Certification and is made of stainless steel, has a Force Sensing Resistor pointer as well as three mouse buttons. The FSR can survive the spills, washdowns, pollutants, and impacts of an industrial environment thanks to its totally sealed NEMA 4X construction. The HP-PM-low-profile NI’s design has no exposed parts that may break and no moving parts that could accumulate dust. Also, incorporate a panel mount. The iKey PS2-IS-BARRIER must be used in conjunction with the pointing device for hazardous areas. Features: Class I, Division II, Groups A, B, C, and D NEMA 4X Non-incendive for use in hazardous locations PS/2 or USB configurations are available ( PS/2 ships with bulkhead cable. USB ships with PG7 cable gland ) Stainless Steel Bezel Panel mount 100% Humidity Resistant (when properly installed) 1 Year Limited Warranty The transition from CTS to Force Sensing Resistor: No mechanical parts: visible change, improved technology, better accuracy, and smoother use Longer life: 420,000 hours – 7x more than the CTS (60,000) CTS: mechanical damage was higher, moving from cap and stick to a rubber resistor Specifications: CERTIFICATIONSNEMA 4X, CE UL60950, FCC Part 15 Class B Factory Mutual Class I, Division II, Groups A, B, C, and D SHOCK3x11 ms pulses of 50g on each of 3 axes CABLE5 feet (1.5 m) from keyboard to Bulkhead Connector KEY SWITCHMATERIAL: Industrial silicone rubber LIFE: Greater than 10 million cycles TRAVEL: 0.055 in. ACTUATION FORCE: 200g ( /- 20g) FEEDBACK: Tactile with mechanical snap VIBRATIONPOWER SPECTRAL DENSITY: 0.04g/Hz FREQUENCY RANGE: 20Hz - 2 Khz DURATION OF TEST PER AXIS: 3 hours COMPATIBILITYPS/2: All Windows Operating Systems USB: All Windows and Macintosh OS TEMPERATURE RANGESTORAGE: -40C to 70C (-40F to 158F) OPERATING: -20C to 60C (-4F to 140F) WEIGHT1.25 lbs (0.57 kg) WARRANTY1 Year Limited Warranty HUMIDITY100% Humidity Resistant (when properly installed) DIMENSIONS6.0" x 6.0" x 1.12" (w-h-d) 152.4mm x 152.4mm x 28.4mm MODEL NUMBERSHP-PM-NI-PS2: With PS/2 cable HP-PM-NI-USB: With USB cable Certifications: Certificate of Conformity Resources: Product Data Sheet Control Drawing MKT Drawing Warranty More Options For You: iKey HP-DT-NI Pointing Device
