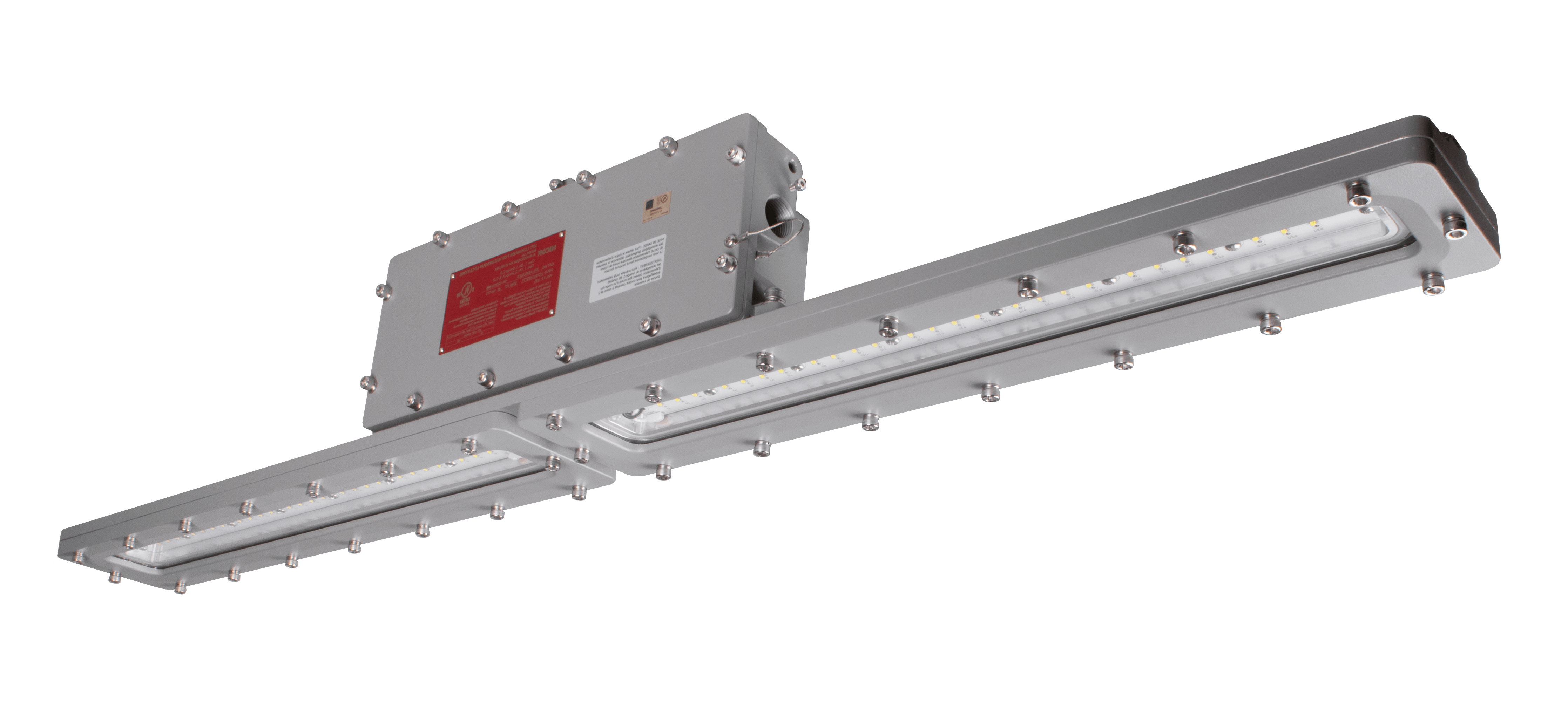

NICOR – XPL1A080U50GR Proteus 80-Watt LED Linear Light

Description LED Linear Light that Is Intrinsically Safe NICOR – XPL1A080U50GR Proteus is intended for use in environments prone to dampness, filth, corrosion, and vibration. Proteus fixtures are available in Class 1 Division 1 in 40W with a two-foot length or 80W with a four-foot length for use in situations deemed hazardous by the presence of combustible vapors or gases as specified by the NEC. The Proteus Series is perfect for retrofitting existing HPS/MH & FL systems since it provides increased efficacy, cheaper maintenance costs, and shorter payback periods. Features Class I Division 1, Group C, D Class I Division 2, Group A, B, C, D 80 Watt LED Linear 100-240/277 VAC 5000K Housing: Die-Cast Aluminum *Copper Free Polyester Powder Coat Finish Lens: Tempered Glass Meets FCC Part 15, Subpart B, Class A standards for conducted and radiated emissions 5-year limited system warranty standardNote: Warranty does not cover product failure due to an overvoltage event or power surge Construction Heavy-duty die-cast copper-free aluminum housing Stainless steel hardware 3/4″ NPT threaded conduit wires access ports Weight – 2’: 16.1 lbs; 4’: 23.8 lbs RoHS Compliant Captive bolts on power supply cover Optical System A heavy-duty tempered glass lens creates uniform light distribution and maximizes lumen output Diffused lens optional** CCT: 5000K, 3000K**, or 4000K** CRI: 70 Electrical Input voltage of 100-240/277VAC or 347-480VAC** The input frequency of 50/60Hz Power Factor of ≥.95 THD <20% 10kA surge protector Reported L70 hours >50,000 Environmental Ambient Operating Temperature -40°F (-40°C) ~ 140°F (60°C) C1D1 T6 at 140°F (60°C) C1D2 T3C at 140°F (60°C) Ambient Operating Humidity of 10%~90% RH Finish RAL 7037 Dusty Gray polyester powder coat Installation Prewired with 2’ flying leads Allows wiring without opening the power supply cover Integrated 3/4” NPT threaded hub for pendant mount Universal trunnion bracket available, with legacy bolt pattern (drill rigs) Pipe mount kit available For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel Warranty 5-year limited system warranty standard The warranty does not cover product failure due to an overvoltage event (power surge) Specifications Primary Component MaterialDie-Cast Aluminum (Copper Free) Product ColorDusty Gray FinishPolyester Powder Coat Product Length (in)43.3 Voltage100-240/277VAC Wattage80.8 Lumen Output9160 Lumens Per Watt113.4 Color Temperature (CCT)5000K CRI>70 Beam Angle120° ( /- 10%) Spacing Criteria1.34 120V Current (A)0.67 277V Current (A)0.29 Power Factor≥.95 Total Harmonic Distortion (%)<20% Operating Temperature-40°F to 140°F (-40°C to 60°C) Product Lifespan (Hours)>50,000 Warranty (Years)5 Resources: Brochure Certification Spec Sheet Certifications Features and Benefits Proteus Installation Instructions More Options For you: NICOR – XPQ1B150U50GRP Titan LED Flood Light 150 Watt LED NICOR – XPR1B065U50GRM Eres Multi-Mount LED Area Light 65 Watt
