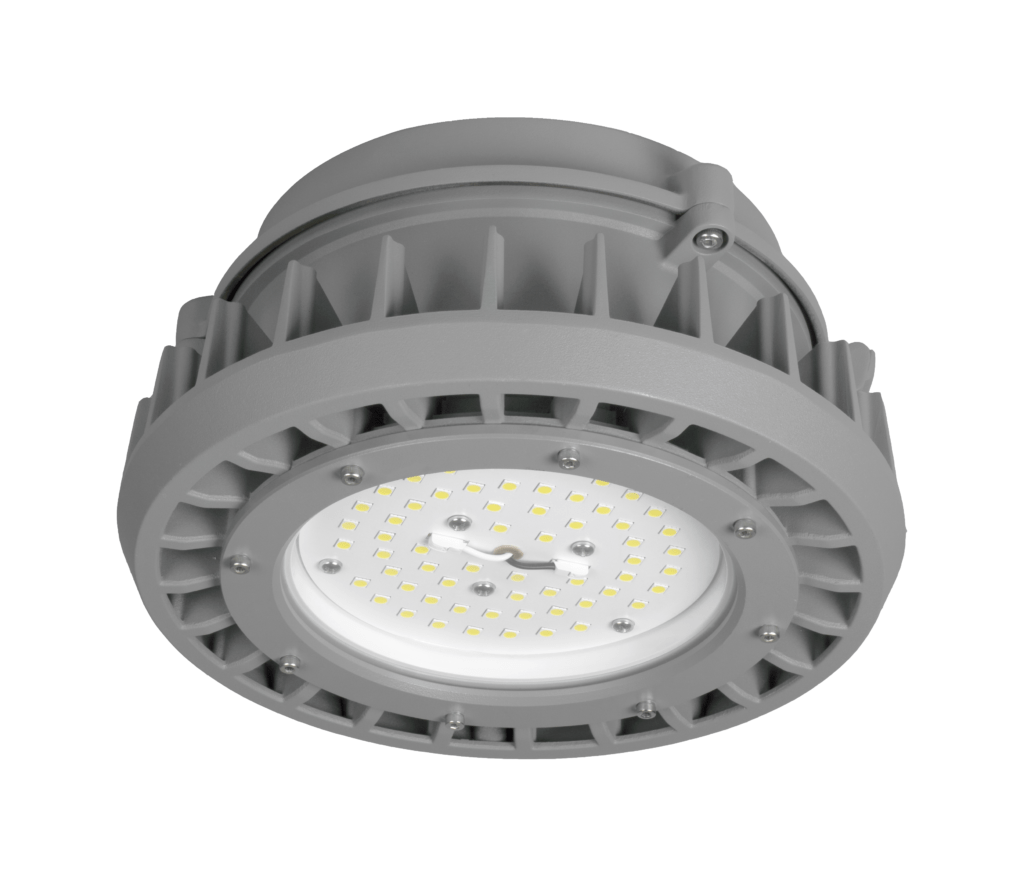

NICOR – XPR1B045U50GRP Eres HazLoc 45 Watt LED Area Light – with Pendant Mount

Description Installations where moisture, dirt, dust, corrosion, and vibration are possible, as well as NEMA 3 and 4X regions where wind, water, snow, or high ambient temperatures might be expected, call for the Eres Hazardous Location LED Area Light. For use in hazardous environments, as defined by the National Electrical Code (NEC), when flammable vapors, fumes, or combustible dust exist. A 45W and a 65W version of Eres C1D2 fixtures are available. For retrofitting existing HPS/MH systems, the Eres is a great option because of its improved efficacy, cheaper maintenance costs, and shorter payback periods. Features: Class I Division 2, Group A, B, C, D Class II Division 1, Group E, F, G Class II Division 2, Group F, G Class III UL 844 Hazardous Location UL 1598 Wet Locations UL 1598 A, Marine UL 8750 LED Safety IP 66 Rated Pendant Mount DLC Certified* (5000K only) CSA C22.2 No. 250.0-08, 250.13 IECEx Color: Dusty Gray Polyester Powder Coat Finish Housing: Die-Cast Aluminum (CopTempered Glasper Free) Lens: Tempered Glass Voltage: 100-240/277 VAC Operating Temperature: -40°F to 131°F (-40°C to 55°C) 10kA surge protector Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions Construction Die-cast, copper-free aluminum housing Chimney type structure design improves heat dissipation, increasing the lifespan Stainless steel hardware Weight – 10.8 lbs 3/4” NPT threaded conduit/wire access port or multi-mount attachment points RoHS Compliant Optical System Tempered glass creates uniform light distribution and maximizes lumen output Diffused lens optional** CCT: 5000K, 3000K**, or 4000K** CRI: 70 Electrical Input voltage of 100-240/277VAC or 347-480VAC (45W only)** The input frequency of 50/60Hz Power Factor of ≥.95 THD <20% 10kA surge protector Reported L70 hours >50,000 Environmental Ambient Operating Temperature -40°F (-40°C) ~ 131°F (55°C) C1D2 T4A at 131°F (55°C) C2D1 T5 at 131°F (55°C) C2D2 T5 at 131°F (55°C) Ambient Operating Humidity of 10%~90% RH Finish RAL 7037 (Dusty Gray) polyester powder coat Installation Mounting Options Include: Multi-mount and associated accessories Adjustable trunnion bracket for ceiling, wall, etc. Pendant (3/4” NPT) For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel Warranty 5-year limited system warranty standard The warranty does not cover product failure due to an overvoltage event (power surge) Specifications Primary Component MaterialDie-Cast Aluminum (Copper Free) Product ColorDusty Gray FinishPolyester Powder Coat Product Length (in)10.2 Voltage100-240/277VAC Wattage42.3 Lumen Output6499 Lumens Per Watt153.6 Color Temperature (CCT)5000K CRI73 Beam Angle114.5° Spacing Criteria1.32 120V Current (A)0.353 277V Current (A)0.153 Power Factor≥.95 Total Harmonic Distortion (%)less than 20% Operating Temperature-40°F to 131°F (-40°C to 55°C) Product Lifespan (Hours)greater than 50,000 Warranty (Years)5 Certifications: Equipment Certification Requirements  Other Resources: Specifications Sheet Brochure Installation Instructions More Options For you: NICOR – XPQ1B100U50GRP Titan LED Flood Light 100 Watt West Durable Lighting Exdura 120 Explosion Proof Light
