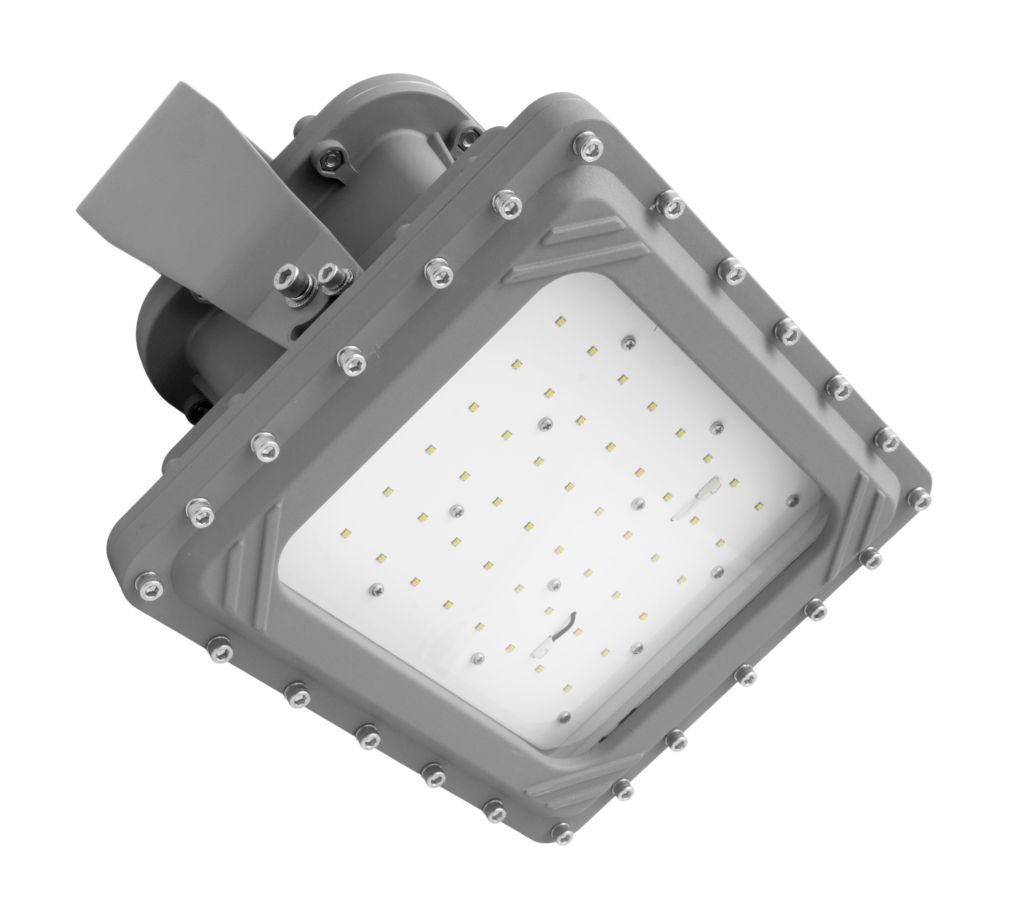

NICOR – XPQ1B080U50GRP Titan LED Flood Light 80 Watt

Description The Titan hazardous site LED Flood Light/High Bay is designed for use in situations that are subject to dampness, filth, corrosion, vibration, and harsh environmental conditions. It is authorized for Class 1 Division 2 applications, which means it may be used in places with flammable gas or vapor or spaces with combustible dust, fibers, or flyings, as described by the National Electrical Code. Features: DLC Premium UL Class I Division 2, Group A, B, C, D UL Class II Division 2, Group F, G UL844 Hazardous Location UL 1598 Wet Location UL1598A Marine UL 8750 LED Safety UL Listed CSA 22.2 No. 137-M1981 CUL Listed IP66 Rated CSA 22.2 No. 137-M1981 IECEx Ex d IIB T6 Gb/ Ex tb IIIC T85°C Db RoHS Compliant Construction Die-cast, copper-free aluminum housing Stainless steel hardware 3/4” NPT threaded conduit/wire access ports Weight – 80 & 100W: 33.1lbs (15kg); 150W: 36.4 lbs (16.5kg) RoHS Compliant Optical System Tempered glass creates uniform light distribution and maximizes lumen output Diffused lens optional** Beam Angles: 25°, 60°, and 120° (NEMA Type 2, 4, and 6) 5000K, 3000K**, or 4000K** CRI: 70 Electrical Input voltage of 100-240/277VAC or 347-480VAC** The input frequency of 50/60Hz Power Factor of ≥.90 THD <20% 10kA surge protector Reported L70 hours >50,000 Environmental Ambient Operating Temperature -40°F (-40°C) ~ 122°F (50°C) C1D2 T4A at 122°F (50°C) C2D2 T4A at 122°F (50°C) Ambient Operating Humidity of 10%~90% RH Finish RAL 7037 (Dusty Gray) polyester powder coat Installation Prewired with 2’ flying leads Allows wiring without opening the power supply cover Adjustable trunnion bracket for ceiling, wall, etc. Integrated 3/4” NPT threaded hub for pendant mount Pipe mount kit available For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel Warranty 5-year limited system warranty standard The warranty does not cover product failure due to an overvoltage event (power surge) Specifications Primary Component MaterialDie-Cast Aluminum (Copper Free) Product ColorSpacing Criteria FinishPolyester Powder Coat Product Length (in)12.9 Voltage100-240/277VAC Wattage73.6 Lumen Output9240 Lumens Per Watt125.5 Color Temperature (CCT)5000K CRI70 Beam Angle120° ( /- 10%) Spacing Criteria1.33 120V Current (A)0.613 277V Current (A)0.266 Power Factor?.90 Total Harmonic Distortion (%)<20% Operating Temperature-40°F to 122°F (-40°C to 50°C) Product Lifespan (Hours)>50,000 Warranty (Years)1. 5 Certifications: Titan Equipment Certification Requirements Resources: Specification Sheet Installation Instruction Brochure More Options For you: Tomar 3024XLW – Wall Mount, 12-36 VDC Explosion Proof Lighting NICOR – XPR1B065U50GRM Eres Multi Mount LED Area Light 65 Watt
