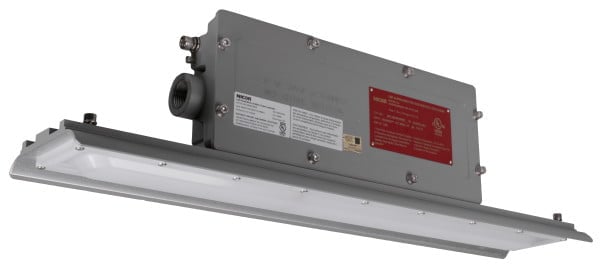

NICOR – XPL1B080U50GR Proteus 80 Watt LED Linear Light

Description Features Class I Division 2, Group A, B, C, D Class II Division 1, Group E, F, G, Class II Division 2, Group F, G Class III UL 844 Hazardous Location UL 1598 Wet Location UL 1598A Marine UL 8750 LED Safety IP 66 Rated Housing: Die-Cast Aluminum *Copper Free 80 Watts 100-240/277 VAC Polyester Powder Coat Finish Lens: Polycarbonate Meets FCC Part 15, Subpart B, Class B standards for conducted and radiated emissions Construction Heavy-duty die-cast copper-free aluminum housing Stainless steel hardware 3/4” NPT threaded conduit wire access ports Weight – 2’: 11.0 lbs; 4’: 15.2 lbs. RoHS Compliant Captive bolts on the power supply cover Optical System Anodized aluminum reflector assembly with polycarbonate lens Diffused polycarbonate lens optional** CCT: 5000K, 4000K, or 3000K** CRI: 70 Electrical Input voltage of 100-240/277VAC The input frequency of 50/60Hz Power Factor of ≥.95 THD <20% 10kA surge protector Reported L70 hours >50,000 Environmental Ambient Operating Temperature -40°F (-40°C) ~ 122°F (50°C) C1D2 T3C at 122°F (50°C) C2D1 T4A at 122°F (50°C) Ambient Operating Humidity of 10%~90% RH Finish RAL 7037 (Dusty Gray) polyester powder coat Installation Prewired with 2’ flying leads Allows wiring without opening the power supply cover Integrated 3/4” NPT threaded hub for pendant mount Universal trunnion bracket available, with legacy bolt pattern (drill rigs) Pipe mount kit available For installations where power surge may be possible, NICOR recommends installing additional surge protection at the electrical distribution panel Warranty 5-year limited system warranty standard The warranty does not cover product failure due to an overvoltage event (power surge) Specifications Primary Component MaterialDie-Cast Aluminum (Copper Free) Product ColorDusty Gray FinishPolyester Powder Coat Product Length (in)23.6 Voltage100-240/277VAC Wattage40.9 Lumen Output5533 Lumens Per Watt135.3 Color Temperature (CCT)5000K CRI72 Beam Angle120° ( /- 10%) Spacing Criteria1.46 120V Current (A)0.341 277V Current (A)0.148 Power Factor≥.95 Total Harmonic Distortion (%)less than 20% Operating Temperature-40°F to 140°F (-40°C to 60°C) Product Lifespan (Hours)greater than 50,000 Warranty (Years)5 Certifications: Proteus Equipment Certification Requirements  Other Resources: Proteus Spec Sheet Installation Instruction Brochure More Options For you: NICOR – XPQ1B150U50GRP Titan LED Flood Light 150 Watt NICOR – XPR1B065U50GRM Eres Multi Mount LED Area Light 65 Watt
